Removing the
optional board
Mounting the
optional board
Mounting the option
card holder
Siemens AG 6SE7087-7JP50
SIMOVERT MASTERDRIVES
♦ Undo the two optional board screws by about one turn each.
♦ Loosen the connection between the system connector and the
board so as to prevent any mechanical tension arising when the
screws are fully unscrewed.
♦ Take out the optional board screws and remove the board.
♦ Insert the optional board from the behind the broken-out slot conver
( ) until the position of the 64-pole system connector on the
electronic board corresponds with the position of the socket.
♦ Insert the option board into the 64-pole system connector on the
electronic board (
♦ Screw the optional board tight at the fastening points in the front
section of the optional board with the two screws (
Slot C

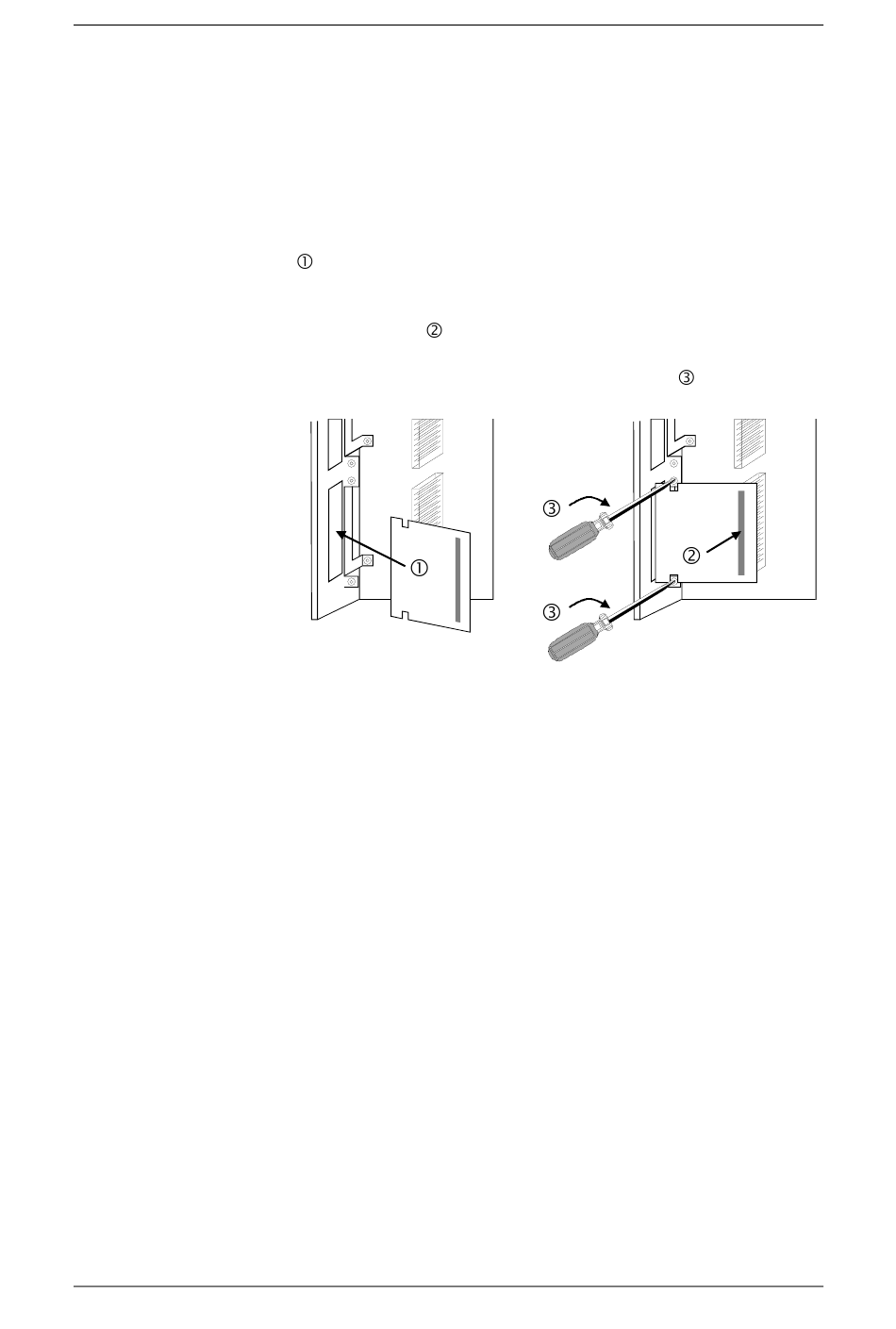

Fig. 5-10 Installing the optional board
Place the option card holder horizontally on the rear edge of all fitted
option cards and tighten the previously removed screws at the fixing
points.
