3 Assembly
Quick-release Front Wheel with Rounded Fender Brace
If you have a quick-release front wheel with rounded fender
brace attach the fender first.

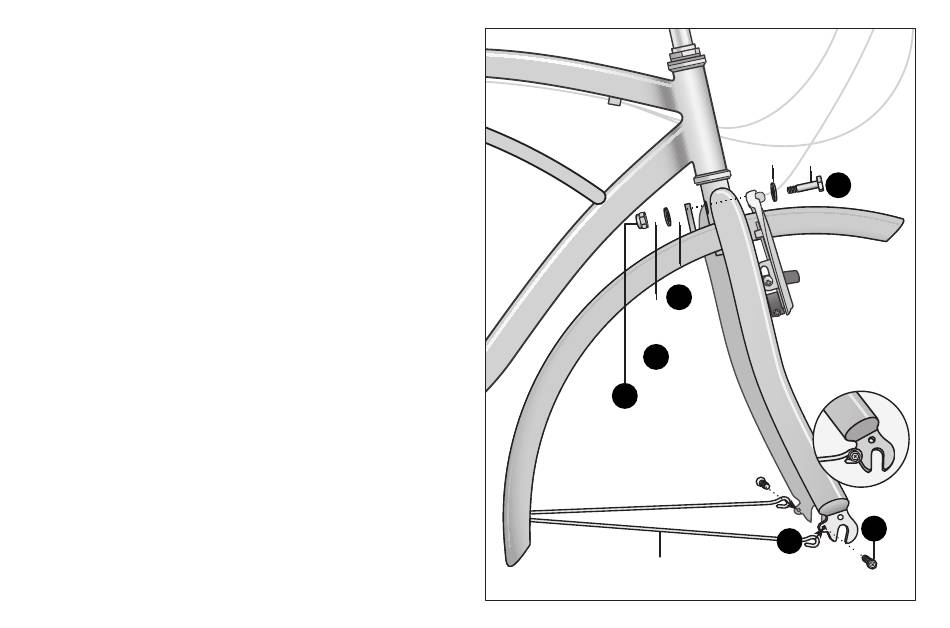

❶ Position the front fender so the fender bracket is
on the inside of the frame. The fender is attached to the fork
crown. Align the hole in the bracket to the hole in the fork
crown. Figure 3.11
❷ Place a washer on the screw and insert the screw through
the holes in the bracket and fork crown.
❸ Place a washer on the screw.
❹ Place the hex nut on the screw and tighten.
❺ Place the rounded fender braces over the small hole on the
back of the fork dropout.
❻ Insert the small screws through the rounded fender brace
and screw into the fork dropout.
❼ Position the fender and loosely tighten the screws.
❽ Attach the wheel and firmly fasten the fender in place.
22
Washer
1
Fender
bracket
3
Washer
4
Hex nut
Rounded fender brace
Screw
2
6
5
Figure 3.11
