3 Assembly
ATTACH THE FRONT FENDER AND FRONT WHEEL
There are two types of front wheel and fender assemblies;
nutted wheel with flat fender brace and quick-release with
rounded fender brace. Note: Quick-release wheels may be on
both the front and rear wheels or just one. Also, some tire tread
patterns have a direction, so compare your front tire and rear
tire of the bicycle so that both tread patterns face the same way.
Nutted Front Wheel with Flat Fender Brace
❶ Position the front fender so the fender bracket is
on the inside of the frame. The fender is attached to the
fork crown. Align the hole in the bracket to the hole in the
fork crown. Figure 3.7
❷ Place a washer on the screw and insert the screw through
the holes in the bracket and fork crown.
❸ Place a washer on the screw.
❹ Place the hex nut on the screw and tighten.
20
Washer
1
Fender
bracket
3
Washer
4
Hex nut
Flat fender brace
Screw
2

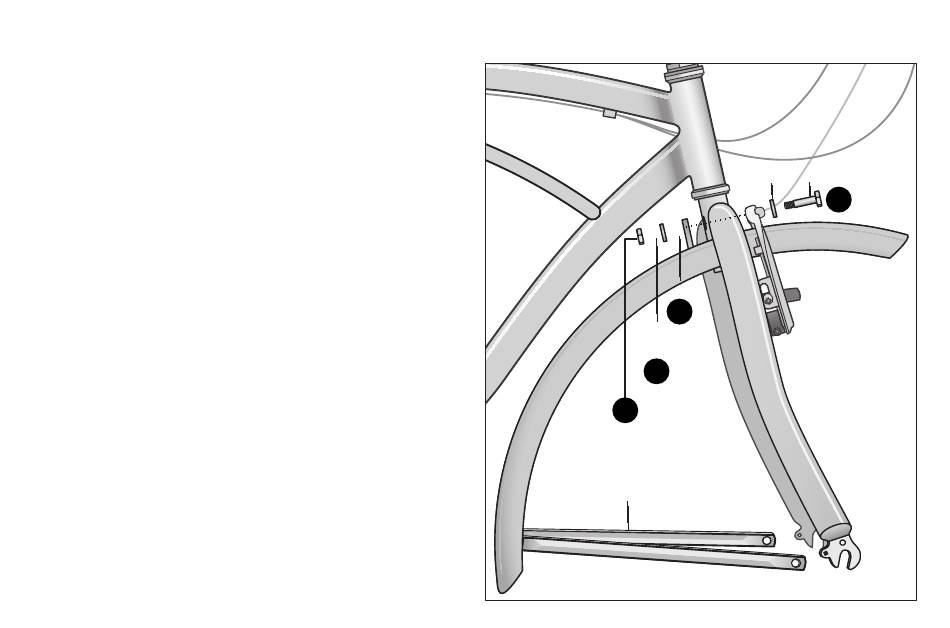

Figure 3.7
