● Only allow trained persons to use the power tool. Apprentices may only use
the power tool when they are over 16, when this is necessary for their training
and when they are supervised by a trained operative.
● Children and persons who, due to their physical, sensory or mental abili-
ties or lack of experience and knowledge are unable to operate the power
tool safely may not use this power tool without supervision or instruction
by a responsible person. Otherwise there is a risk of operating errors and
injuries.
● Check the power cable of the power tool and, if applicable, extension leads
regularly for damage. Have these renewed by qualifi ed experts or an authorised
REMS customer service workshop in case of damage.
● Only use approved and appropriately marked extension leads with a suffi -
cient cable cross-section. Use extension leads up to a length of 10 m with
cable cross-section 1.5 mm², from 10 – 30 m with cable cross-section 2.5 mm².
NOTICE NOTICE
● Make sure that REMS cooling lubricants are not disposed of undiluted in
the drain system, ground water or ground. Unused lubricant must be delivered
to the responsible disposal company. Waste code for cooling lubricants containing
mineral oil (REMS Spezial) 120106, for synthetic materials (REMS Sanitol)
120110. Observe the national regulations.
Explanation of symbols
WARNING WARNING Danger with a medium degree of risk which could result in
death or severe injury (irreversible) if not heeded.
CAUTION CAUTION
Danger with a low degree of risk which could result in minor
injury (reversible) if not heeded.
NOTICE NOTICE
Material damage, no safety note! No danger of injury.
Read the operating manual before starting
Use eye protection
Use a respirator
Use ear protection
Use hand protection
Power tool complies with protection class II
Environmentally friendly disposal
CE conformity mark

1. Technical data

Use for the intended purpose
WARNING WARNING
REMS Turbo K is intended for sawing steel, stainless steel, nonferrous metal, light
metal, plastic etc. up to a strength of approx. 1,000 N/mm².
REMS Turbo Cu-INOX is intended for sawing stainless steel pipes, copper pipes
and other materials as well as for removing burr from the outside and inside of the
pipes with REMS REG 10 – 54 E.
All other uses are not for the intended purpose and are prohibited.
1.1. Scope of Supply
REMS Turbo Cu-INOX: Tubular circular sawing machine with universal
double vice without saw blade, ring spanner,
Allen key, operating instructions.
REMS Turbo K: Universal-metal circular sawing machine with
automatic cooling-lubricating device without saw
blade, ring spanner, Allen key, 1 fi lling of REMS
Spezial, operating instructions.
1.2. Article numbers
REMS Turbo K with automatic cooling lubricant unit
REMS Turbo Cu-INOX circular pipe saw for dry-sawing
REMS universal circular metal saw blade HSS, 225×2×32, 120 teeth 849700
REMS circular metal saw blade HSS especially for stainless
steel pipes, fi ne toothing, 225×2×32, 220 teeth
REMS circular metal saw blade HSS-E (cobalt alloyed),
especially for stainless steel pipes, fi ne toothing,
225×2×32, 220 teeth. Very long life.
Ring spanner WAF 27/17
Electronic speed controller (REMS Turbo K)
Allen-key
REMS Herkules 3B stock support
REMS Herkules Y
REMS Jumbo
REMS Jumbo E
Base frame
8
Subframe, mobile
Clamping insert for thin-walled pipes (REMS Turbo K)
Cooling lubricants
REMS CleanM
REMS REG 10 – 54 E

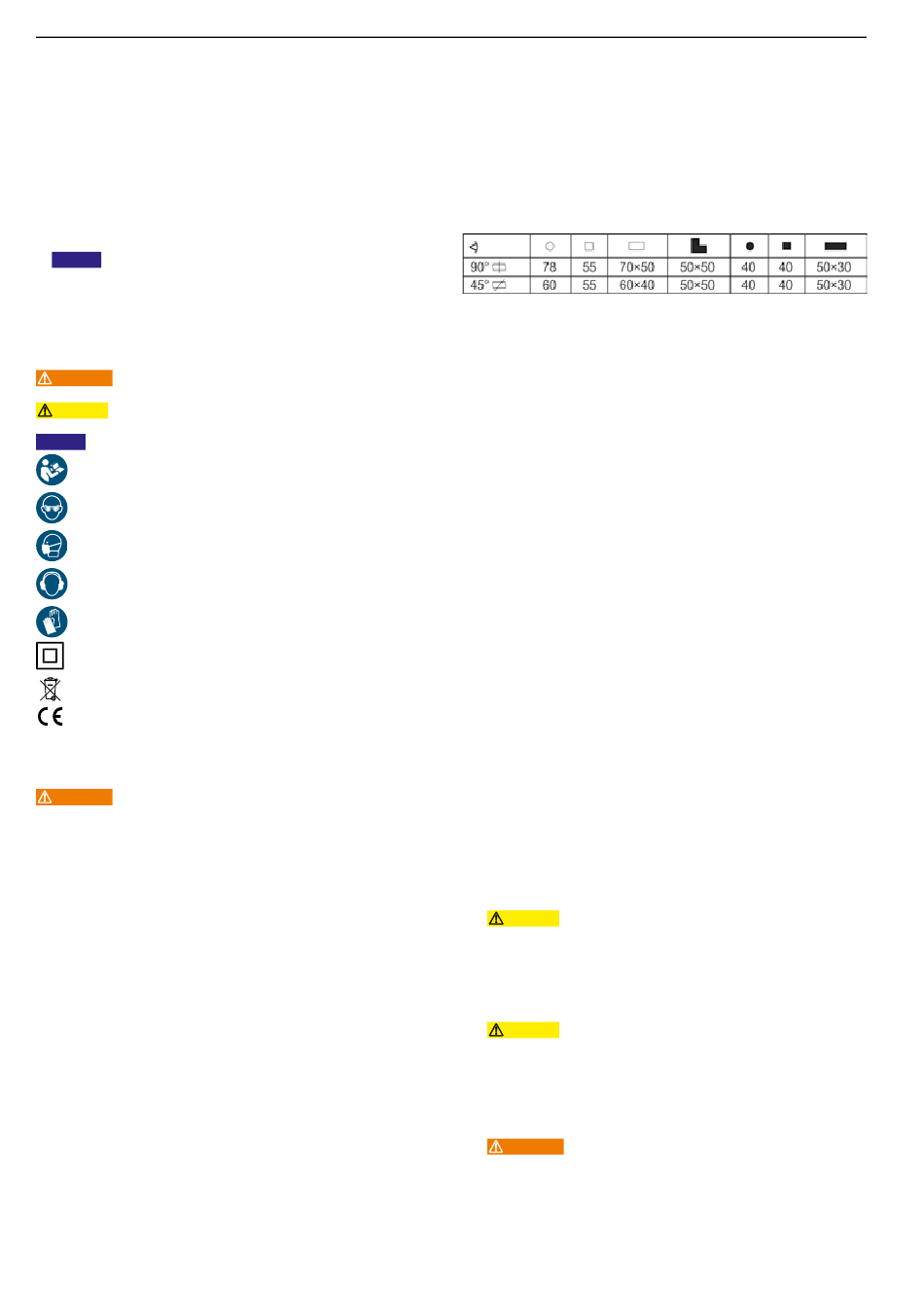

1.2.1. Working range REMS Turbo K
Sawblade
Max. cutting depth
Cross-sections:
Materials:
Right-angled cuts and bevel cuts up to 45°
1.2.2. Working range REMS Turbo Cu-INOX
Sawblade
Stainless steel pipes, carbon steel pipes, copper pipes
and other materials
1.3.1. Speed/cutting rate REMS Turbo K
Sawblade speed, no-load
Sawblade speed, full-load
Cutting rate at full load
1.3.2. Speed/cutting rate REMS Turbo Cu-INOX
Sawblade speed, no-load
Sawblade speed, full-load
Cutting rate at full load
1.4.1. Electrical data REMS Turbo K
230 V~; 50 – 60 Hz; 1200 W; 5.7 A or
110 V~; 50 – 60 Hz; 1200 W; 11.4 A;
fuse (mains) 10 A (B), intermittent operation S3 20% (2/10 min), all-insulated,
interference-suppressed.
1.4.2. Electrical data REMS Turbo Cu-INOX
230 V; 50 – 60 Hz; 500 W; 2.5 A or 110 V; 50 – 60 Hz; 500 W; 5.0 A;
fuse (mains) 10 A (B), intermittent operation S3 20% (2/10 min), all-insulated,
interference-suppressed.
1.5. Dimensions
L × W × H:
1.6. Weights
REMS Turbo K
REMS Turbo Cu-INOX
1.7. Noise data
Workstation-related emission data
Sound capacity level
1.8. Vibrations
Weighted effective value of acceleration
REMS Turbo Cu-INOX
REMS Turbo K
The indicated weighted effective value of acceleration has been measured
against standard test procedures and can be used by way of comparison with
another device. The indicated weighted effective value of acceleration can also
be used as a preliminary evaluation of the exposure.
CAUTION CAUTION
The indicated weighted effective value of acceleration can differ during operation
from the indicated value, dependent on the manner in which the device is used.
Dependent upon the actual conditions of use (periodic duty) it may be necessary
to establish safety precautions for the protection of the operator.
2. Commissioning
CAUTION CAUTION
Do not carry the machine by the motor handle, but with both hands on
849007
the stand.
849006
Use the recommended carrying position (22) to transport the machine. Please
note that the centre of gravity of the machine is not in the middle. The machine
can tip over and fall.
849703
2.1. Electrical connection
WARNING WARNING
849706
Note the mains voltage! Before connecting the tubular circular sawing machine
849112
or universal metal sawing machine, check whether the voltage given on the
565051
rating plate corresponds to the mains voltage. On building sites, in a wet envi-
074005
ronment, indoors and outdoors or under similar installation conditions, only
120120
operate the circular sawing machine on the mains with a fault current protection
120130
switch (FI switch) which interrupts the power supply as soon as the leakage
120200
current to earth exceeds 30 mA for 200 ms.
120240
849315
see REMS catalogue
steel, stainless steel, non-ferrous metal, light metal,
plastic etc. up to a strength of ap p rox. 1000 N/mm²
425 × 490 × 600 mm (16¾" × 19⅓" × 23⅔")
eng
849310
849170
140119
113835
225 × 2 × Ø 32 mm
78 mm
pipe, section, solid
225 × 2 × Ø 32 mm
Ø ≤ 76 mm
115 rpm
73 rpm
52 m/min
60 rpm
40 rpm
28 m/min
22 kg (48 lbs)
17 kg (37 lbs)
90 dB (A)
105 dB (A)
12.2 m/s²
20.1 m/s²
