4.11 TRACTION PEDAL _________________________________________________________

The traction pedal must be adjusted so the pump is at full
stroke when the pedal is fully depressed in the forward
position.
1. Make sure return arm (K-Figure 4H) on pump is
adjusted to neutral, Section 4.7.
2. Push traction pedal forward (I) until it touches floor
panel and hold in this position.
3. Adjust turn buckle (J) until you feel the return arm
hit the internal stop in pump. Backoff rod 2-3 turns
from this position. This ensures that the traction
pedal bottoms out before the return arm.
ADJUSTMENTS
I
J
4
HR019

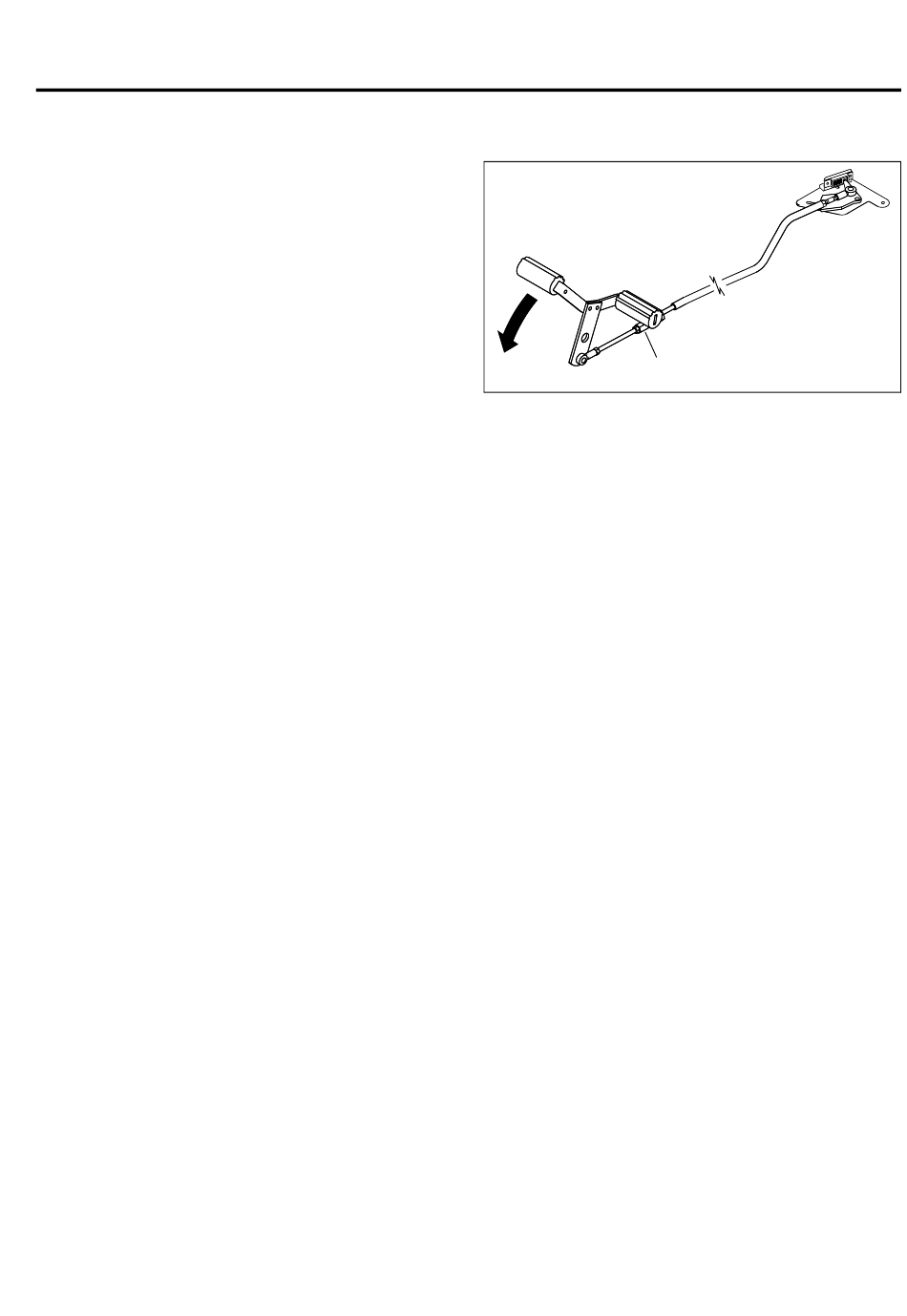

Figure 4L
GB-19
