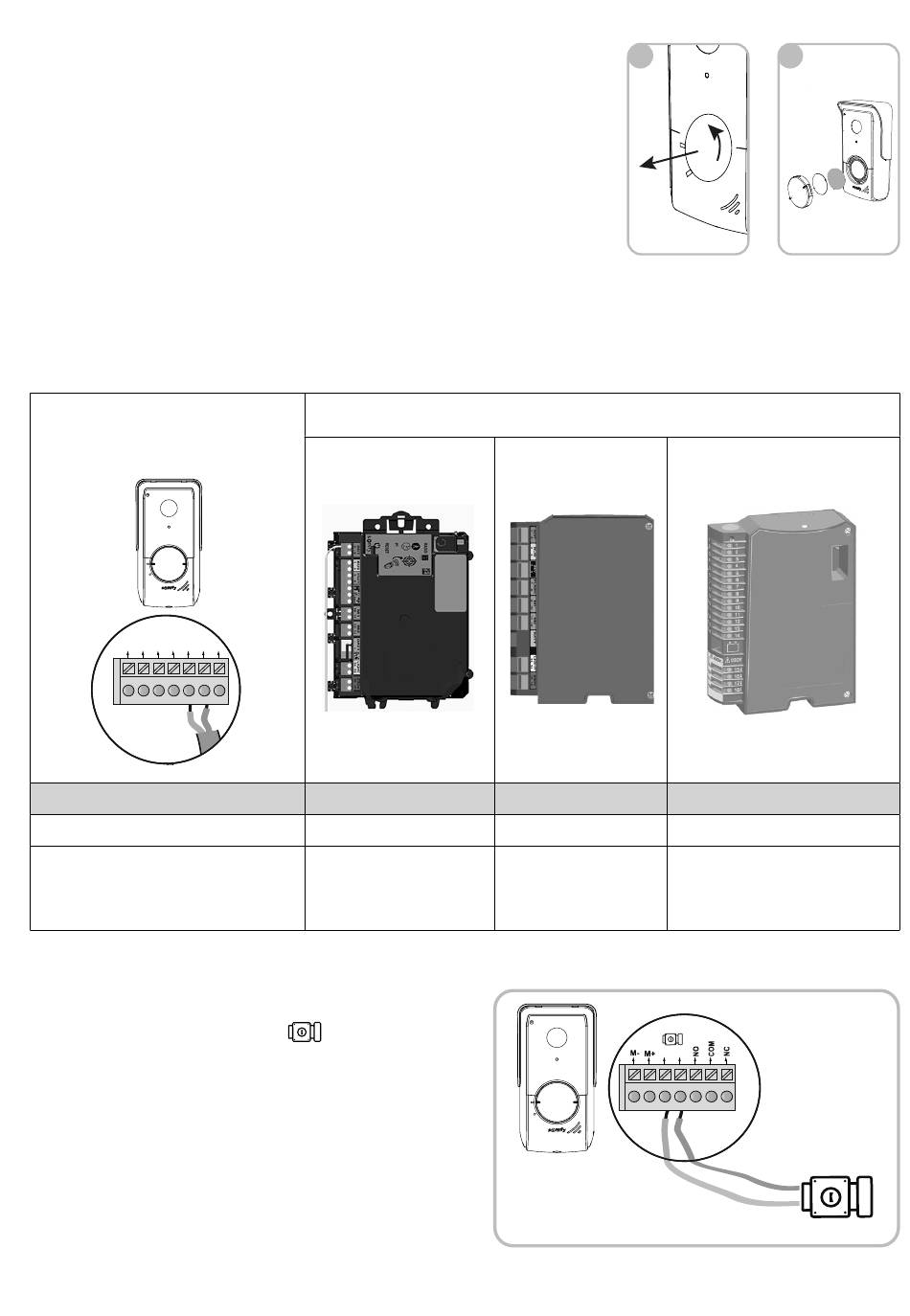

3.2 Fitting the name tag
[1]. Turn the call button anticlockwise until the engraved marking then remove.
[2]. Remove the round to access the name plate label.
[3]. Write your name on the white label using a permanent marker, then replace the
label and its membrane in their housing.
[4]. Remount the call button on the door station using the marks, and then turn
clockwise until it locks.
3.3 Connecting the door station
3.3.1 To a Somfy gate drive
[1]. Disconnect the motor from the mains power supply.
[2]. Remove the cover from the control cabinet or from the motor containing the electronics.
[3]. Connect the door station dry contact output (COM and NO) to the drive electronics. It is preferable to refer to the gate drive
instructions to connect the door station to the key contact input on the drive.
Door station
M- M+ L- L+ NO COM NC
Connect...
COM
NO
Note: To connect the door station to another brand of gate drive, please refer to the installation guide for that drive.
3.3.4 To an electric latch/lock
Connect the door station output
accordance with the diagram.
Observe the +/- polarity if indicated in the latch/lock instructions.
4
to the START terminals
5
6
to the latch/lock in
1
Somfy drive electronics
to the BUS terminals
3
4
L- L+
* not provided
2
to the numbered terminals
3
5 (for complete opening)
or
6 (for pedestrian opening)
12V 800 mA max
