INSTALLATION INSTRUCTIONS

Verify that all components of the unit are clean and in good condition prior to operation. Be sure that the
insulation on all cables, electrode holders, and power cords is not damaged. Inspect compressed air system,
fuel system and electrical components for signs of damage, deterioration, weakness or leakage. Always repair
or replace damaged components before operating the unit. Always keep panels, shields, etc. in place when
operating.
maintenance.
coolers. Do not use unit to lift other attached equipment.
Picking the Location
Selecting the proper location can significantly increase performance, reliability and life of the unit. For best results
locate the unit in an environment that is clean and dry. Dust and dirt in the unit retain moisture and increase wear
of moving parts.
• There are mounting holes in the bottom of the open frame to permanently mount the unit if desired. The bolt
pattern is 15 inch x 23 inch and will accept 1/2 inch bolts.
• Store electrodes in a clean, dry location with low humidity to preserve the flux coating.
Frame
Frame

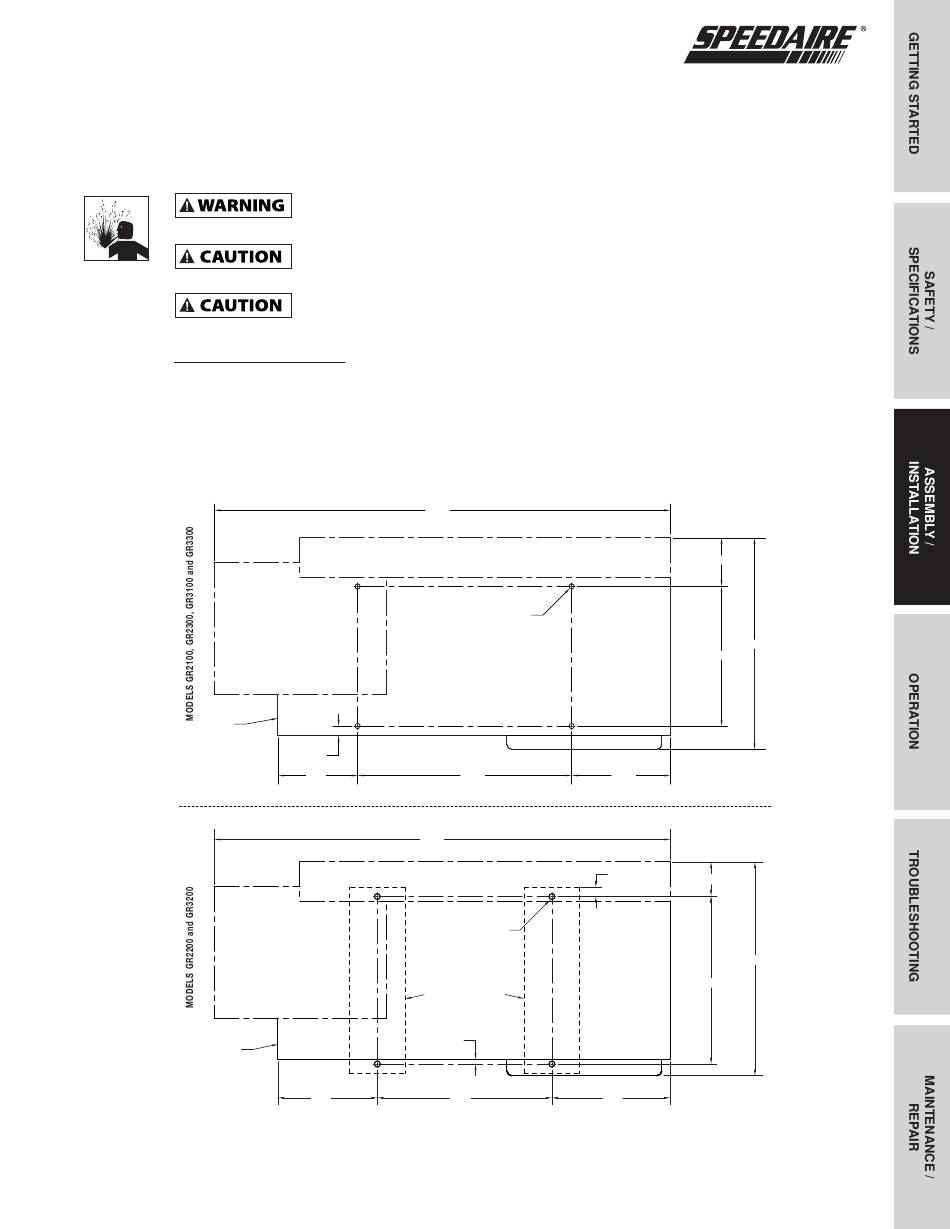

Figure 3 - Mounting schematics (NOTE: all measurements are in inches)
Disconnect, tag and lock out power source then release all pressure
from the system before attempting to install, service, relocate or perform any
Do not lift or move unit without appropriately rated equipment. Be sure the unit is
securely attached to lifting device used. Do not lift unit by holding onto tubes or
Never use the wood shipping skids for mounting the compressor.
49.00
Belt Guard
Engine
1.00
9.77
49.00
Belt Guard
Engine
Lower Frame Mounting Feet
0.50
10.67 18.76
Ø .56
4 Mounting Holes
for a 1/2 inch Bolt
Gauge Guard
23.00 9.38
4 X 1.00
Ø .64
4 Mounting Holes
for a 1/2 inch Bolt
Gauge Guard
12.72
5.22
22.97
15.00
3.72
22.97
18.00
9
