Speedaire 1WD87 Manuel D'utilisation Et Liste De Pièces

Operating Instructions & Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
Speedaire ®
Two-Stage Air Compressors
Description
Speedaire compressors are two-stage pressure lubricated heavy-duty
industrial units designed for 80%/ON 20%/OFF duty cycle.
Maximum operating pressure is 175 PSI. Each model is equipped
with ASME air receiver, ASME pressure relief valve, three phase
electric motor and pressure switch for start/stop control. In
addition, each model is equipped with a needle valve, pilot valve
and head unloaders to provide continuous run capabilities.
Specifications
Volts,
Model HP
Phase
1WD87 10 200, 3
1WD88 10 230/460, 3
1WD90 15 230/460, 3
(*) H = Horizontal
Form 5S5937
10 & 15 HP
Simplex Horizontal

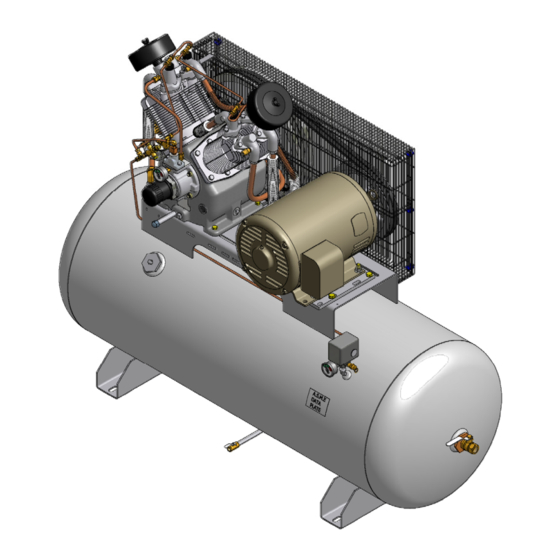

MODEL 1WD87
Free Air
Amp
CFM @ Cap.
Draw
175 psi (Qts.)
30.8 34.8
26.8/13.4 34.8
40.6/20.3 49.0
Printed in U.S.A.
02571
0308/044/VCPVP
Oil Tank
Tank Tank
Cap.
Style * Outlet
(Gal.)
4 120 H 3/4 NPT
4 120 H 3/4 NPT
4 120 H 3/4 NPT
Ver: 03 03/11/2011
1WD87, 1WD88, 1WD90
C296-D
(Ref. Drawing)
Maint.
Kit Pump
1WF50 1WD24
1WF50 1WD24
1WF50 1WD24
E
N
G
L
I
S
H
E
S
P
A
Ň
O
L
F
R
A
N
Ç
A
I
S
