Description
3.1.2

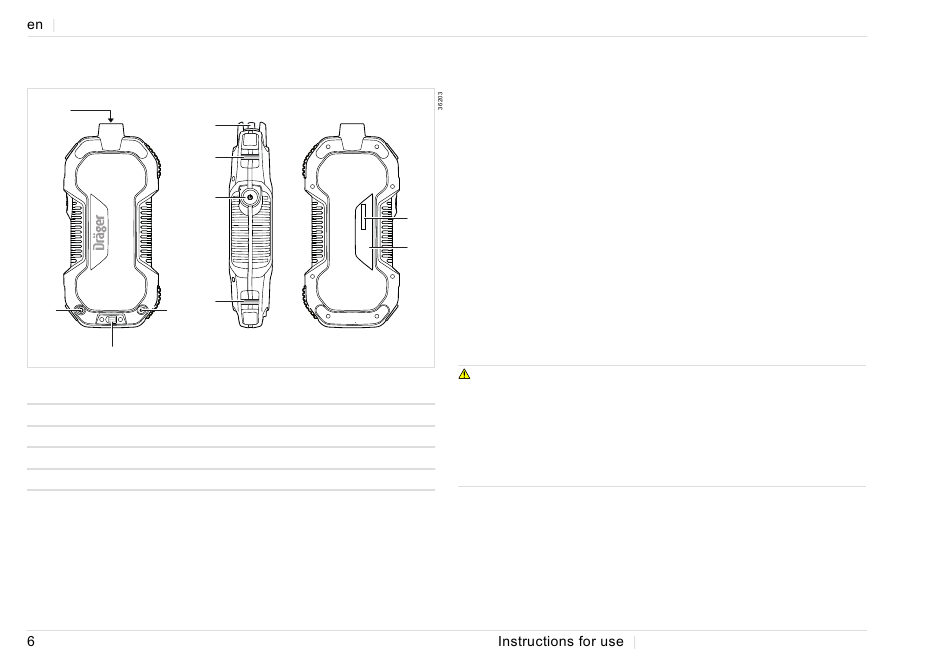

Sensor unit

1
5
6
7
6
2 3
4
1 Gas inlet (sample)
2 Gas outlet (M5 thread)
3 Gas inlet (M3 thread)
4 Charger plug (magnetic)
5 Water and dust filter
8
9
6 Mount for carrying strap
7 On/off button and status LED
8 Serial number
9 Name plate
3.1.3

Control unit

The control unit is an explosion-proof ecom Smart-Ex
Other models and manufacturers are not approved for communication with the
sensor unit and the installation of the mobile app.
The control unit connects to the sensor unit via Bluetooth 4.0 (Bluetooth Low
Energy). The mobile app installed on the control unit enables the control of the
measuring device and the evaluation of the received measurement data.
A software configuration ("Launcher"), which hides several functions, other
mobile apps, and settings, is implemented on the control unit. This hides the
Android settings that can impair the gas detector's functionality (e.g. turning off
Bluetooth communication, deleting the mobile app, and minimizing the screen
brightness). However, the Launcher can still be uninstalled, if necessary, and
individual mobile apps can be visualized.
For more information, see the technical manual.
The Dräger App Store as well as the Dräger X-pid xx00 mobile app are pre-
installed on the control unit upon delivery. The gas detector is therefore ready
for operation without additional software installation or configuration. Check for
possible software updates via the Dräger App Store.
For more information, see the technical manual.
WARNING
Risk of explosion!
For use in explosion-hazard areas, the sensor unit and control unit generally
need to be taken with you.
®
► The supplied ecom Smart-Ex 01 control unit is approved for use in
explosion-hazard areas.
► Pay attention to the approval and safety information for the ecom Smart-Ex
01. The approvals for the control unit and the sensor unit differ.
®
01 Android smartphone.
®
