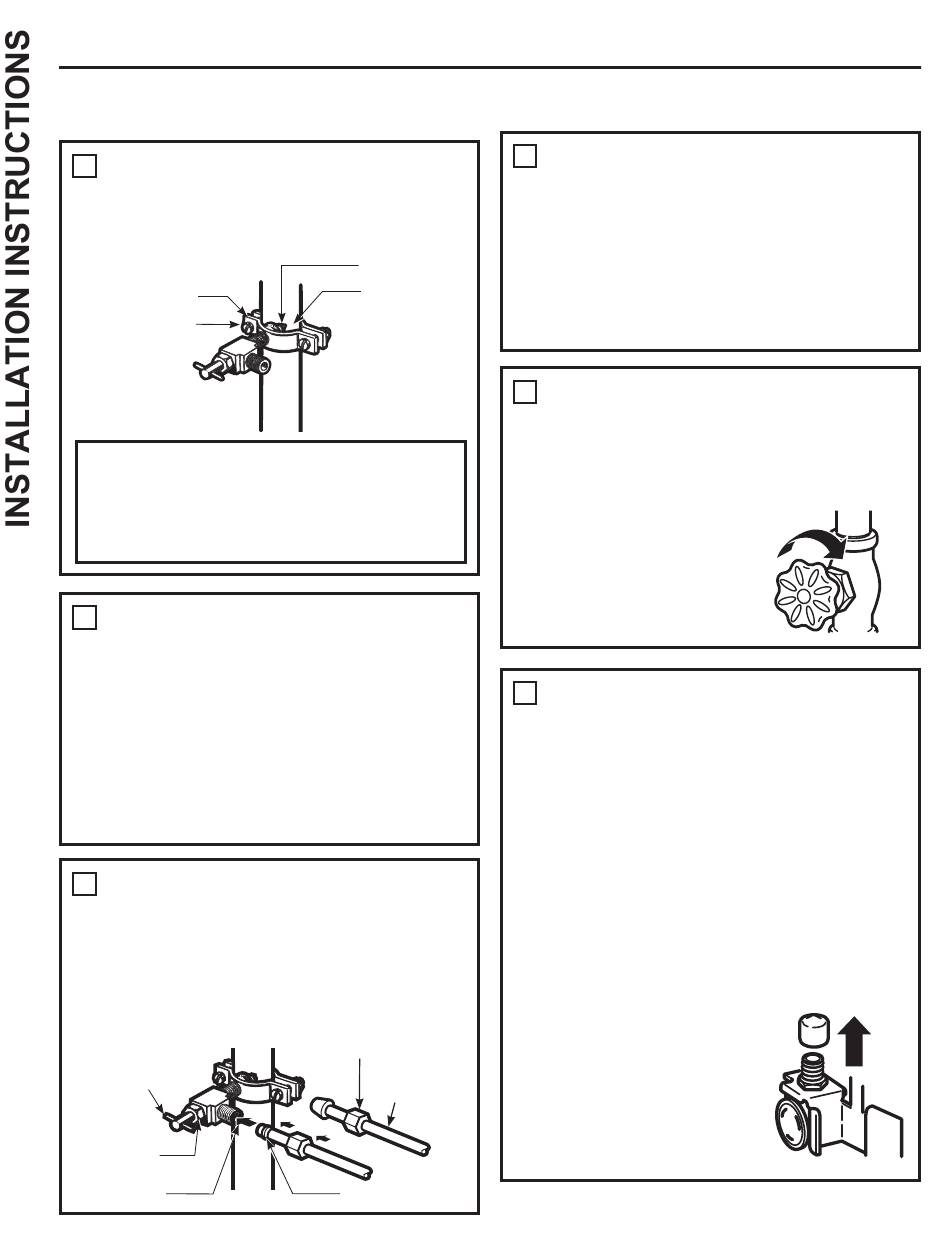

INSTALLING THE WATER LINE (Continued)
TIGHTEN THE PIPE CLAMP
5
Tighten the clamp screws until the sealing
washer begins to swell.
NOTE: Do not overtighten or you may crush
the tubing.
Pipe Clamp
Clamp
Screw
NOTE: Commonwealth of Massachusetts
Plumbing Codes 248CMR shall be adhered to.
Saddle valves are illegal and use is not permitted
in Massachusetts. Consult with your licensed
plumber.
ROUTE THE TUBING
6
Route the tubing between the cold water line and
the refrigerator.
Route the tubing through a hole drilled in the wall
or floor (behind the refrigerator or adjacent base
cabinet) as close to the wall as possible.
NOTE: Be sure there is sufficient extra tubing
(about 8 feet [244 cm] coiled into 3 turns of about
10" [25 cm] diameter) to allow the refrigerator to
move out from the wall after installation.
CONNECT THE TUBING TO
7
THE VALVE
Place the compression nut and ferrule (sleeve)
for copper tubing onto the end of the tubing and
connect it to the shutoff valve.
Make sure the tubing is fully inserted into the
valve. Tighten the compression nut securely.
Saddle-Type
Shutoff Valve
Packing Nut
Outlet Valve
24
Installation Instructions
Washer
Inlet End
Compression Nut
SmartConnect
™
Tubing
Ferrule (sleeve)
CONNECT THE TUBING TO
7
THE VALVE (Continued)
For plastic tubing from a SmartConnect™
Refrigerator Tubing kit, insert the molded end
of the tubing into the shutoff valve and tighten
compression nut until it is hand tight, then tighten
one additional turn with a wrench. Overtightening
may cause leaks.
FLUSH OUT THE TUBING
8
Turn the main water supply on and flush out the
tubing until the water is clear.
Shut the water off at the water valve after about
one quart (1 liter) of water has been flushed
through the tubing.
CONNECT THE TUBING TO THE
9
REFRIGERATOR
NOTES:
● B efore making the connection to the
refrigerator, be sure the refrigerator power cord
is not plugged into the wall outlet.
● I f your refrigerator does not have a water filter,
we recommend installing one if your water
supply has sand or particles that could clog the
screen of the refrigerator's water valve. Install it
in the water line near the refrigerator. If using
SmartConnect™ Refrigerator Tubing kit, you
will need an additional tube (WX08X10002)
to connect the filter. Do not cut plastic tube to
install filter.
Remove the plastic flexible
cap from the water valve
(refrigerator connection).
49-60769
