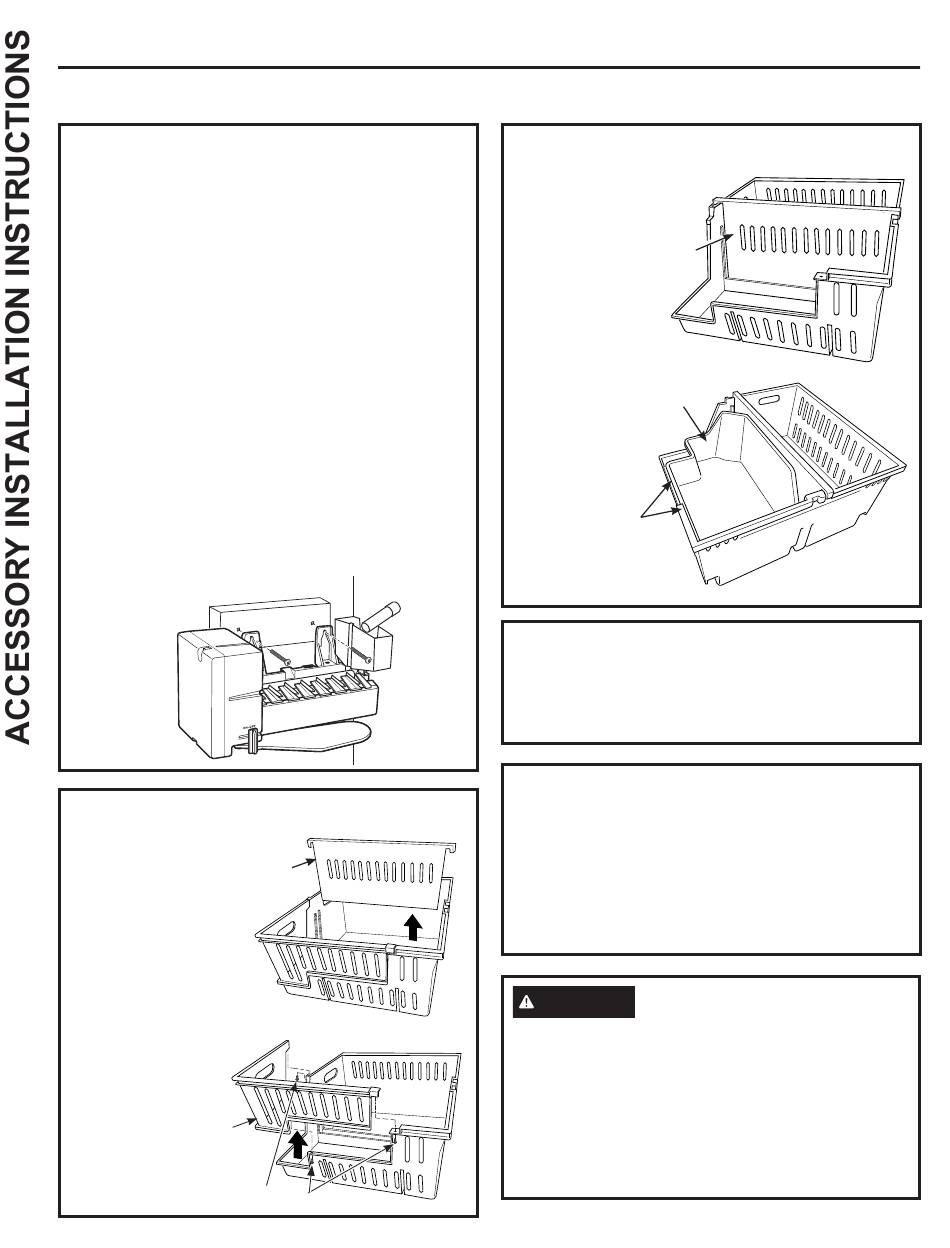

INSTALLING ICEMAKER IM4D (CONT.)
MOUNT THE ICEMAKER
● F or easy installation, remove the upper freezer
basket.
● L ift the icemaker so the fill tube assembly fits in
the fill cup opening. Screw the icemaker into the
supporting bar on the left side upper wall in the
freezer.
Make sure:
● The power cord is still firmly in the socket.
● T he fill tube assembly extends into the fill cup
opening at the back of the icemaker. (Check
the rear of the refrigerator to make sure the fill
tube has not been pushed out of the back of the
refrigerator).
● T he icemaker mounting screws should be located
in the uppermost position of the mounting slots on
the icemaker bracket.
● T he icemaker is level.
● T he icemaker power switch is in the OFF position.
SECURELY TIGHTEN THE ICEMAKER MOUNTING
SCREWS.
INSTALL THE ICE BUCKET
● R emove the middle
divider from the top
freezer drawer.
● R emove the
L-shaped insert
by unscrewing the
3 screws on each
end. Insert the
"buttons"
Insert
provided into
the holes in the
ice bucket.
20
Accessory Installation Instructions
Middle
Divider
Screws
INSTALL THE ICE BUCKET (Cont,)
● I nstall the middle
divider into the
right slot.
Middle
Divider
● P lace the ice
Ice
bucket on the
Bucket
2 bottom ribs in
the left side of
the drawer.
Ribs for Ice
Bucket (under
ice bucket)
ATTACH WARRANTY LABEL
A label is provided with this kit to record the date of
installation for warranty purposes. Apply it to the back
of the refrigerator.
KEEP THE MANUAL
The warranty for the icemaker is printed in the
manual that came with your icemaker kit. Keep
this manual with your Refrigerator Owner's
Manual.
The icemaker installation inside the freezer is now
complete. Continue to the Water Valve Assembly
section.
CAUTION
Do not place fingers or hands in the automatic
icemaking mechanism while the refrigerator is
plugged in. This will help protect you from possible
injury.
It will also prevent interference with moving parts of
the ejector mechanism and the heating element that
releases the cubes, located on the bottom of the
icemaker.
49-60769
