DEA SYSTEM ANGOLO 24/1 Notice D'emploi page 19

Positioning of leaf M1
Positioning of leaf M2
Memorization of the motors' stroke
Deletion of the radio receiver memory
Transmitters memorizing
Search and deletion of a transmitter
Resetting of default parameters
PARAMETER DESCRIPTION
Type of coding of the radio receiver
Channel selection and linking to "start" and "pedestrian" inputs
Motors' speed during normal stroke (calculated as % of max speed)
Motors' speed during slow-down phase (calculated as % of max speed)
Slow-down duration of M1 (expressed as % of total stroke)
Slow-down duration of M2 (expressed as % of total stroke)
Motor 1 force while opening
Motor 1 force while closing
Motor 2 force while opening
Motor 2 force while closing
Selection of type of external safety device: rib / barrier. If the ribs are activated the movement
direction of both motors is inverted; during slow-down phase, the activation is interpreted as
stroke end. If the barrier is activated the movement of both motors is stopped.
Time of automatic closing (expressed in sec). If = 0 the automatic closing is deactivated
Time of pre-flashing (expressed in sec)
Time of phase displacement in opening (expressed in sec)
Time of phase displacement in opening (expressed in sec)
Collectivity function: if it is activated it deactivates both start and pedestrian inputs for the whole
duration of automatic opening and closing
Ram blow function: if it is activated, it pushes the motors close for one second before each
opening movement, so as to ease the releasing of any electric lock
Operating program: reversal (start->open, start->close, start->open ...),
>open, start->stop, start-close...)
Photocell function even while opening: if it is activated, the photocell stops the movement while
opening until the obstacle is removed. In any case it reverses the direction of movement while closing
Clean contact operation: - If = 0, open gate warning light, the contact is always closed when the
gate is opened, it opens again only when the closing movement is completed - If different from 0,
courtesy light, the contact is closed during every movement, it opens again when the motor stops
according to a pre-settable delay (expressed in sec)
Short reversal at end of stroke: when each leaf reaches the end of stroke, it reverses shortly the
movement so as to "release" the mechanical stress due to the leaf's pressure on the end of stroke itself.
One motor function: if it is activated, the control board controls motor 1 only 1
Unused parameter
Unused parameter
Unused parameter
Unused parameter
Unused parameter
The default value, set by manufacturer at the factory, is written in bold and underlined.
1
Column reserved to the installer to fill in with the automation personalised parameters.
2
Inactive channel.
3
Operating instructions and warnings
PROCEDURE DESCRIPTION
SETTABLE VALUES
HCS fixed part only
HCS rolling code
HT12E dip switch
pedes-
start
trian
CH1 CH2
CH1 CH3
CH1 CH4
CH2 CH1
CH2 CH3
CH2 CH4
CH3 CH1
CH3 CH2
safety ribs
photoelectric barriers, if used
deactivated
activated
deactivated
activated
step-by-step (start- inversion
step-by-step
Photocell activated only in closing
Photocell activated also in opening
deactivated
activated
deactivated
activated

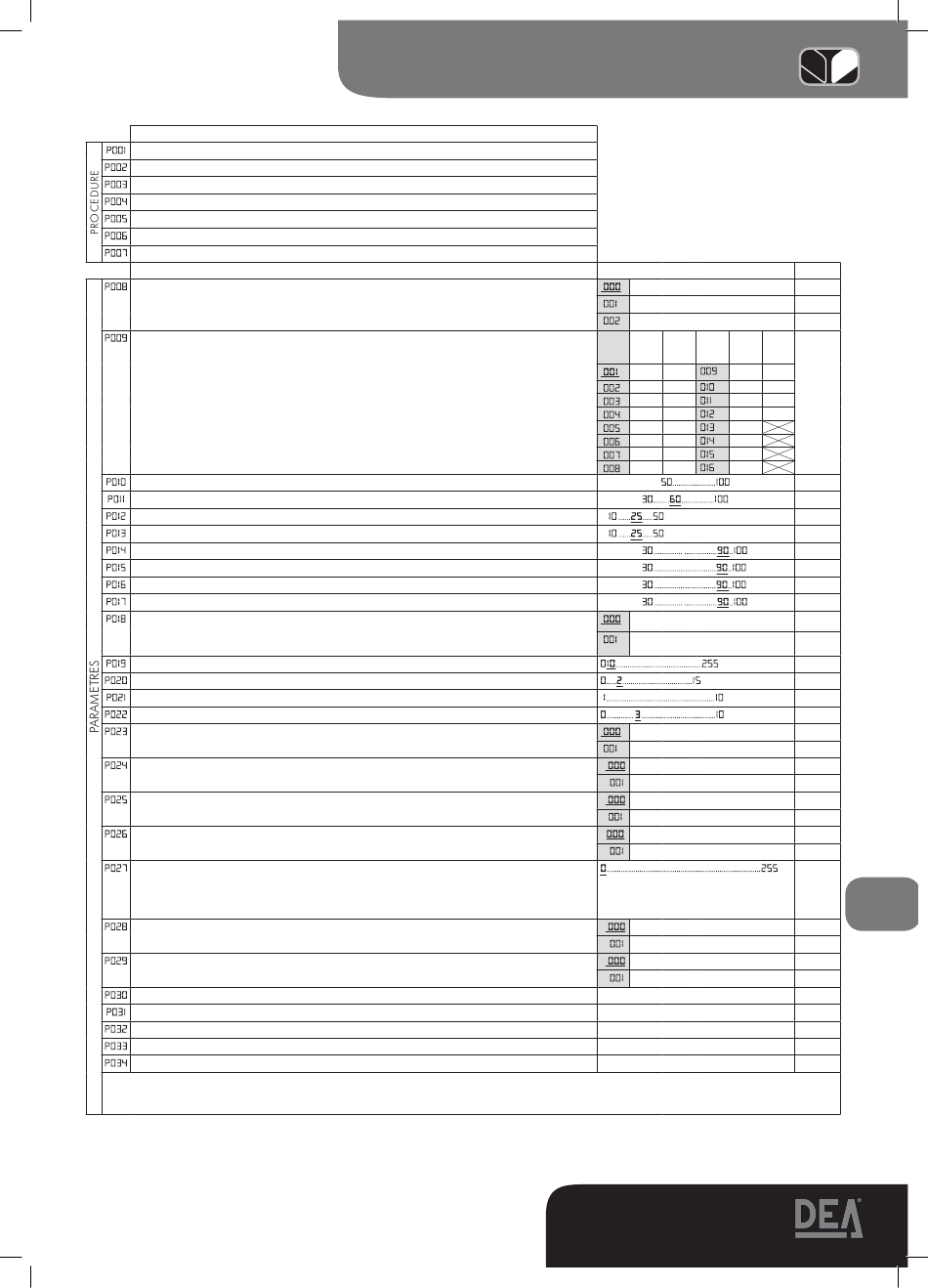

Table 2 Parametres
A N G O L O
USER
1 2
pedes-
start
trian
CH3 CH4
CH4 CH1
CH4 CH2
CH4 CH3
CH1 CH2
3
CH2 CH2 3
CH3 CH2 3
CH4 CH2
3
