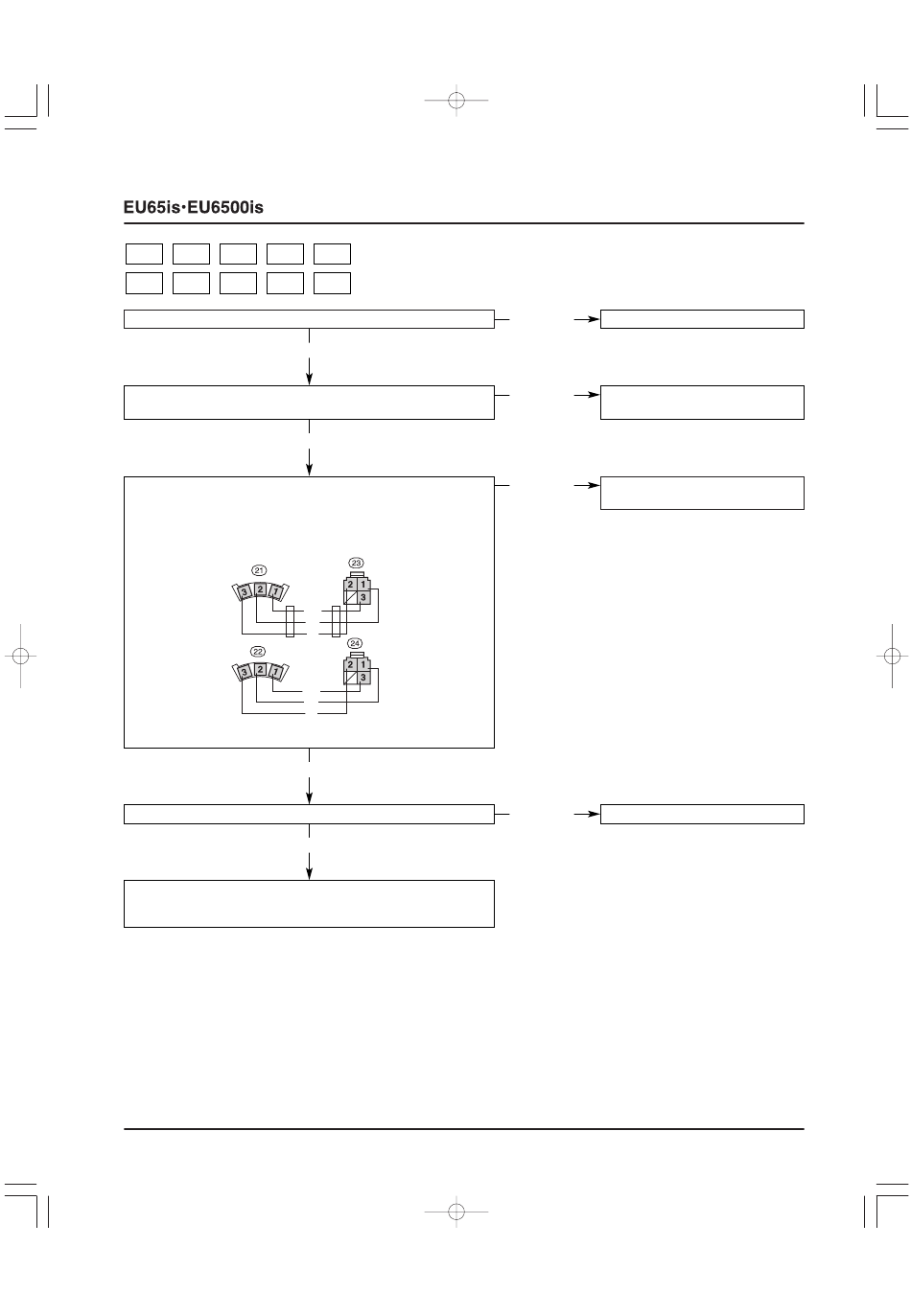

E-17 E-18 E-19
, ,
E-27 E-28 E-29
, ,
Check the generator (P. 11-7).
Check the main wire harness in the control box for open or
short circuit and for proper connection.
Check the harness connecting the inverter unit and generator
for open or short and for proper connection.
Wire harness check points
GENERATOR
(MASTER)
GENERATOR
(SLAVE)
Check the inverter unit (P. 6-3 and 4).
Turn the ignition switch OFF and then restart the engine and
check the error code. If the same error occurs, replace the GCU
(P. 6-6).
E-1A E-1b
, , ,
E-2A E-2b
, , (GCU internal failure or inverter unit internal failure)
Normal
Normal
GENERATOR WIRE HARNESS
INVERTER
UNIT
Bu
W
R
INVERTER
UNIT
Bu
W
R
Viewed from terminal side
Normal
Normal
Abnormal
Abnormal
Abnormal
Bu: BLUE
R: RED
W: WHITE
Abnormal
Replace the stator (P. 11-5).
Replace or repair the main wire
harness.
Replace or repair the generator
wire harness.
Replace the inverter unit (P. 6-2).
