Activate Loads in Bypass

A. Complete load wiring.
B. Check that the bypass jumpers are in place.
These jumpers protect from load faults and must
be used to check load wiring when it is installed or
modified.
Warning! For GP3 and GP4, the input
breaker of Circuit 1 powers the control
wiring as well as Circuit 1's dimmer and
load. Activate loads and remove loads
from bypass concurrently for these
models.
C. Turn circuit breaker 1 ON.
The load(s) should energize, the breaker should
not trip, and total load current must be within the
circuit breaker's limit and less than or equivalent
to 16 A.
D. Repeat step C for each circuit with completed
load wiring.
Warning! Do not remove bypass
jumpers at this time.
Caution! For proper dimming
performance, fluorescent lamps must be
operated at full intensity for 100 hours
prior to dimming.

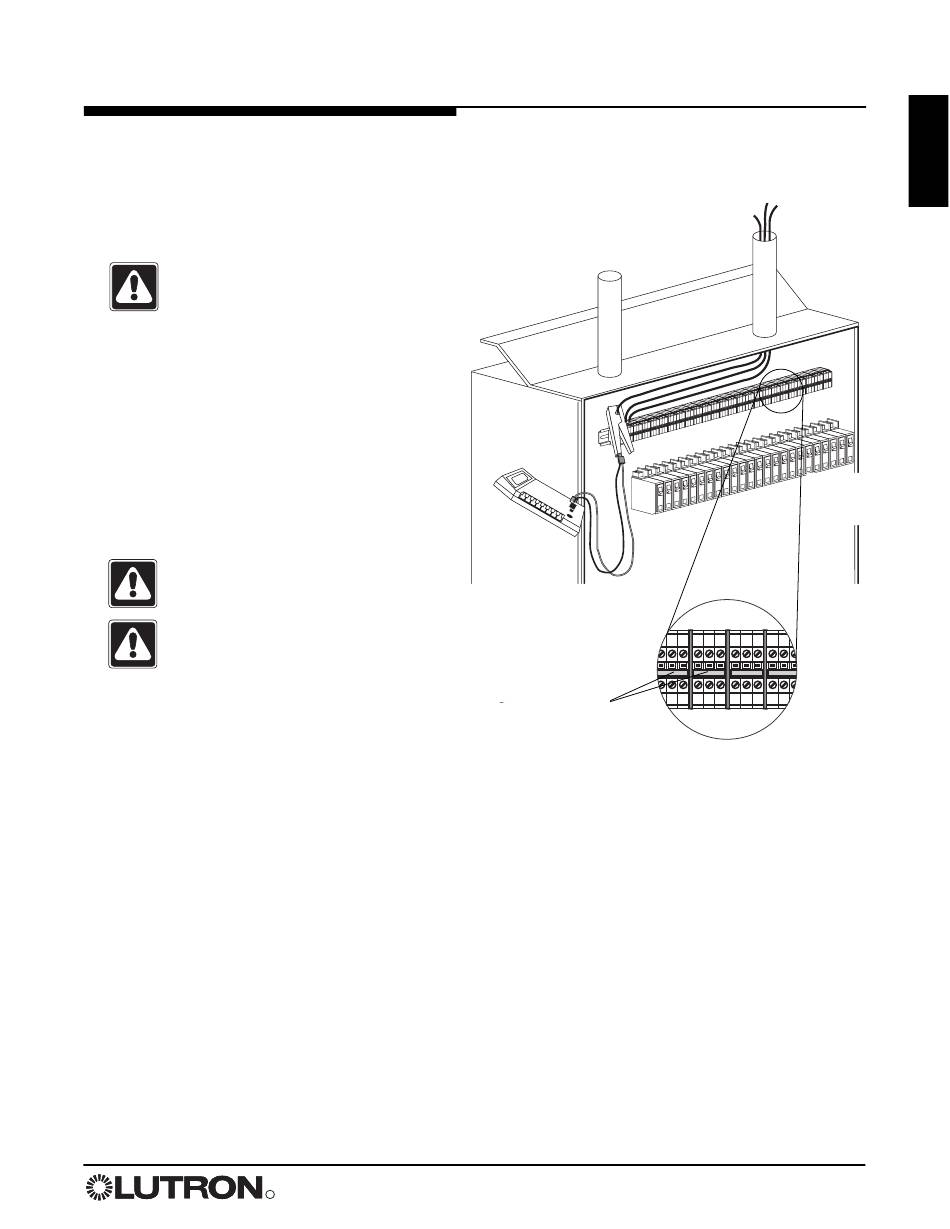

R
Feed wiring
AC RMS
current
Bypass
jumpers
Installation Guide for Dimming Panels
Load circuit wiring
Circuit
breakers
