Panel Mounting

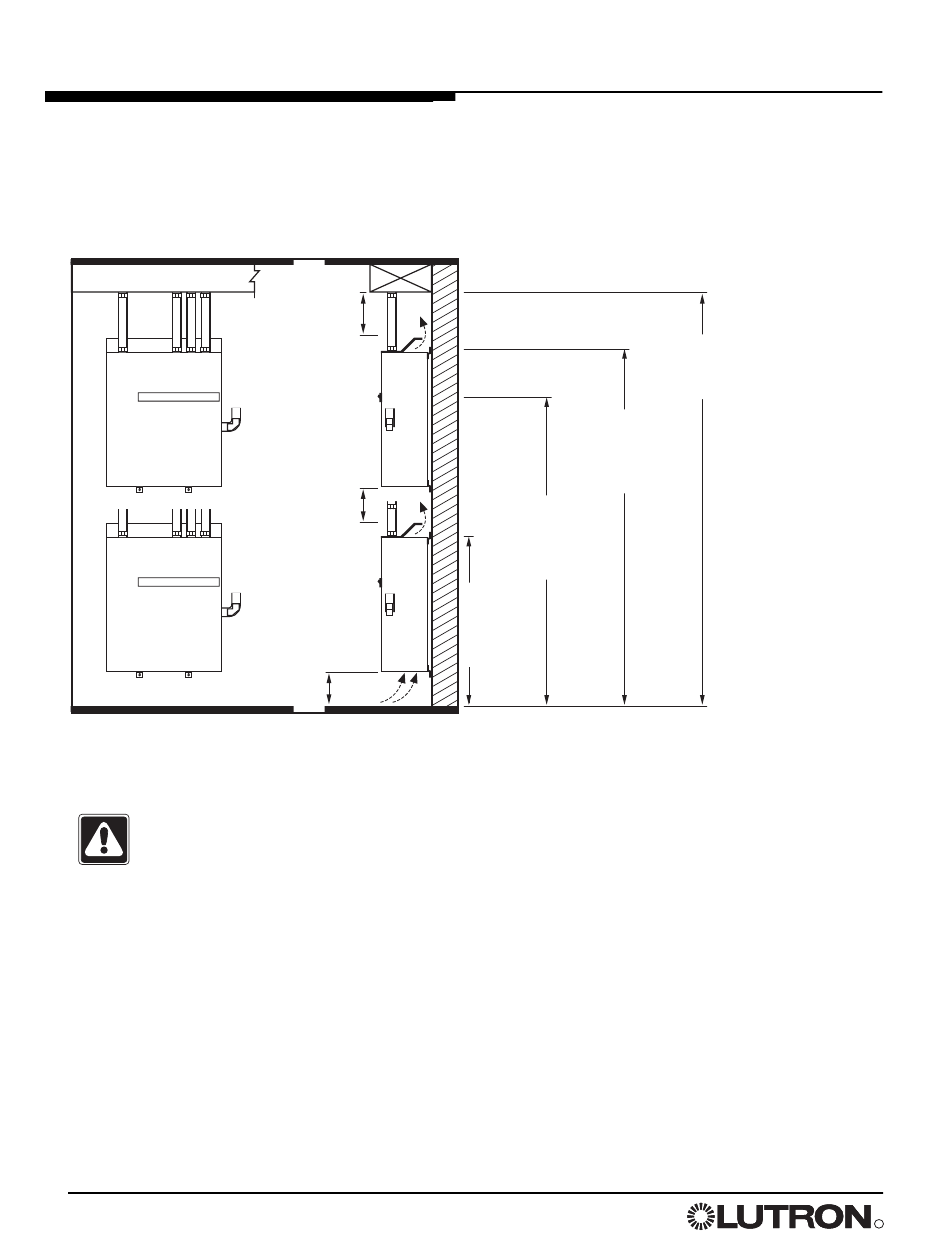

Mounting One Panel above Another:

At least 8 ft. 8 in. (2.74 m) between floor and suspended
ceiling is required for this layout.
Front View
Wiring raceway
Feed Load
wiring
wiring
PELV (Class 2:
USA) wiring
PELV (Class 2:
USA) wiring
*6 in. (152 mm) approved for this layout only.
Warning! Water damages panels. Install
where they will not get wet.
10 Installation Guide for Dimming Panels
(continued)
Side View
12 in.
(305 mm)
min.
12 in.
(305 mm)
min.
6 in. (152
Air flow
mm) min.*
GP8-GP24,
LCP8-LCP24 only
7 ft. 5-5/8 in.
(2.28 m) to
mounting
holes
6 ft. 6 in.
(1.95 m)
NEC
®
breaker
height limit
3 ft. 4-5/8 in.
(1.03 m) to
mounting
holes
8 ft. 8 in.
(2.65 m) min.
to ceiling
