Warning:
--The charger supplied is matched to the Li-ion battery installed in the machine.
Do not use another charger.
--This cordless drill is integrated over-charge protection, when the battery cell was over-
charge, the over-charge protection will operate to stop charge battery.
--During the charging procedure, the battery warms up, this is normal.

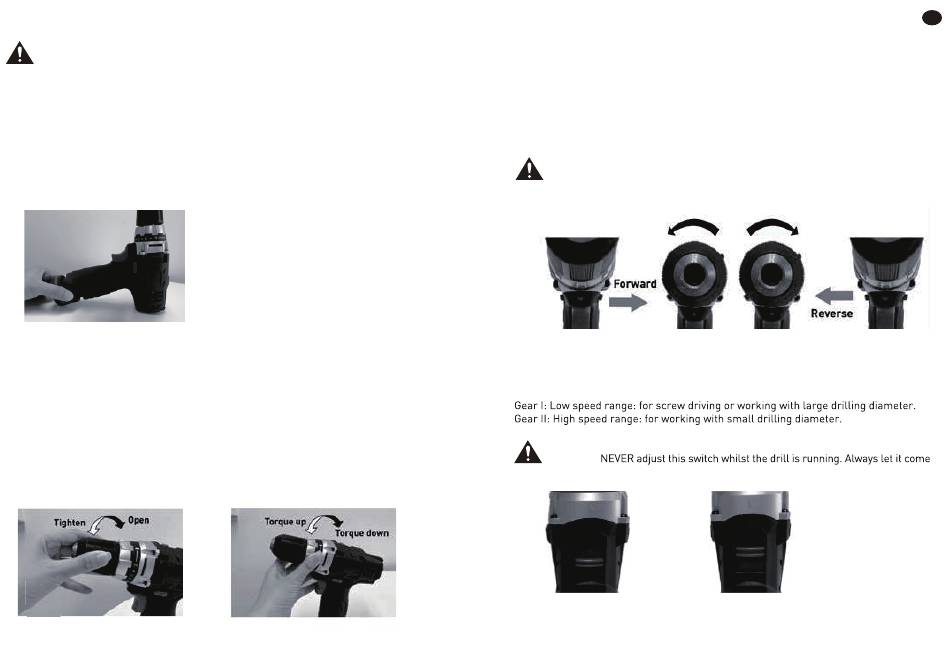

c. Insertion and removal of rechargeable battery (Fig.2)
Depress the battery-release button located on the both sides of the battery pack to
release battery pack.
Pull the battery pack out and remove it from the tool.
Fig.2
3. Functions
a. Install the bits (Fig. 3)
When selecting a bit, use the right type for your job. For best performance, always use sharp bits.
To open the chuck jaws, hold its collar while turning the sleeve in the clockwise direction.
Insert the bit deeply into the chuck, and then center the bit in the chuck jaws.
To close the chuck jaws, hold the collar while turning the sleeve in the counterclockwise direction
as far as possible until the bit gets locked securely.
b. Torque adjustment (Fig. 4)
Select the desired operating torque by turning the ring to the appropriate setting and
adjust the drilling position
F g i 3 . F g i 4 .
c. Forward/Reverse adjustment (Fig. 5)
The forward/reverse switch enables you to change the rotation movement of the chuck,
and also acts as a lock button. For forward rotation, release trigger switch, and then
depress switch to left handle side, press switch to right hand side for reverse rotation,
the centre position locks the drill to off. Always release the trigger switch when changing
rotation. Note the first time you use the drill after changing rotation, you may hear a click
when the drill is turned on, and this is normal and does not indicate a problem.
WARNING: Never change the forward/reverse switch while the drill is rotating as this
damage the drill.
d. Speed gear box (Fig. 6)
Two speed ranges can be pre-selected with the gear selector.
WARNING:
to a complete stop first.
Fig.6
86 |
Fig.5
87 GB GB
