2.5.1 Description of standard training

Standard training lets you associate the 1, 2 or 4 outputs to the 1, 2 or 4 keys on the remote control in a given
order
In the case of remote controls with 4 keys or
less, the association will be:
key 1 -> relay 1
key 2 -> relay 2
key 3 -> relay 3
key 4 -> relay 4
In the case of remote controls with 24
keys, the association will be:
key 1 -> relay 1
key 2 -> relay 2
key 3 -> relay 3
key 4 -> relay 4
or
key 5 -> relay 1
key 6 -> relay 2
key 7 -> relay 3
key 8 -> relay 4
or
...
or
key 21 -> relay 1
key 22 -> relay 2
key 23 -> relay 3
key 24 -> relay 4

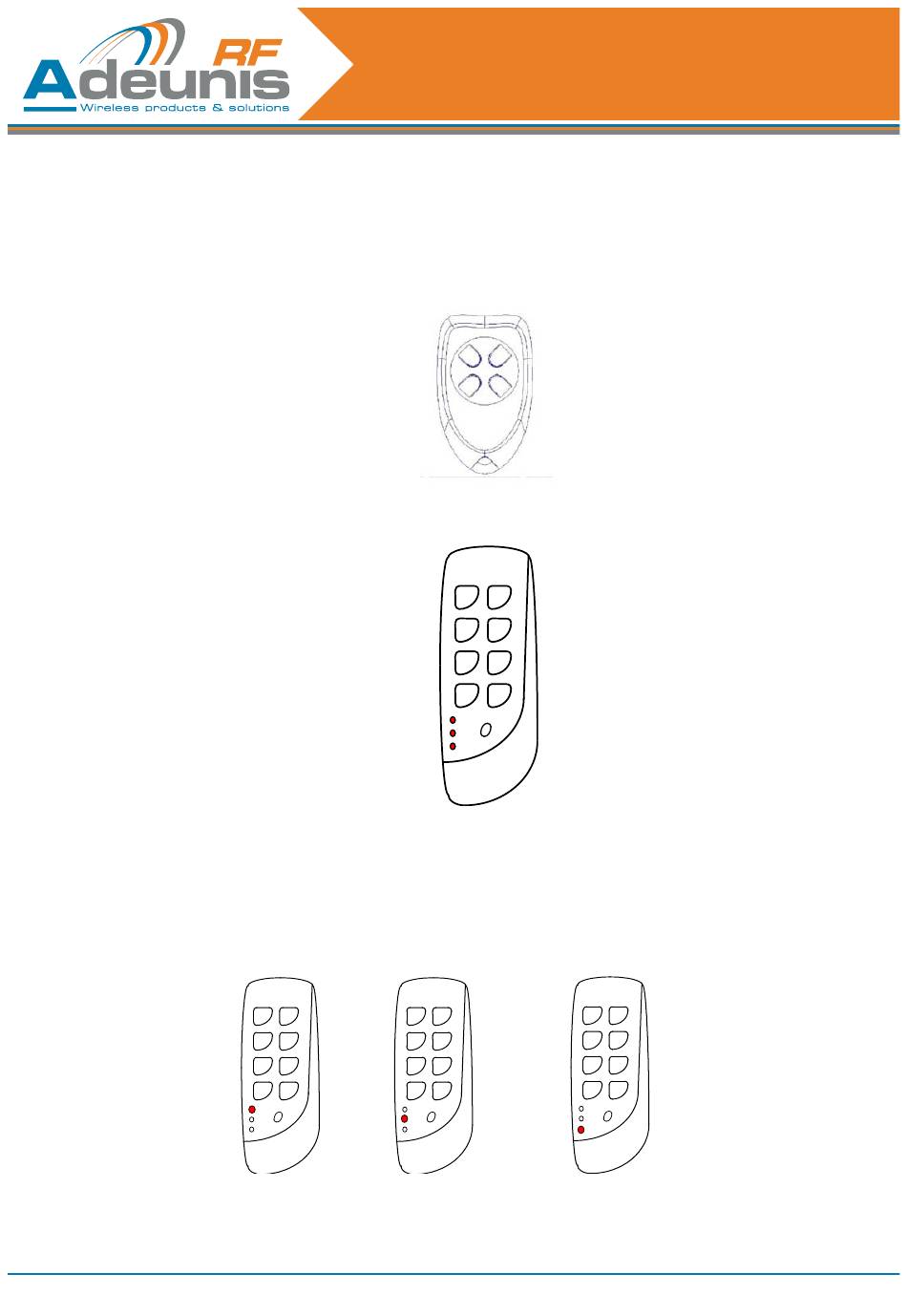

In the case of a remote control with 24 keys, you can access the keys via three different groups (A, B, C). The
small key is used to change group.
Gamme ARF18 UG V1.5
When led A lit, When led B lit,
Key 1 to 8 Key 9 to 16
1 2 9
3 4 11
5 6 13
6 8 15
A A
B B
C C
1 2
3 4
5 6
6 8
A
B
C
When led C lit,
Key 17 to 24
10 17
19
12
21
14
23
16
A
B
C
18
20
22
24
