Setting the Maximum Servo Deflection
• Press button SET again.
• LED 2 goes out and LED 3 lights up green. At the same time,
the tail server lever on one side moves to the end stop.
• Now you can set the maximum servo deflection on this side
with the tail control lever.
Depending on the direction in which the tail control lever is
deflected, the servo deflection increases or reduces.
• Press button SET again.
• LED 3 is now lit red and the servo lever on the other side moves
to the end stop.
• Now you can set the maximum servo deflection on this side
with the tail control lever as well.
• Press button SET again.
• All four LEDs are lit red to show that the values set can now be
stored. If the power supply is now interrupted, all previously
made settings are rendered ineffective.
• Confirm with the SET button again to store the settings and to
leave programming mode again.
S 1 2 3
S 3
1 2
S 1 2 3
SET

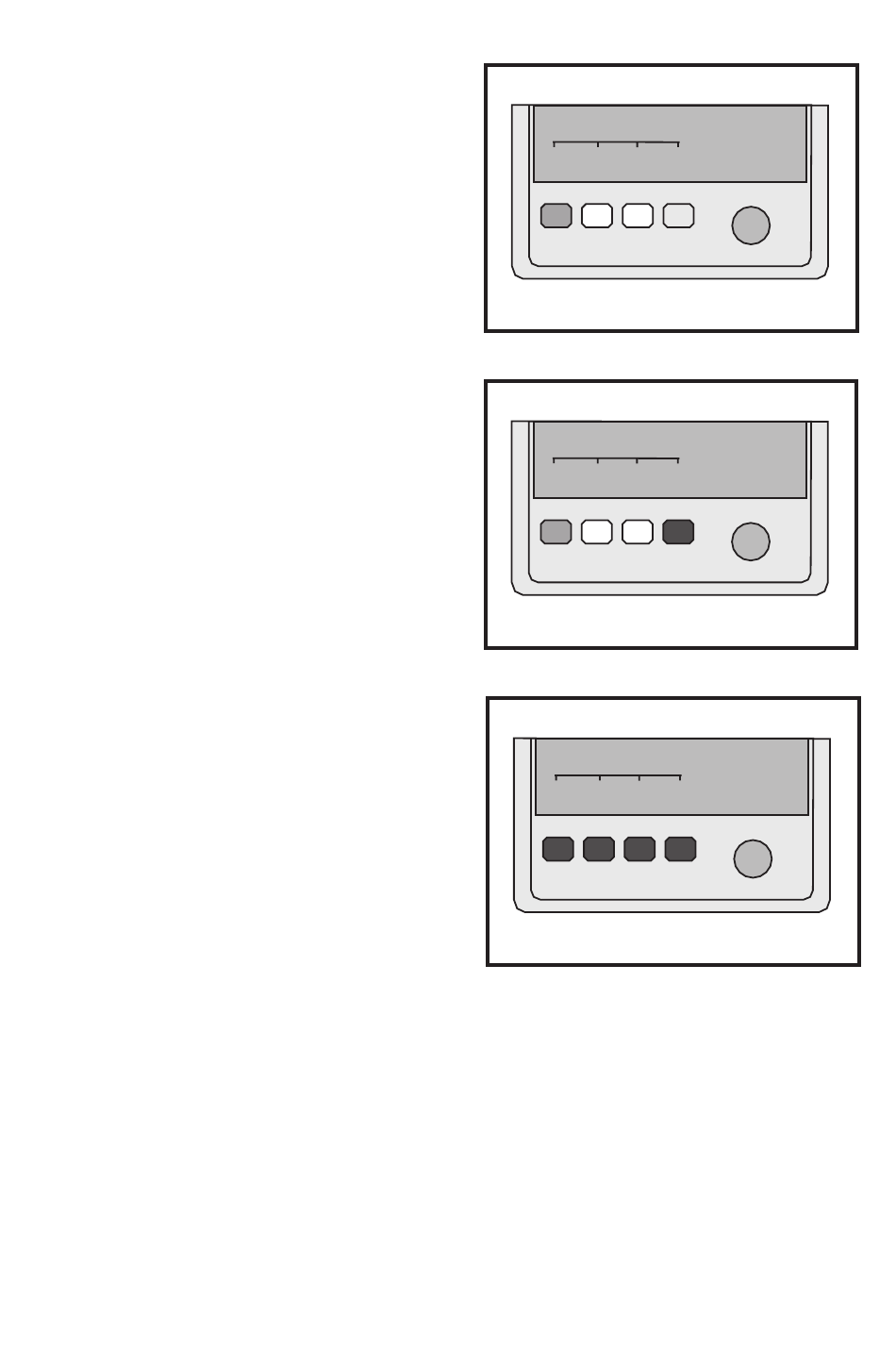

Figure 10
