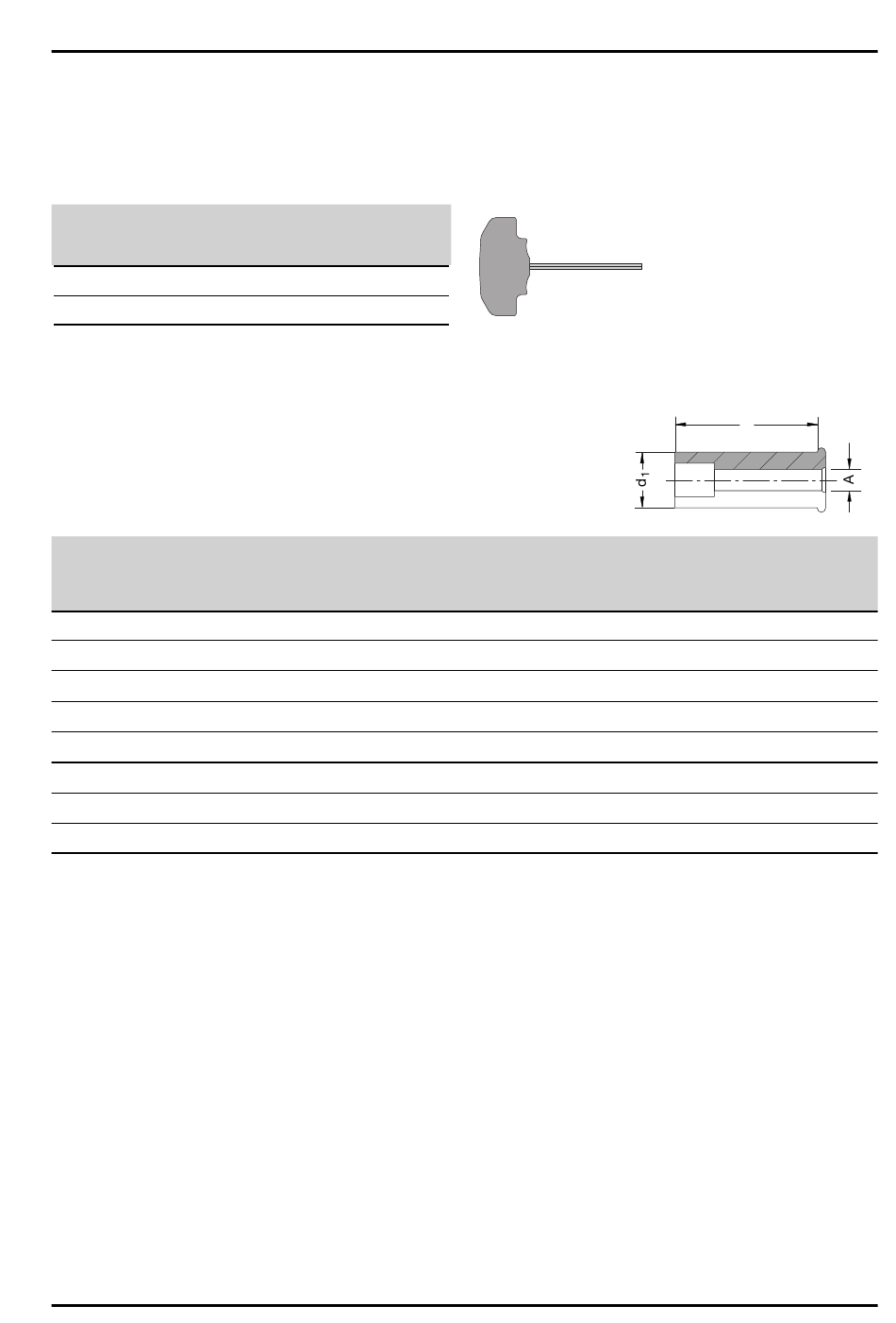

5. Accessories
These are not supplied with the tool and must be ordered separately.
Service keys
Service key /
Torque,
Type
Nm
s5,0 / B
22,0
s6,0 / B
25,0
Reduction sleeves for hydraulic clamping chucks
For straight shanks
- with shank tolerance h
- with shank tolerance h
Nominal size
d
Ø A
l
Order No.
1
1
20
3 50,5
271 045
20
4 50,5
271 046
20
5 50,5
271 047
20
6 50,5
271 003
20
7 50,5
271 049
32
6 60,5
271 009
32
8 60,5
271 010
32
10 60,5
271 011
Reduction sleeve with adjustable limit stop. Coolant seal and
max. torque is achieved only at max. chucking depth.
Clamping force test pieces and hydraulic extension chuck available on request!
Order
number
115 577
15 578
for chuck diameters 3 and 8 mm
6
for chuck diameters 10...32 mm
7
Nominal size
d
Ø A
1
20
8 50,5
20
9 50,5
20
10 50,5
20
11 50,5
20
12 50,5
32
12 60,5
32
14 60,5
32
16 60,5
Type B
l
Order No.
1
271 004
271 050
271 005
271 051
271 006
271 012
271 013
271 014
English
l
1
Nominal size
d
Ø A l
Order No.
1
1
20
13 50,5
271 052
20
14 50,5
271 007
20
15 50,5
271 018
20
16 50,5
271 008
–
–
–
32
18 60,5
271 015
32
20 60,5
271 016
32
25 60,5
271 017
–
