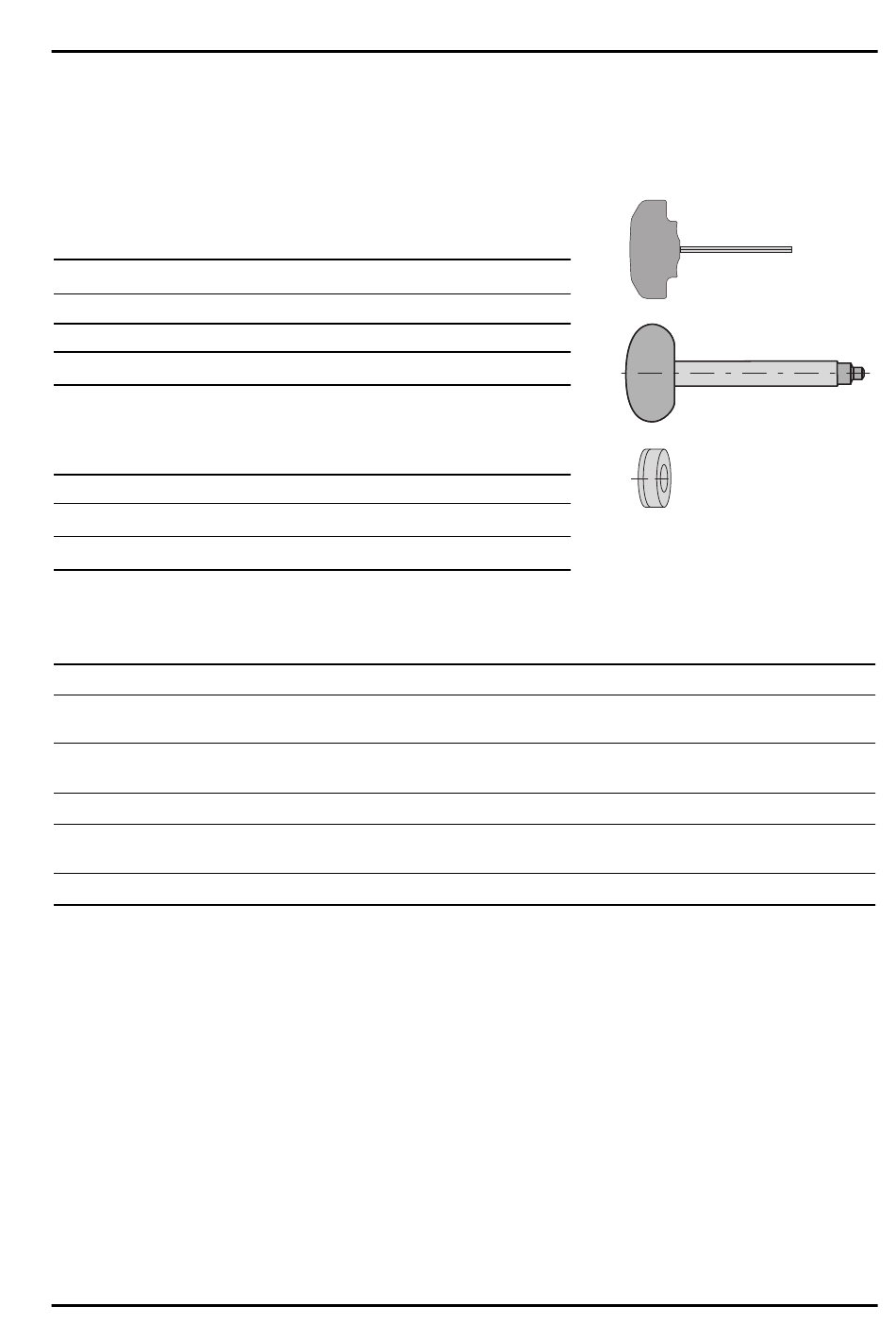

6. Accessories
These are not supplied with the tool and must be ordered separately
Service keys
Service key /
Tightening
Type
torque in Nm
s2.5 / B
s6 / B
Assembly tool for gasket
7. Spare parts
Gaskets
Ø 3- 6 mm
Ø 6-13 mm
Ø 6-16 mm
8. Technical data
Designation
Clamping range
Concentricity max.
(at a torque of)
Holding force
(at a torque of)
Max. permissible torque
Holding force
(at a torque of)
Max. permissing revolution
* All CNC drill chucks are clamped with an Allen-T-wrench moving a bevel gear through a
bore on side of the chuck. The bevel pinion has to be actuated with a torque of 15 Nm to
create a holding torque of 40 Nm, respectively 45 Nm at the clamped tool (measured with
a clean hard metal bold). Higher torques can be reached but are not necessary for normal
use and have to be regarded as security in addition.
** The CNC drill chucks are suitable for work up to 7,000 revolutions per minute.
For work requiring revolutions between 7,000 and 35,000 per minute – for example alu- or
wood processing – the CNC drill chucks have to be balanced along the required revolu-
tions and balancing quality.
There are 2 types of drill chucks available:
1. Dry, without coolant feed
2. Central coolant feed
15
15
Ø 0.5 – 13 mm
Order No.
387 113
387 114
–
Order No.
415 577
115 578
387 112
Ø 2.5 – 16 mm
Order No.
387 115
–
387 116
13
0,5 – 13 mm
0.03 mm
15 Nm
(*)
40 mm
15 Nm
20 mm
80 Nm
(*)
20 Nm
(**)
up to 35,000 RPM
English
Type B
16
2.5 – 16 mm
0.03 mm
15 Nm
(*)
45 Nm
15 Nm
20 mm
90 Nm
(*)
20 Nm
up to 35,000 RPM
(**)
11
