Plant configuration EW 12, EW 14, EW 16 and EW 20
Sampling vessel
Feed sensor
Tank 1
Inlet
DN 150
Tank 2
Coarse particle
strainer and slud-
ge storage
Inlet
2. General
Clear water syphon
Emergency overflow
Excess sludge syphon
Floating switch
Pipe aerator element
Outlet
DN 150
Pipe aerator element
1 + 2
Aeration
SBR
Plastic tank, two tank version

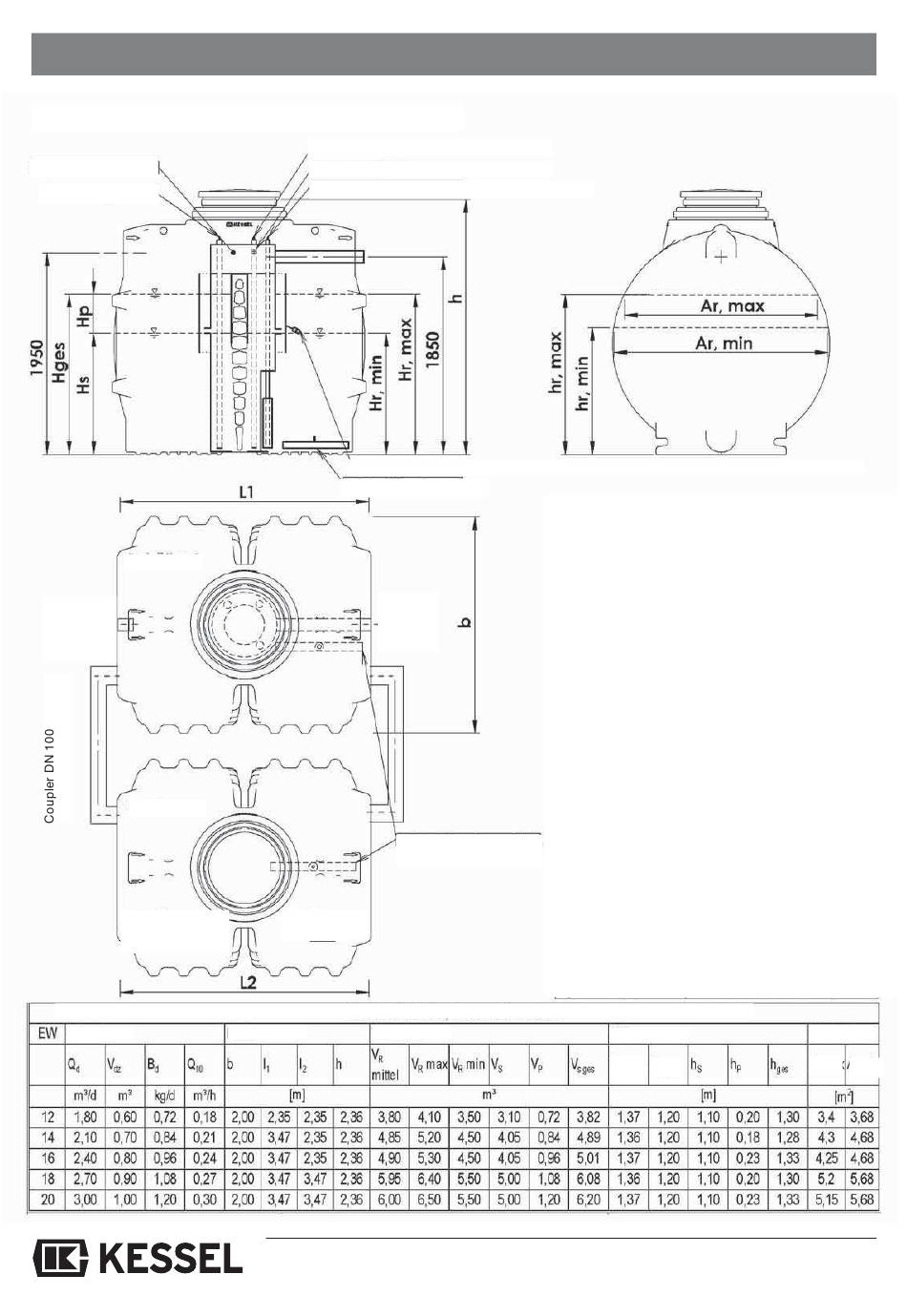

Dimensions
Volumes
Inlet
Bd
kg/d
BSB5 Freight/day
Qd
m
3
/d Sewage inlet/day
Q10
m
3
/h Sewage inlet//hour
Vdz
m
3
Sewage inlet/cycle
Volumes
Vr, moyen m
3
Medium reactor volume,
Vr, max
m
3
Maximumreactor volume
Vr, min
m
3
Minimum reactor volume
Vs
m
3
Minimum sludge storage
Vp
m
3
Volume of buffer inside the storage
Vs, ges
m
3
Useful volume sludge storage
Heights
Hr max
m
Maximum water level Aeration
Hr min
m
Minimum water level Aeration
Hs
m
Minimum water level sludge storage
Hp
m
Height of the buffer inside the storage
Hges
m
Max. water level sludge storage
Height
h
h
Rmax
Rmin
100
Surface
A
A
Rmax
Rmin
