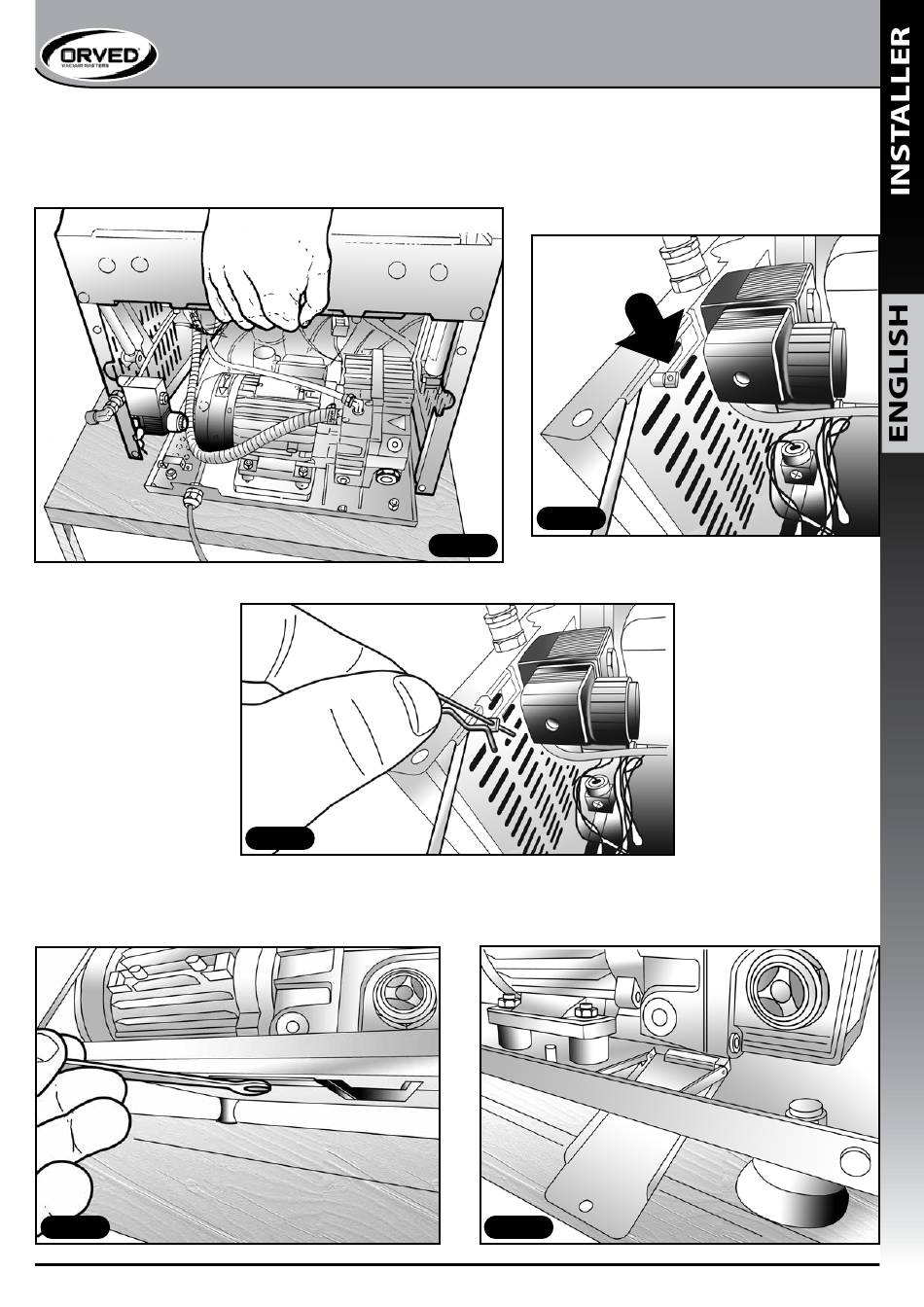

8) Use one hand to lift the body of the machine (Fig. 3), and your other hand to lift the supporting rod of the body and
insert it in the guide hole situated directly on the bottom side of said body (Fig. 4).
9) Insert the safety clip directly in the hole of the rod (Fig. 5).
10) Remove the screw on the oil drain slide (Fig. 6). Check that the slide can permit collection of oil from the pump (Fig.
7).
Fig. 6
Rev. 05 - 04/2018 - Cod. 1500458 - Instruction manual for vacuum chamber packaging machines with digital control panel "Serie Bright"
Fig. 5
MAINTENANCE AND TEChNICAl SUPPORT
Fig. 4
Fig. 3
Fig. 7
