en
Pos. Name Explanation
Title bar Display of currently set application and
2
control mode.
Setpoint dis- Displays currently configured setpoints.
3
play field
Setpoint ed- Yellow frame: You have pressed the operat-
4 itor ing button to open the setpoint editor and
change the value.
Active influ- Display of influences on set control mode
ences
e.g. active setback operation, No-Flow Stop
5
OFF (see table entitled "Active influ-
ences"). You can display up to five active
influences.
Reset refer- Shows the value before having changed it
ence when the setpoint editor is active.
6
The arrow shows that you can go back to
the previous value with the Back button.
Operating Shows current operating data and meas-
data and ured values.
7
measurement
area
Context menu Offers context-related options in a separ-
reference ate context menu.
8

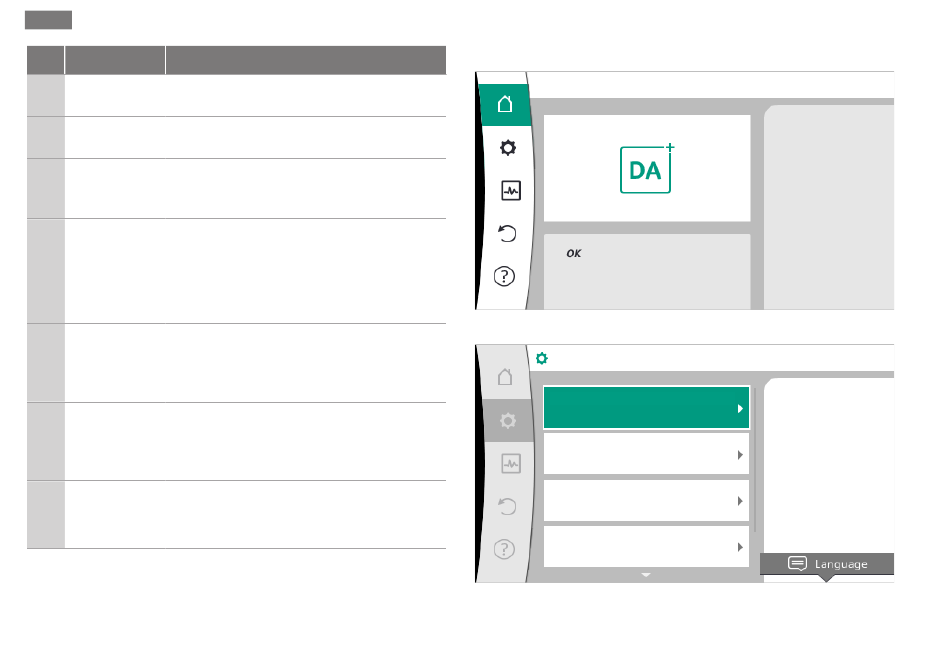

Table 8: Home screen
46
Main menu (Stratos MAXO)
Radiator – Dynamic Adapt plus
Normal operation
Settings menu
Settings
Set auto control
Settings assistant, setpoints, options
Manual operation
Manual override
Double pump operation
Set double pump
External interfaces
Analogue, digital, SSM, SBM ...
Duty point:
DA plus
Q = 13.0 m³/h
H = 2.6 m
Measured values:
70.9 °C
T fluid =
202.0 W
P electr.
4200.0 kWh
W electr. =
Menu for adjusting
control functions.
