Type 2000, 2002, 2012
2030, 2031, 2032, 2033
Electricalpositionfeedback
10 ELECTRICAL POSITION
FEEDBACK
with optical position indicator
DANGER!
Danger – high pressure.
▶ Before making alterations to the devices, switch off the pressure
and vent the lines.
Risk of injury when unscrewing the transparent cap.
The transparent cap must not be under pressure when
unscrewed.
▶ When unscrewing the transparent cap, only the lower piston
chamber may be pressurized with compressed air via the lower
control air connection.
NOTE!
Damage to the micro switch.
• When screwing in or unscrewing the electrical position feedback,
never use the cable plug as a lever, but grip the screw-in base of
the position feedback.
10.1 Actuator size 50, 63, 80 (Ø in mm)
Screw-in base

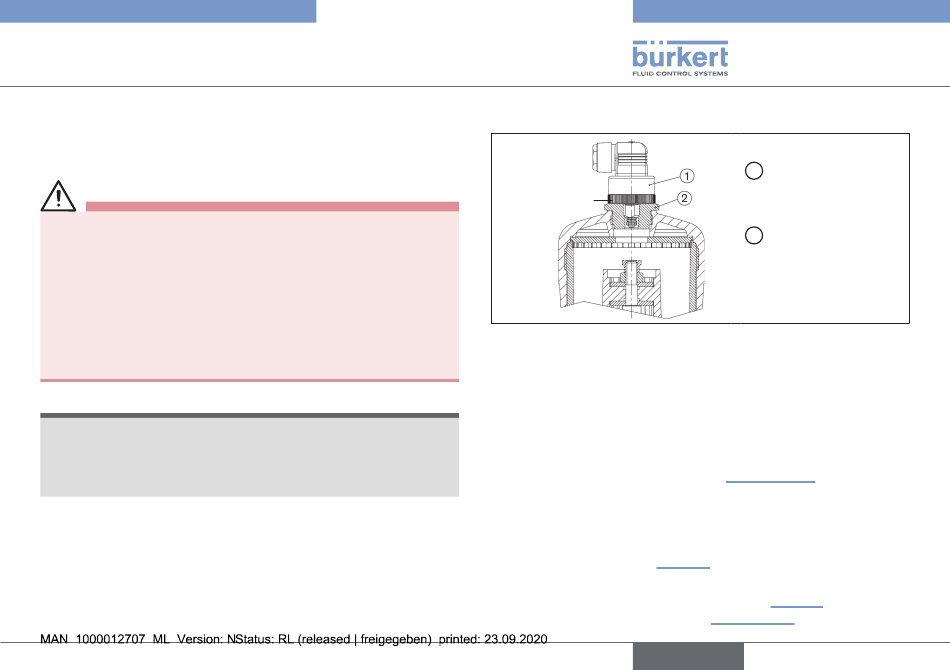

Fig. 10: Actuator size 50, 63, 80 (Ø in mm) with electrical position
feedback
10.1.1 W ork to be carried out before
installation
→
Interrupt supplies of control air and medium.
→
Unscrew transparent cap from actuator cover
(Follow safety instructions Chapter "10", page 19!).
→
Screw out position indicator with Allen key (size 5).
10.1.2 Installation and start-up
→
Screw adapter ② (see "Fig. 10") instead of transparent cap onto
actuator
→
Screw electrical position feedback ① (see "Fig. 10") into adapter
②, following the note in Chapter "10", page 19.
english
Parts required
1 Electrical position
feedback with
cable plug
2 Adapter
19
