Connection Diagram; Installation; Installation Instructions - SilverCrest SAB 160 B2 Mode D'emploi

Connecting the microphone unit

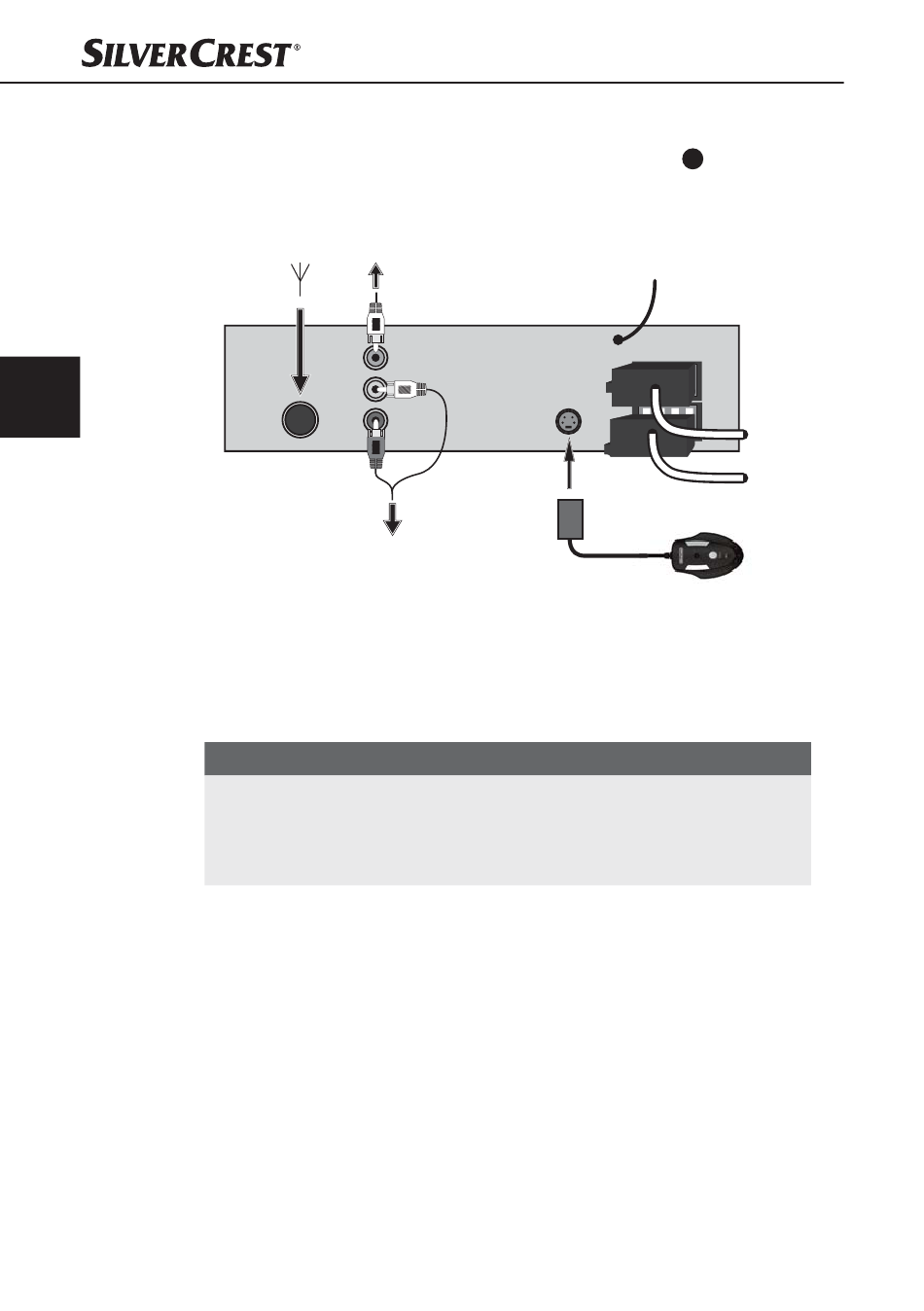

Connection diagram

GB

Installation

Installation instructions

124
To connect the microphone unit, use the microphone unit socket
Antenna Subwoofer
External amplifi er
The device can be installed into any standard ISO mounting bay. In the event that
your vehicle does not have an ISO mounting bay, contact your local specialist
workshop, local dealer or the technical department of a general store.
NOTE
► Before installation ensure that you remove the two transport securing
screws on the top of the housing (marked with a red sticker)!
► Connect the cables before fi nally installing the device. Ensure that these
are plugged in properly and that the system works correctly.
■ Install the device in the bay provided or select the installation location so
that all buttons can be reached easily without the driver being impeded.
■ Only connect the device to a properly installed 12 V car battery.
■ Only connect up the device within the vehicle using the ISO plugs.
■ Install the device in such a way as to prevent heat build-up and so that the
device is adequately ventilated.
.
25
antenna
®
Bluetooth
1 2 3 4
5 6 7 8
1 2 3 4
5 6 7 8
Microphone unit
SAB 160 B2
ISO B
ISO A
