To store the IV pole option:
1. Lift up on the IV pole to release it from its receptacle.
2. Pivot the IV pole from its upward position.
3. Fold the IV pole down into the head end of the product.
A A t t t t a a c c h h i i n n g g t t h h e e d d u u a a l l H H a a v v a a s s u u t t w w o o - - s s t t a a g g e e I I V V p p o o l l e e o o p p t t i i o o n n
The dual Havasu two-stage IV pole option is permanently attached to the head end of the product. It is equipped with a
telescopic pole that extends to provide a second height position. You can fold and store the IV pole when not in use.
T T o o o o l l s s r r e e q q u u i i r r e e d d : :
• Two washers
• Two bolts
• 3/8 in. drive ratchet
• 3/8" drive torque wrench (in-lb)
• 1/2 in. socket
To install the IV pole option:
1. Using a 3/8 in. drive ratchet and a 1/2 in. socket, install one washer (C) and one bolt (D) to secure the IV pole into the
socket at the head end of the product (A) (Figure 113).
2. Using a 3/8 in. drive ratchet and a 1/2 in. socket, install one washer (C) and one bolt (D) to secure the IV pole support
into the socket at the head end of the product (B).
N N o o t t e e - - The bolts are coated in Scotch Grip. You must replace the bolt with an identical equivalent if you remove the bolt
during a service procedure.
2141-409-007 Rev AA.0
B
A

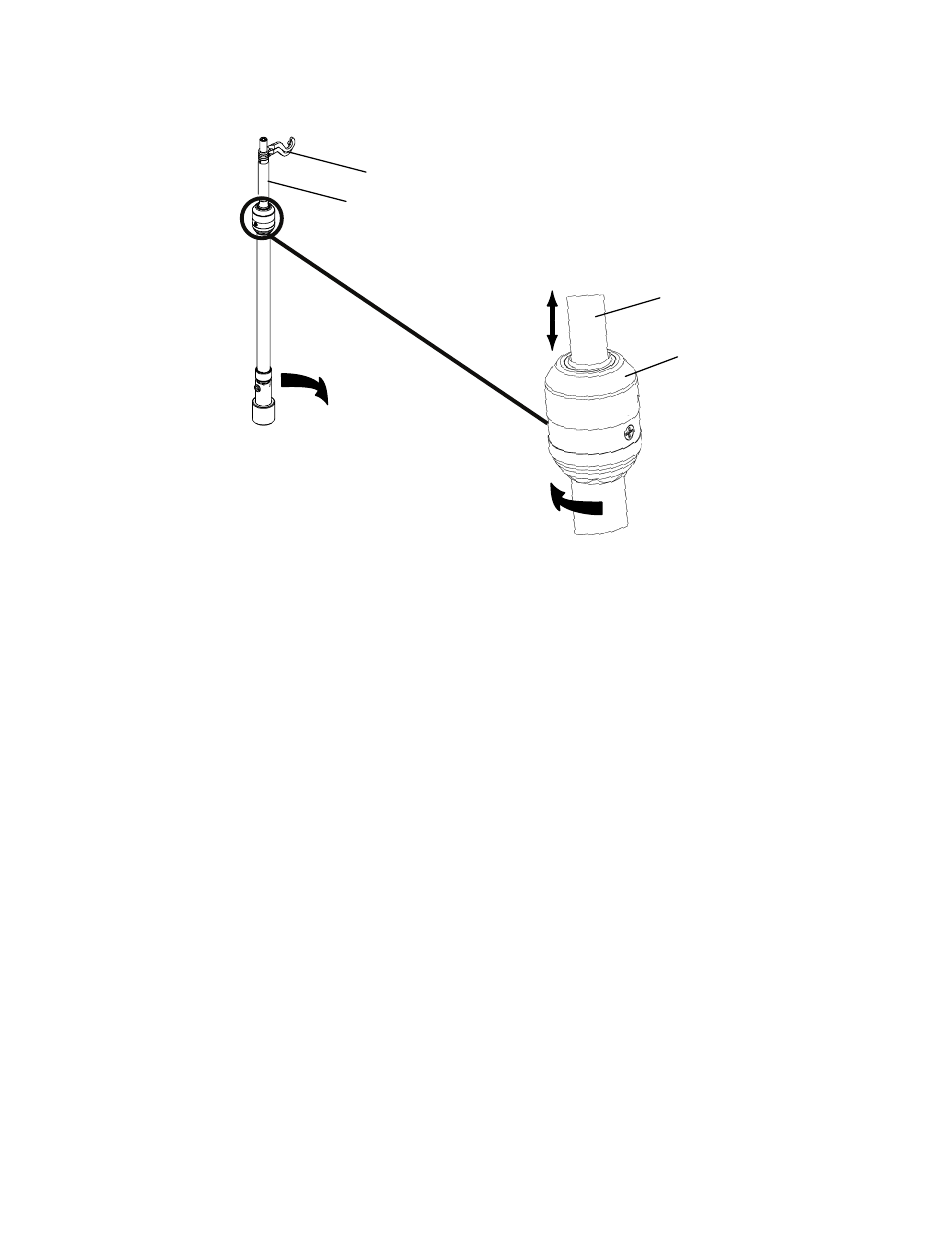

F F i i g g u u r r e e 1 1 1 1 2 2 – – O O p p e e r r a a t t i i n n g g t t h h e e I I V V p p o o l l e e
A
C
87 EN
