F F i i g g u u r r e e 1 1 0 0 9 9 – – S S t t r r a a p p p p i i n n g g t t h h e e m m a a t t t t r r e e s s s s t t o o t t h h e e b b e e d d
A A t t t t a a c c h h i i n n g g t t h h e e s s i i n n g g l l e e H H a a v v a a s s u u t t w w o o - - s s t t a a g g e e I I V V p p o o l l e e o o p p t t i i o o n n
The single Havasu two-stage IV pole option is permanently attached to the head end of the product. It is equipped with a
telescopic pole that extends to provide a second height position. You can fold and store the IV pole when not in use.
T T o o o o l l s s r r e e q q u u i i r r e e d d : :
• Two washers
• Two bolts
• 3/8 in. drive ratchet
• 3/8" drive torque wrench (in-lb)
• 1/2 in. socket
To attach the IV pole option:
1. Using a 3/8 in. drive ratchet and a 1/2 in. socket, install one washer (C) and one bolt (D) to secure the IV pole into the
socket at the head end of the product (A) (Figure 111).
2. Using a 3/8 in. drive ratchet and a 1/2 in. socket, install one washer (C) and one bolt (D) to secure the IV pole support
into the socket at the head end of the product (B) (Figure 111).
N N o o t t e e - - The bolts are coated in Scotch Grip. You must replace the bolt with an identical equivalent if you remove the bolt
during a service procedure.
2141-409-007 Rev AA.0
e e x x t t e e n n d d e e r r o o p p t t i i o o n n
A
B

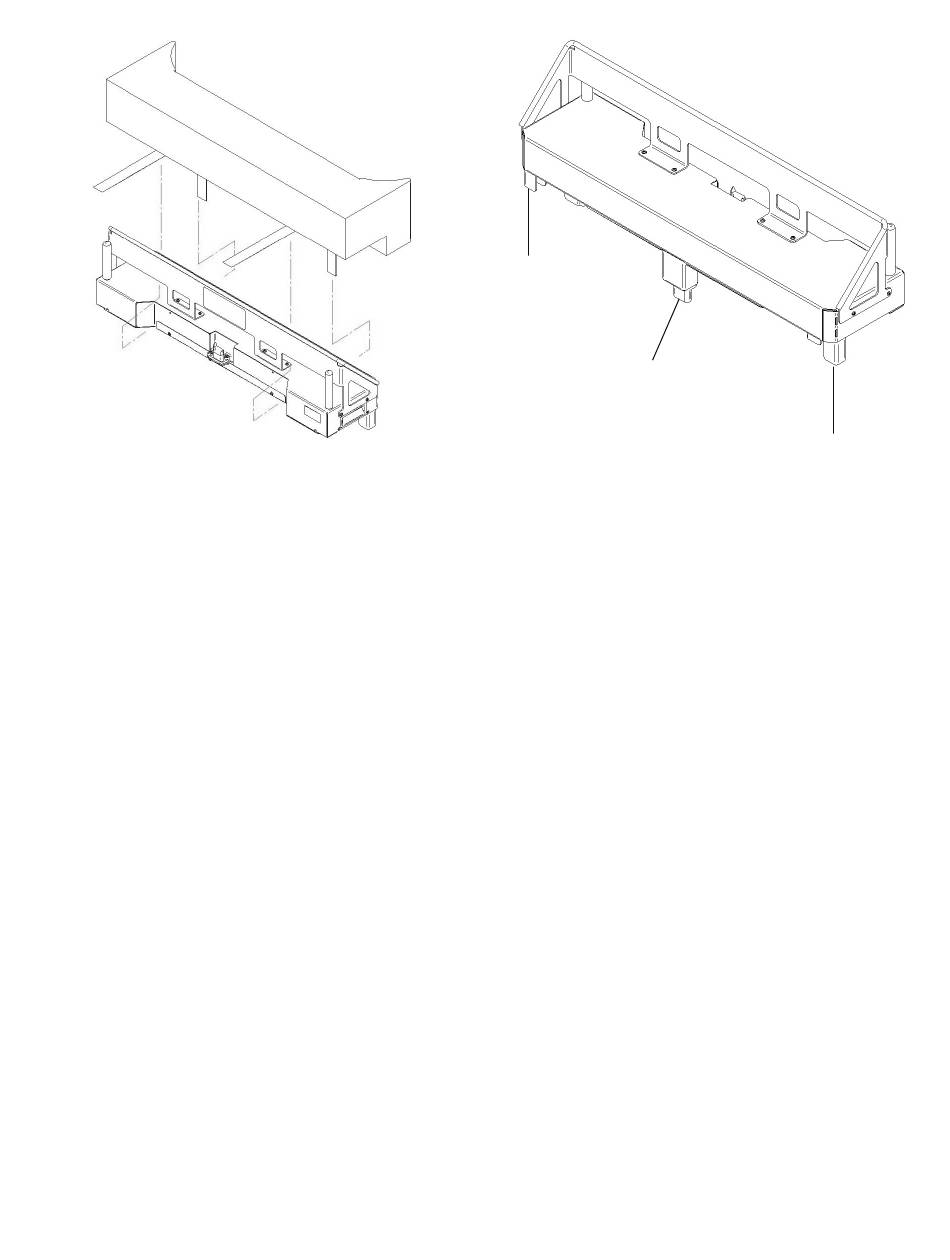

F F i i g g u u r r e e 1 1 1 1 0 0 – – A A t t t t a a c c h h i i n n g g t t h h e e b b e e d d e e x x t t e e n n d d e e r r o o p p t t i i o o n n
A
