Reverse Trendelenburg

D
Litter up
E
F Litter down
Fowler up
G
H Fowler down
Gatch up
I
J Gatch down
Foot up
K
L Foot down
N N o o t t e e
• Do not lock the motion control panel functions from the footboard if you must access the motion control panel
functionality when you remove the footboard.
• The addition of accessories affects the motion of the bed.
• Foot end section mobility stops when you insert an accessory into the traction socket at the foot end of the product.
• The maximum angle of inclination during the Trendelenburg and Reverse Trendelenburg position is 15°.
• You must have a minimum clearance of 20 in. for the Trendelenburg and Reverse Trendelenburg positions.
• You can lower the height while in Trendelenburg without changing the angle.

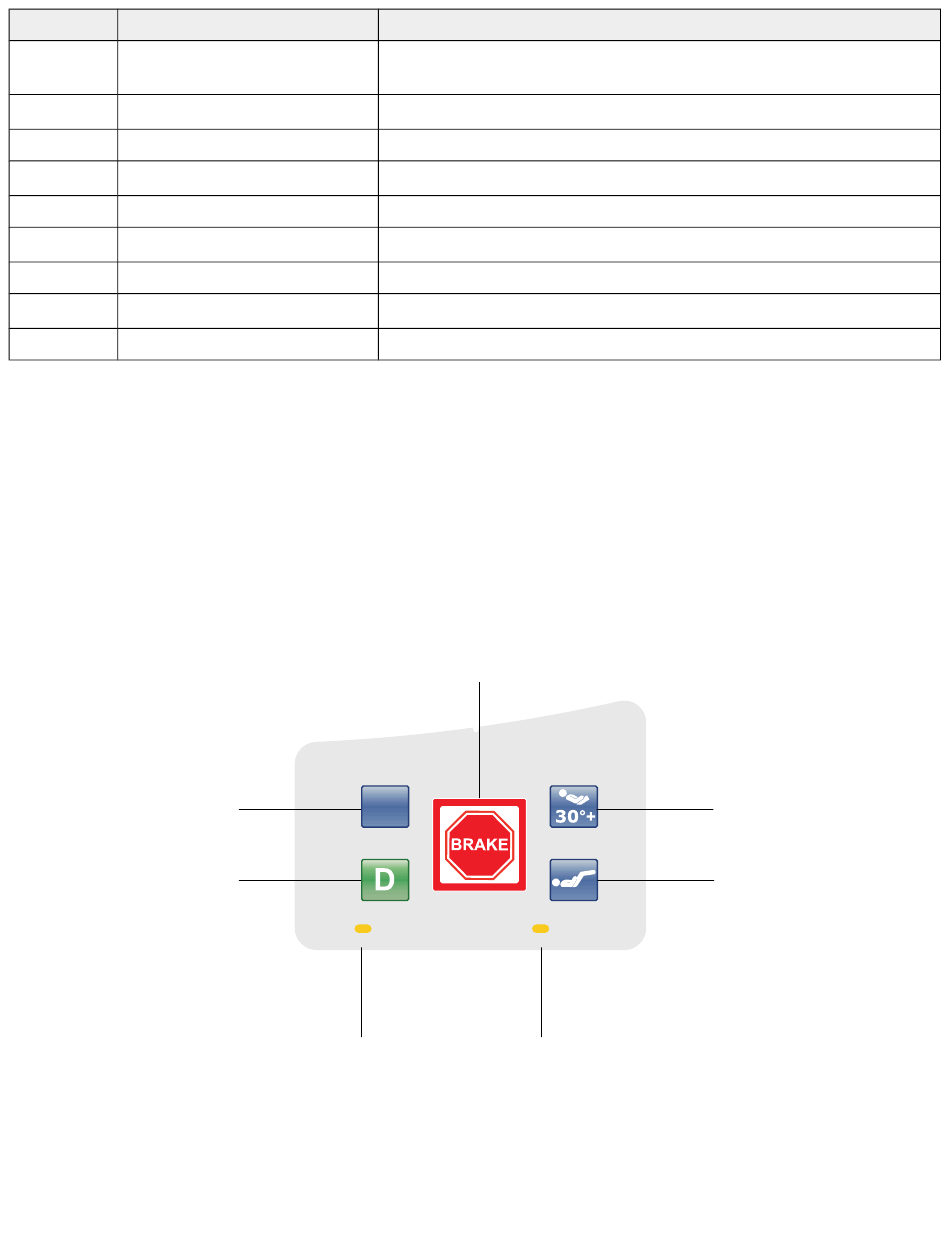

B B r r a a k k e e c c o o n n t t r r o o l l p p a a n n e e l l , , o o u u t t s s i i d d e e s s i i d d e e r r a a i i l l
2141-409-007 Rev AA.0
F F u u n n c c t t i i o o n n
Places the product into the Reverse Trendelenburg position (head up
with foot down)
Raises the litter
Lowers the litter
Raises the Fowler section
Lowers the Fowler section
Raises the Gatch section
Lowers the Gatch section
Raises the foot section
Lowers the foot section
N
A
Brake Off
B
Drive
Brake Set
D
C
Vascular
Position
Brake Not Set
QDF27-2239
E
G
F
29 EN
