5.5 User Interface
5.5.1 Main Window
The main window is the primary screen used in the Cryopilot software. This
window contains menu items to interact with the program, a chart to graphically
display process data, and a legend to select the traces to display on the chart.
1
2
3
4
5

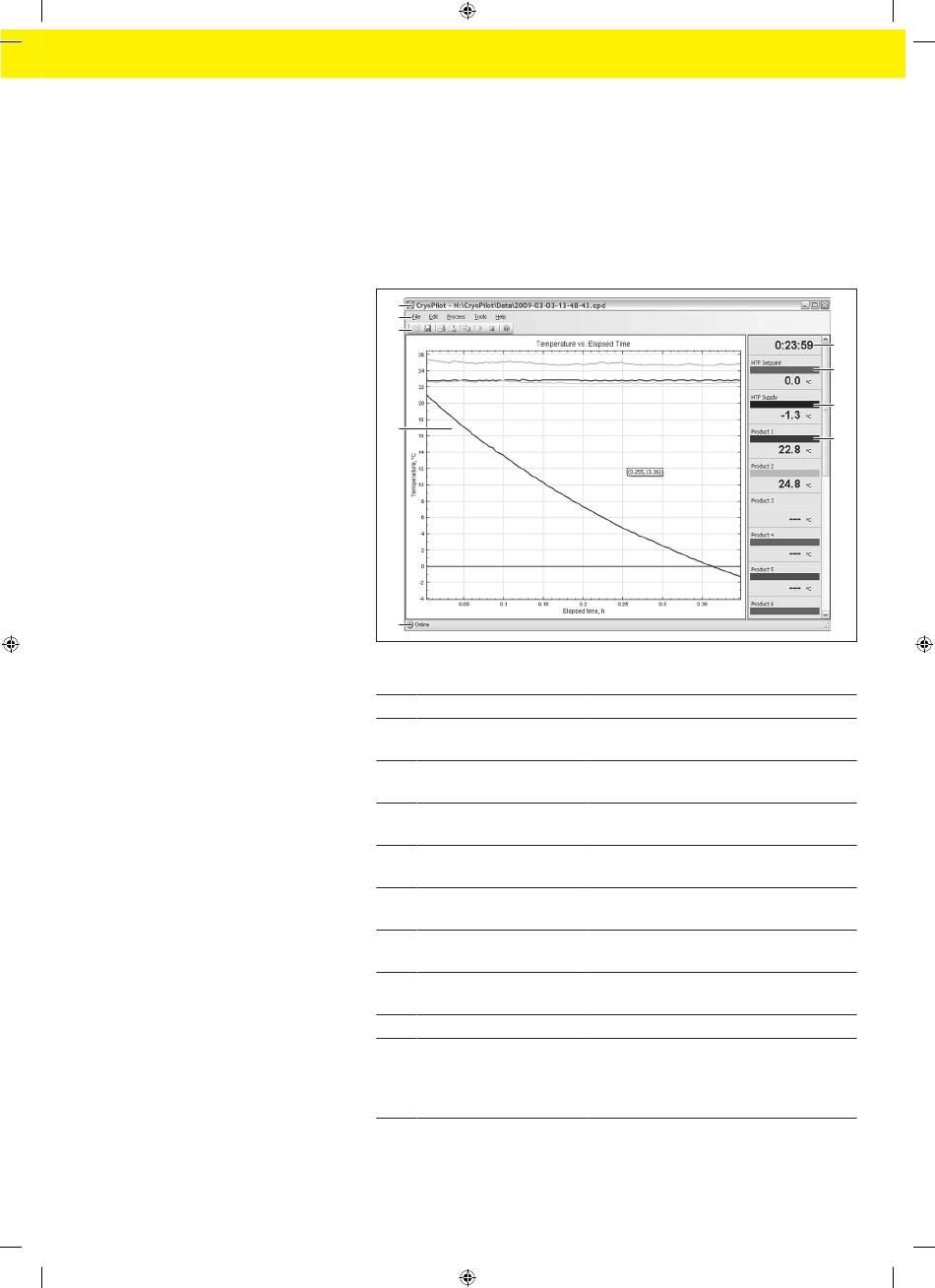

Fig. 14: Main Window
Pos . Control
1 Title bar
2 Menu bar
3 Toolbar
4 Chart
5 Status bar
6 Elapsed time indicator
7 HTF Setpoint legend
item
8 HTF Supply legend item
9 Product N legend item
Operating Instructions Celsius
Cryopilot Software
Description
Displays the name of the application and
the name of the current data file, if any
Contains menus for performing common
tasks
Contains buttons for performing common
tasks
Displays a plot of temperature vs. elapsed
time
Shows the status of the equipment as
Online or Offline
Shows how much time has elapsed since
the process started
Displays the heat transfer fluid (HTF)
setpoint
Displays the actual HTF temperature
Displays the temperature of the Nth
type T thermocouple.
Up to 16 thermocouples may be
monitored, depending on hardware.
S Benchtop System
® 3
6
7
8
9
