System Installation
14
Operating Instructions Celsius
_Manual_Benchtop_Freeze_Thaw_System_S--6004-t210308_85034-538-54.indb 14
_Manual_Benchtop_Freeze_Thaw_System_S--6004-t210308_85034-538-54.indb 14
4.3
Selecting a Location
Install the system on dry, level surface such as a lab bench or table that sup-
ports a total weight of ~400 lbs (~180 kg). The space required for a typical
benchtop system is approximately 188 cm (74") wide by 76 cm (30") deep.
See Figure 5 for proper arrangement and required clearance. The Cryopilot
A is air-cooled and requires adequate ventilation. Since the Cryomixer Jr.
oscillates back and forth, avoid use of wheeled carts.
Laptop
computer
Data
acquisition
device

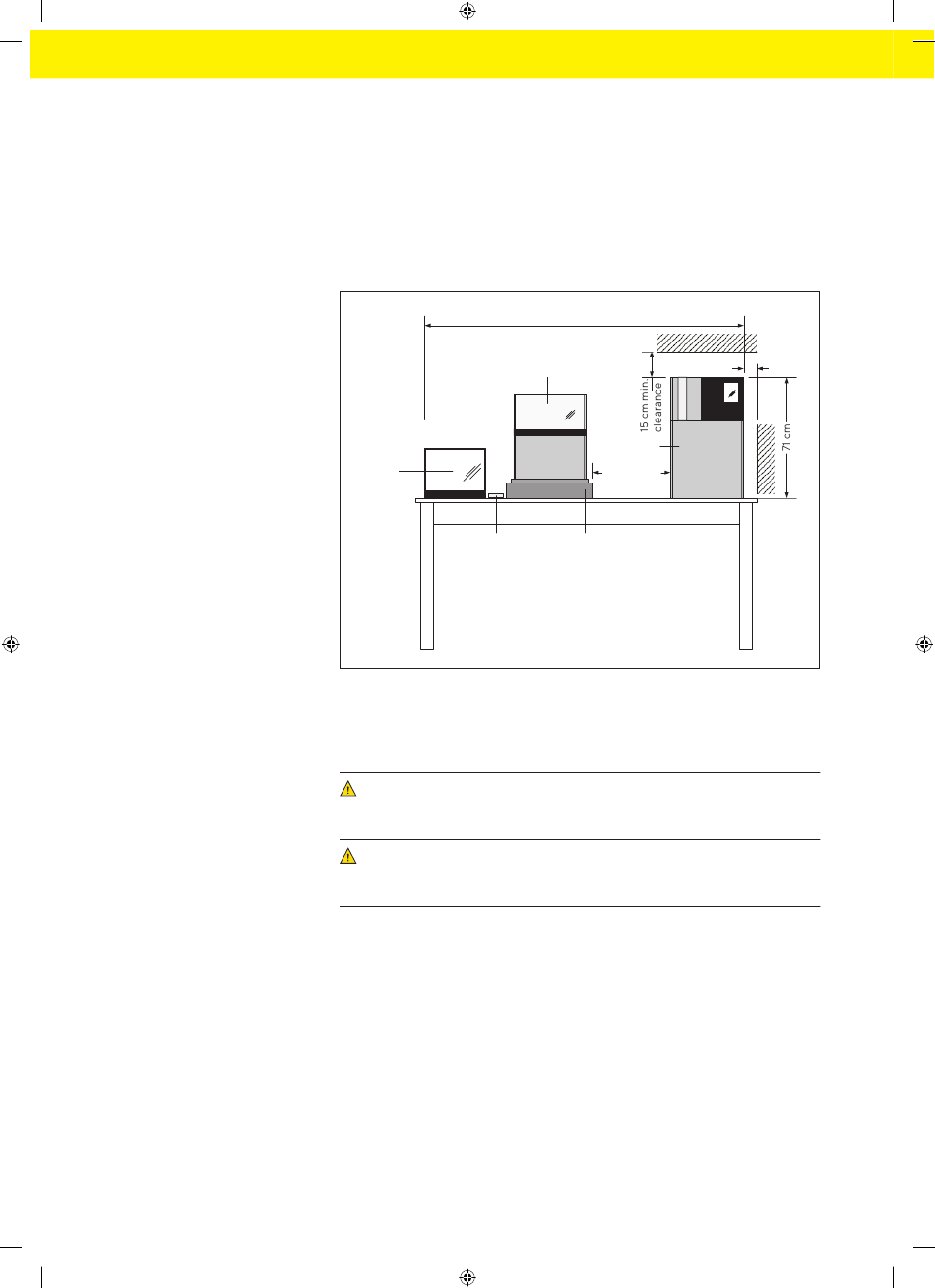

Fig. 5: Space Requirements
4.4
Cryowedge and Cryohose Installation
CAUTION
Do not stretch or kink the Cryohoses in order to attach them to the Cryo-
wedge. This may cause leaking. Allow adequate slack.
CAUTION
Apply adequate counter torque when tightening the Cryopilot A union
fittings in order to avoid damage to the piping inside.
Place the Cryowedge in the insulated cover provided, making sure that
t
the heat transfer fluid (HTF) inlet and outlet connections are exposed.
Place the insulated Cryowedge on top of the Cryomixer Jr. Position the
t
Cryowedge such that the motion of the Cryomixer Jr. will allow for mixing
along the length of a Cryocassette or from the point of the Cryowedge
(equivalent to the position of the core heat exchanger of a Cryovessel)
to the outer wall (equivalent to the position of the jacket of a Cryovessel).
Slide two Cryowraps onto each hose.
t
S
Benchtop System
®
3
188 cm (ref)
S
Module or
3
Cryowedge
Cryopilot A
46 cm min.
Cryomixer Jr.
Required depth 76 cm (ref)
8 cm min. clearance
