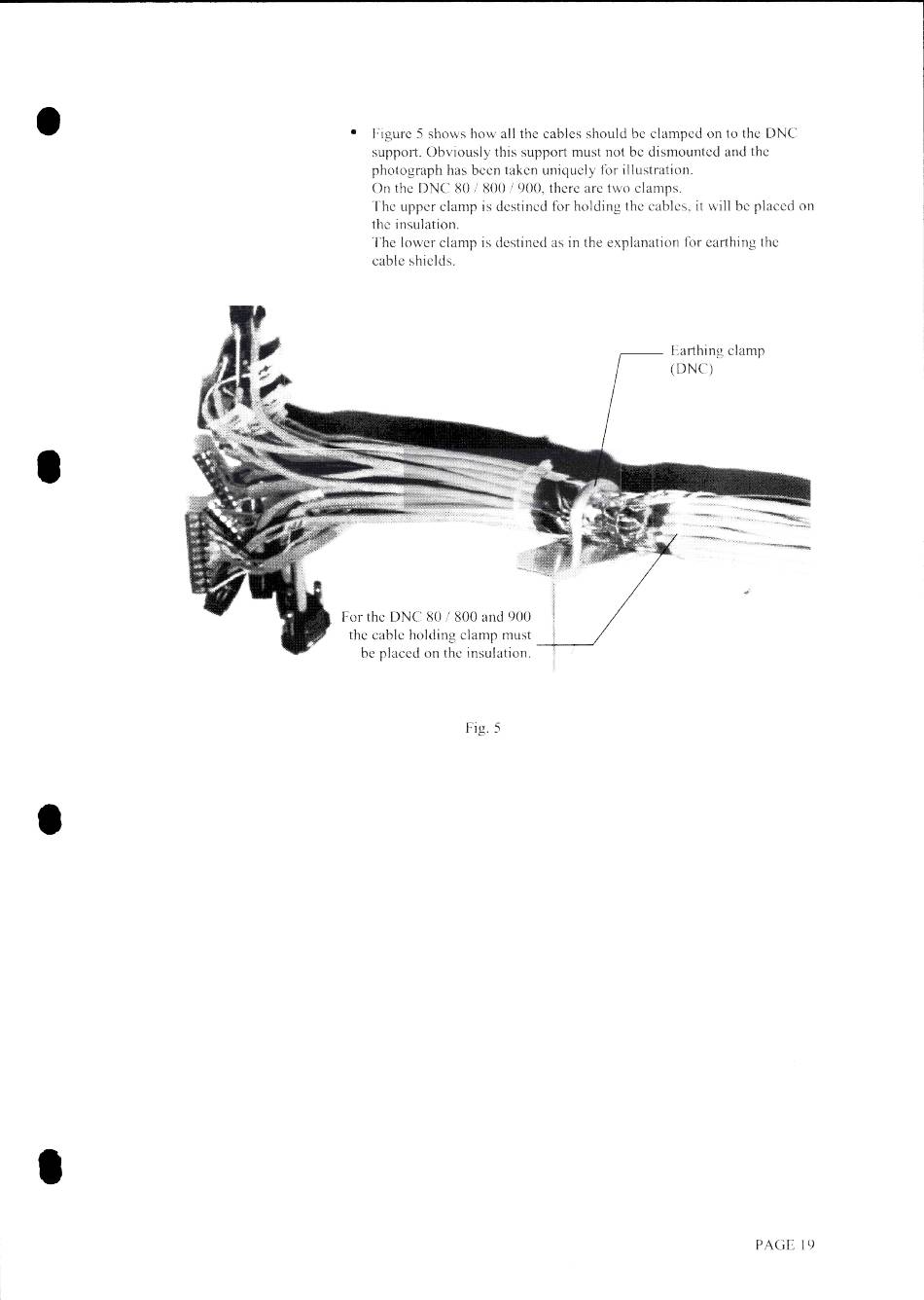

Fígure 5 shows how a11 the cables should be clamped on to the DNC
support. Obvíously thís support must not be dismounted and the
photograph has been taken uniquely for íllustration.
On the DNC 80 / 800 / 900, there are two clamps.
The upper elamp ís destined for holding the cables, ít wí11 be placed on
the insulation.
The lower clamp ís destíned as in the explanation for earthíng the
cable shields.
For the DNC 80 / 800 and 900
the cable holding clamp must
be placed on the insulation.
Fíg. 5
Earthíng clamp
(DNC)
