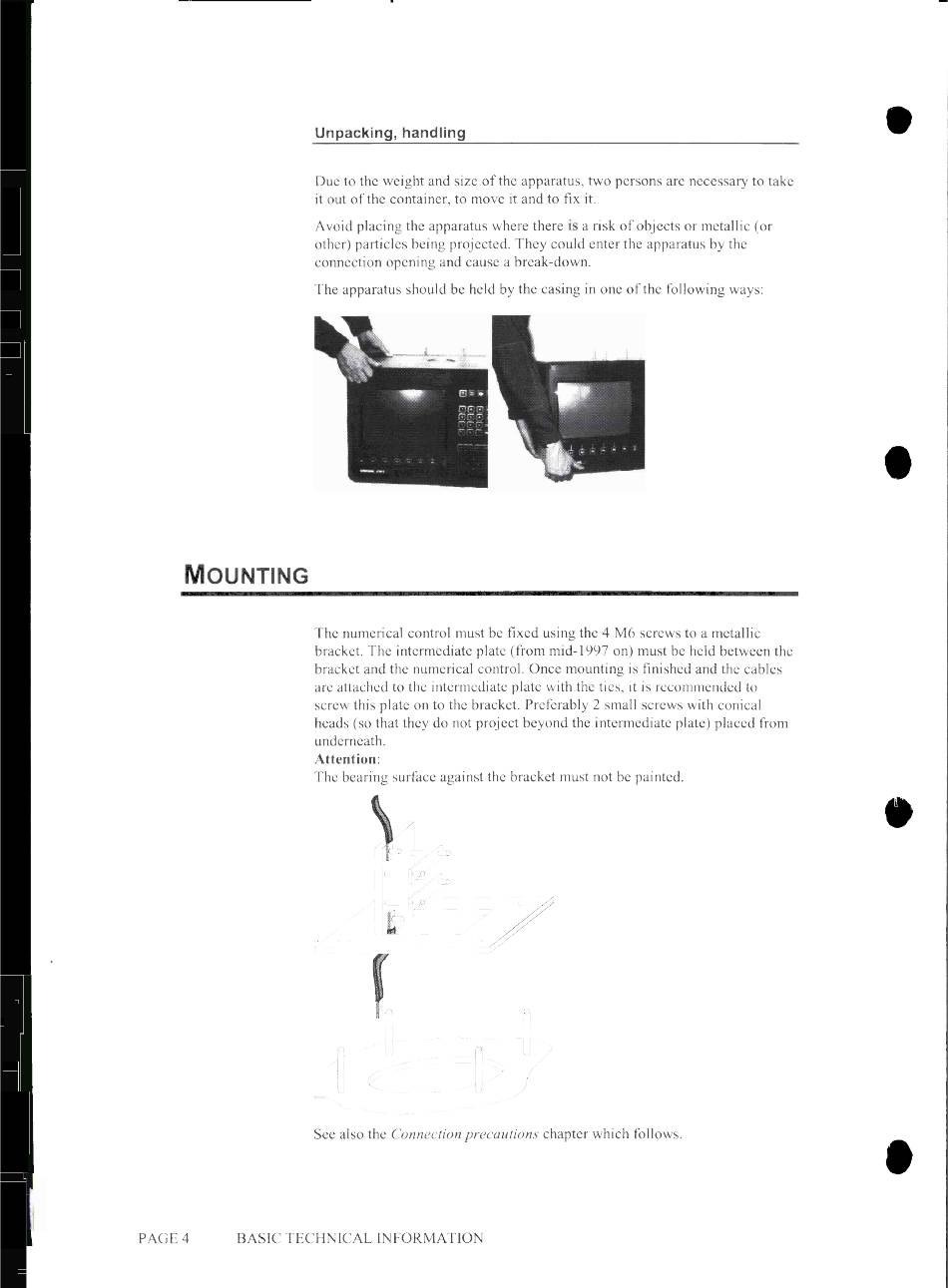

Unpacking, handlíng
Due to the weíght and síze of the apparatus, two persons are necessary to take
ít out of the contaíner, to move ít and to fix it.
Avoíd placíng the apparatus where there ís a risk of objects or metallíc (or
other) partícles being projected. They could enter the apparatus by the
connectíon openíng and cause a break-down.
The apparatus should be held by the casíng in one of the followíng ways:
MOUNTING
The numerical control must be fixed usíng the 4 M6 screws to a metallic
bracket. The íntermediate plate (from mіd-1997 0п) must be held between the
bracket and the numeńcal control. Once mountíng ís finíshed and the cables
are attached to the íntermediate plate wíth the tíes, it ís recommended to
screw this plate on to the bracket. Preferably 2 sma11 screws wíth conical
heads (so that they do not project beyond the intermedíate plate) placed from
underneath.
Attention:
The bearing surface agaínst the bracket must not be paínted.
See also the
Connection precautions
chapter whích follows.
.
•
.
.
PAGE 4
BASIC TECHN[CAL INFORMATION
