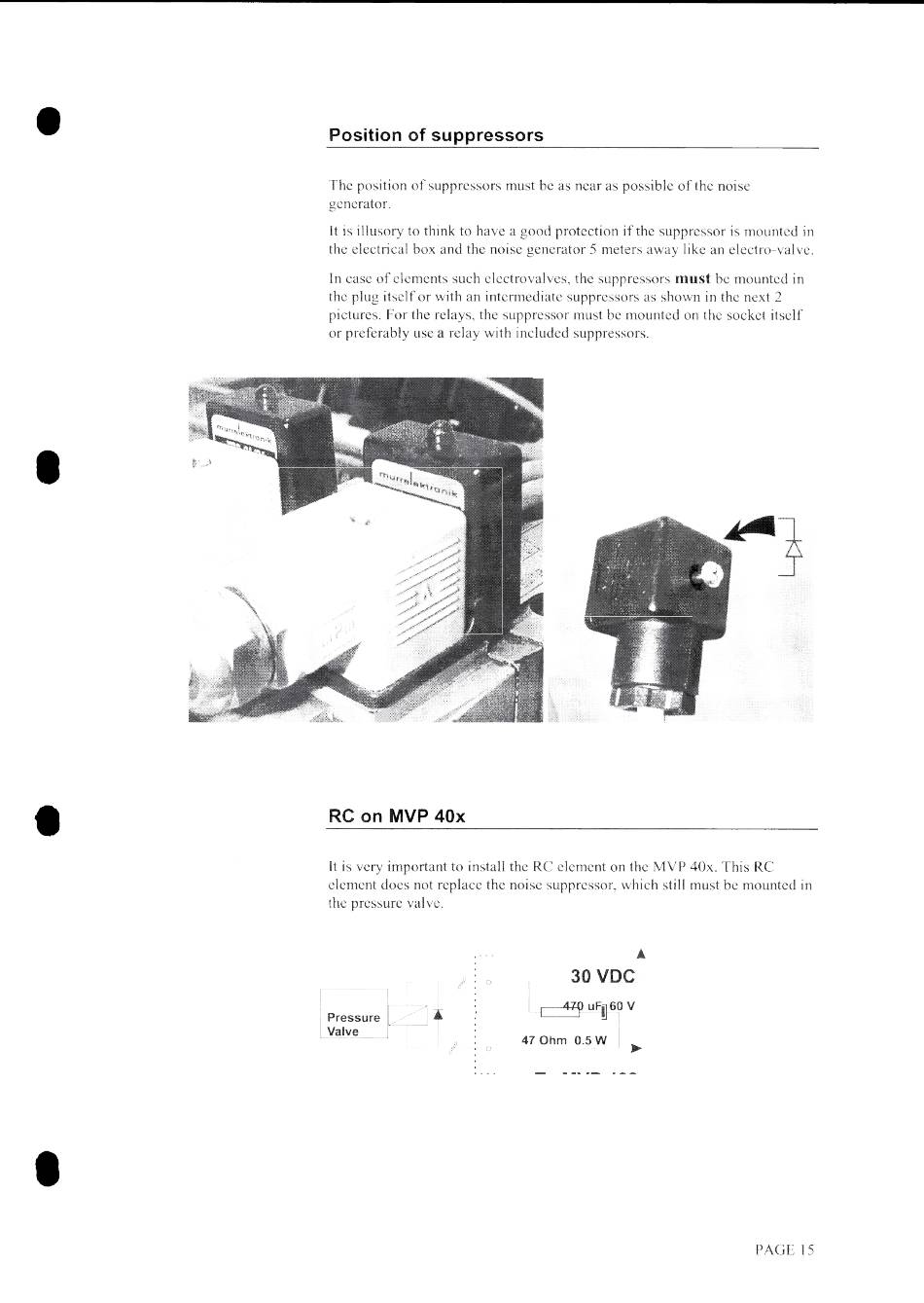

Posítíon of suppressors
The posítion of suppressors must be as near as possíble of the noíse
generator.
lt is illusory to think to have a good protectíon íf the suppressor is mounted ín
the electrical box and the noíse generator 5 meters away líke an electro-valve.
In case of elements such electrovalves, the suppressors must be mounted ín
the plug ítself or wíth an íntermedíate suppressors as shown ín the next 2
píctures. For the relays, the suppressor must be mounted on the socket ítself
or preferably use a relay with íncluded suppressors.
RC on MVP 40x
it ís very important to ínstall the RC element on the MVP 40x. Thís RC
element does not replace the noíse suppressor, whích sti11 must be mounted ín
the pressure valve.
Pressure
Va1ve
~
..
,~
0
30 VDС.
~ uFι]fi1 V
о
47 Ohm 0.5 W I'
PAGE 15
