Modelli di riferimento: / Reference Ducati Motorcycles:
SBK 1199

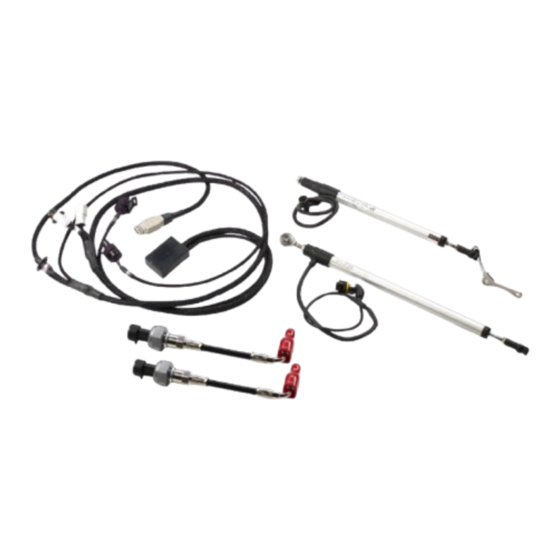

Kit acquisizione dati Ducati Corse Superstock / Ducati Corse Superstock Data Acquisition Kit - 96524111B
1 Cablaggio acquisizione dati
2 Vite anteriore
3 Potenziometro anteriore
4 Snodo completo
5 Distanziale anteriore
6 Braccialetto anteriore
7 Dado posteriore
8 Vite lunga posteriore
9 Distanziale posteriore
10 Piastrino potenziometro posteriore
11 Passacavo
12 Antivibrante
13 Potenziometro posteriore
14 Piastrino snodo posteriore
15 Rondella
16 Velcro "Dual Lock"
17 Assieme dime di rifila
18 Tubo
19 Fascetta
20 Tappo connettore
21 Sensore pressione
22 Guarnizione sensore
23 Tubo olio L=100mm
24 Tubo olio L=140mm
25 Vite olio doppio occhiello
26 Rondella rame
27 Basetta di supporto
28 Vite braccialetto
29 Boccola
(*)=I gruppi pressione olio impianti frenanti
NON vengono montati sulle versioni ABS.
1 Data acquisition wiring
2 Front screw
3 Front potentiometer
4 Complete joint
5 Front spacer
6 Front clamp
7 Rear nut
8 Long rear screw
9 Rear spacer
10 Rear potentiometer plate
11 Cable ring
12 Damping pad
13 Rear potentiometer
14 Rear joint plate
15 Washer
16 "Dual Lock" Velcro
17 Trimming template set
18 Tube
19 Tie
20 Connector cap
21 Pressure sensor
22 Sensor seal
23 Oil pipe L=100mm
24 Oil pipe L=140mm
25 Twin-eye oil screw
26 Copper washer
27 Holder plate
28 Clamp screw
29 Bushings
(*)= Brake system oil pressure units are
NOT assembled on ABS versions.
Cod. ISTR - 476
23
19
18
20
22
17

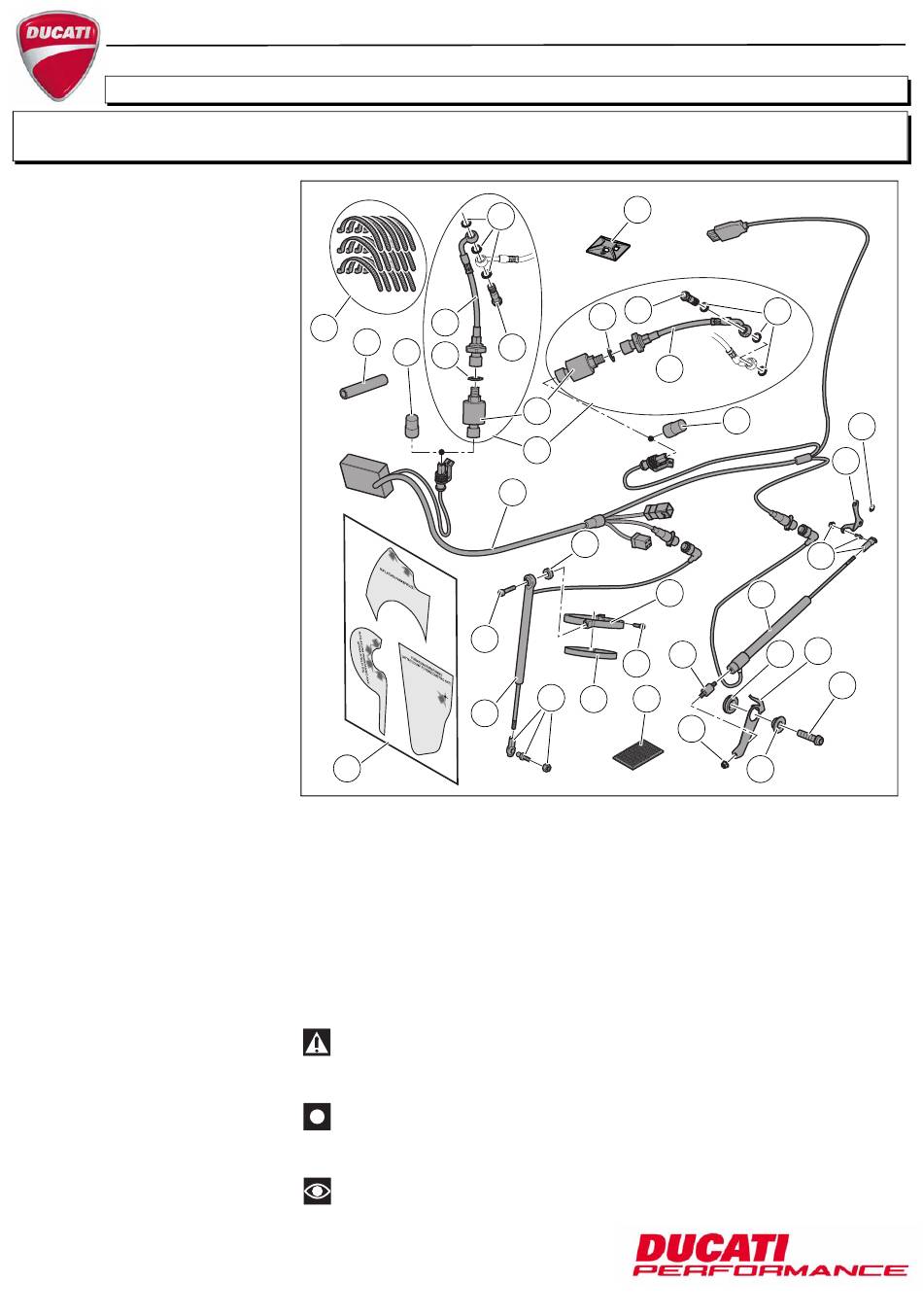

I particolari con riferimento cerchiato rappresentano l'accessorio da installare e gli eventuali
componenti di montaggio.
Quelli non cerchiati si riferiscono ai componenti originali che devono essere riutilizzati.
Per una lettura rapida e razionale sono stati impiegati simboli che evidenziano situazioni di
massima attenzione, consigli pratici o semplici informazioni.
Tutte le indicazioni destro o sinistro si riferiscono al senso di marcia del motociclo.
Part nos. that are circled represent the accessory to be installed and possible relevant fittings.
Part nos. that are not circled refer to original parts to be re-used.
For easy and rational reading, this document uses graphic symbols for
highlighting situations in which maximum care is required, practical advice or simple information.
Any right- or left-hand indication refers to the vehicle direction of travel.
Attenzione / Warning
La non osservanza delle istruzioni riportate può creare una situazione di pericolo e causare
gravi lesioni personali e anche la morte. / Failure to follow these instructions might give raise to
a dangerous situation and provoke severe personal injuries or even death.
Importante / Caution
Indica la possibilità di arrecare danno al veicolo e/o ai suoi componenti se le istruzioni
riportate non vengono eseguite. / Failure to follow these instructions might cause damages to the
vehicle and/or its components.
Note / Note
Fornisce utili informazioni sull'operazione in corso. / Useful information on the procedure
being described.
27
26
25
22
25
21
*
1
5
2
28
4
16
29
3
26
24
20
4
6
13
10
11
12
7
9
Pag. - Page 1/15
15
14
8
