Machine Description; Machine Structure And Controls - Nilfisk Advance SW 750 Manuel D'utilisation

ENGLISH

MACHINE DESCRIPTION

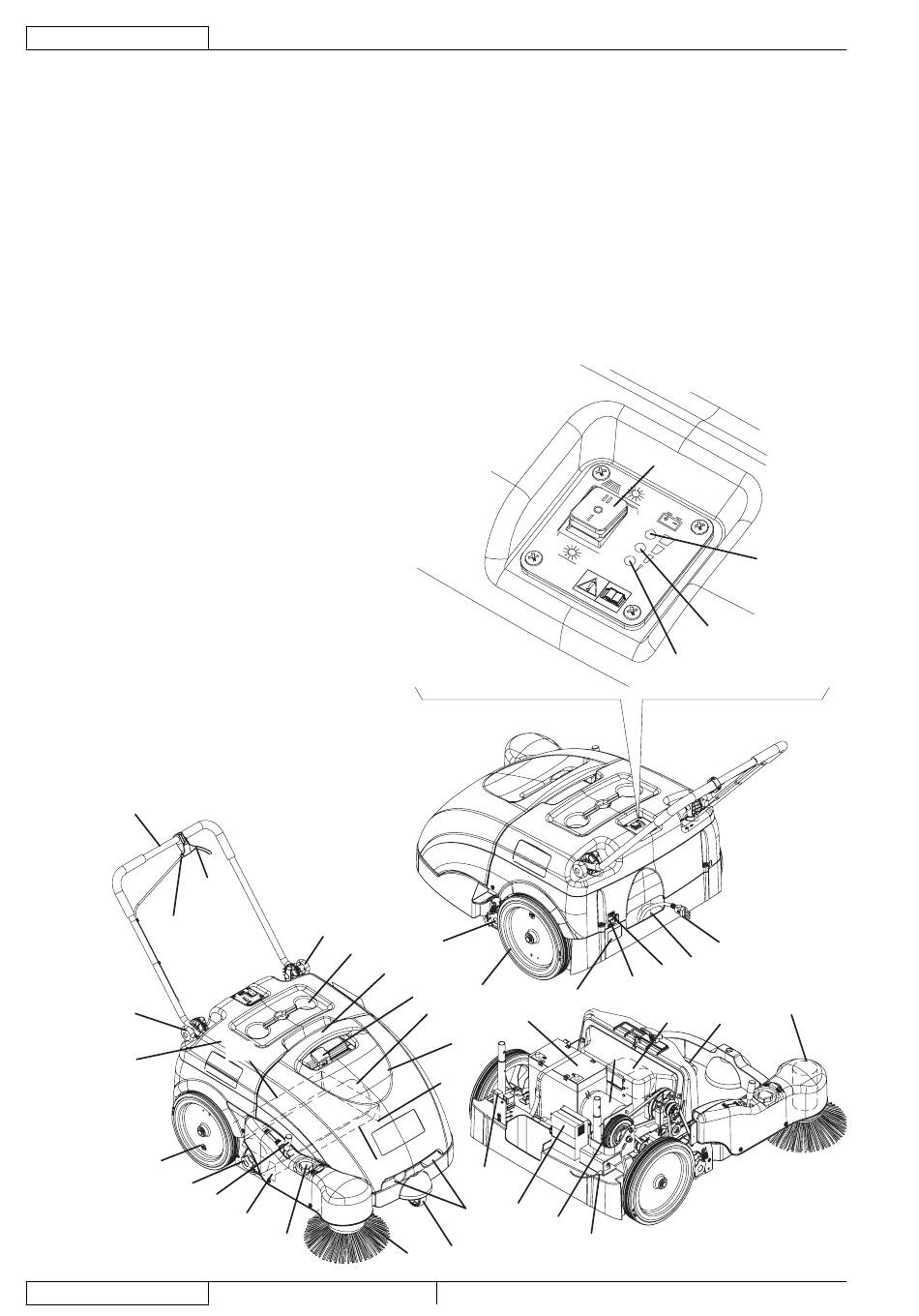

MACHINE STRUCTURE AND CONTROLS

1. Main switch for vacuum system, main broom and side
broom activation
2. Charged battery warning light (green)
3. Semi-discharged battery warning light (yellow)
4. Discharged battery warning light (red)
5. Drive control lever
6. Handlebar
7. Handlebar adjusting knobs
8. Filter shaker knob
9. Hopper
10. Front steering wheel
11. Side broom
12. Side broom lifting/lowering lever
13. Side broom height adjusting knob
14. Main broom
15. Main broom height adjusting knobs
16. Rear driving wheels
17. Can holder
18. Battery charger cable
19. Battery charger cable housing
20. Side broom motor circuit breaker
21. Main motor circuit breaker
22. Battery
23. Dust fi lter
24. Side broom motor
25. Main motor
26. Drive system gear
27. Vacuum fan
28. Battery charger
29. Vacuum system motor lamellar fuse (7.5 A)
6
37
7
30
16
15
12
6
USER MANUAL
5
7
17
36
35
34
13
146 3080 000(1)2006-10 A
30. Hood
31. Hopper upper handle
32. Hopper lower handles
33. Serial number plate/technical data/conformity certifi cation
34. Side skirts
35. Front skirt
36. Rear skirt
37. Drive system belt adjuster
15
31
8
16
14
22
9
34
29
32
28
26
10
11
SW 750
1
3
4
18
20 19
21
33
27
23
25
37
2
24
S311348
