Installation instructions, for professionals only

6.7. Out-time (I/0/I)

DIP-Bank 3
Function selection switch 1 – 5
Note: To activate the Off-time, additional
settings are required, see 6.1. Operating
mode on page 20 and Fig. 18: Timer I/0
operating mode on page 30 and Fig. 19:
Timer I/0/I operating mode on page 30
Function of the Off-time: the output switches off after the set time (see 6.6. On-time
(I/0 and I/0/I) on page 26) and remains inactive for the Off-time. Depending on
the setting of the operating mode (see 6.1. Operating mode on page 20), the
infrared controller remains inactive or activates again after a set time.
Off-time: Setting the timer (timer function). Switching position of the required
value to ON according to the following table.
x10 – multiplicator (6): The timer set above the value is multiplied by 10.
OFF = deactivated, ON = activated
sec/min – unit (7): Switching from seconds to minutes.
OFF = seconds, ON = minutes
Example: Setting time 210 minutes

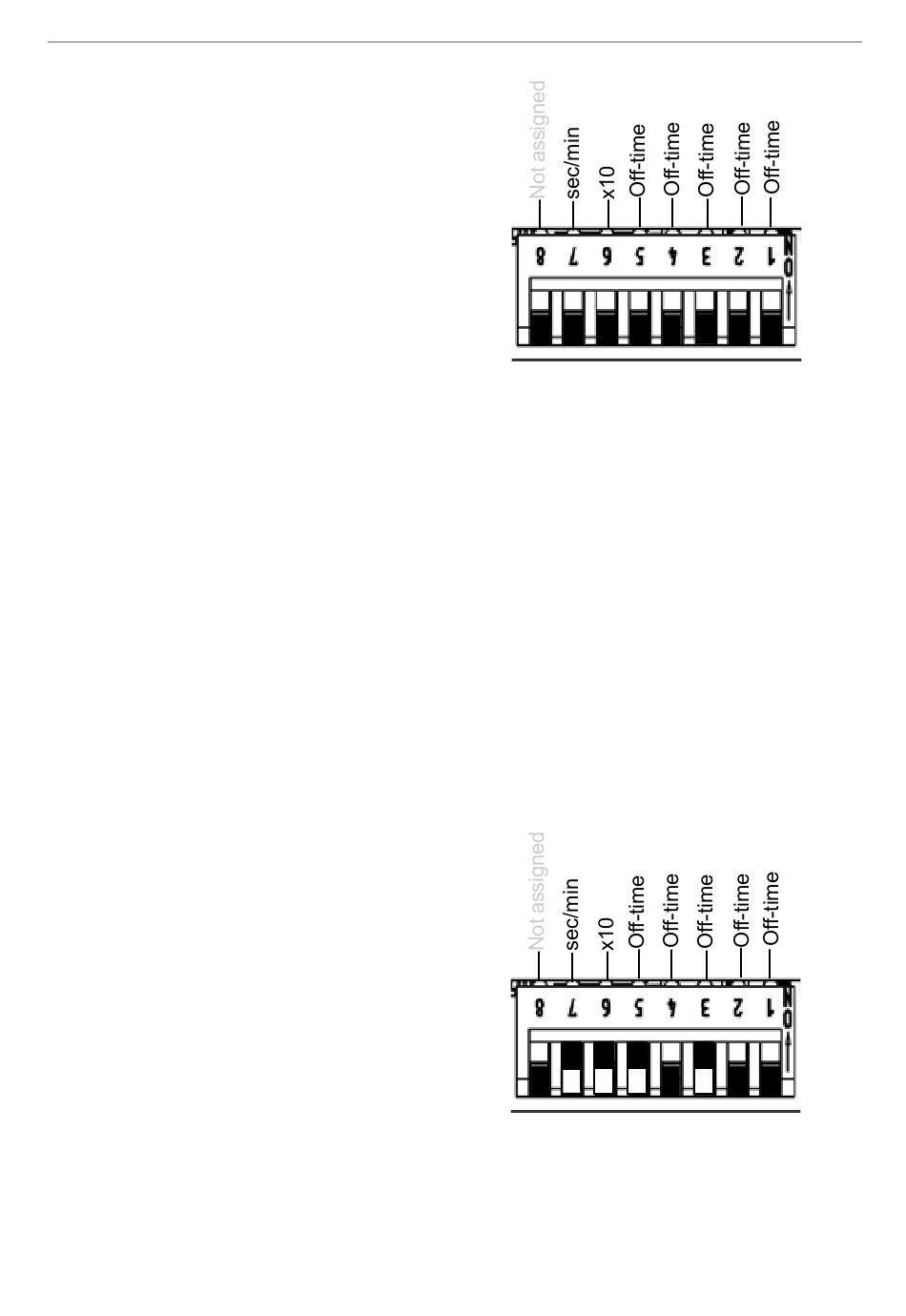

Fig. 16:Off-time
Fig. 17:Example for Off-time
p. 28/44
ON
OFF
ON
OFF
