Installation instructions, for professionals only
5.

Electrical connection

Observe the following points when connecting the power to the infrared controller:
● Work on the infrared controller may only be performed when the power has
been disconnected.
All components on the Infrabox power supply unit are connected as shown in
the figures below:

5.1. Connection area for sensor/control unit

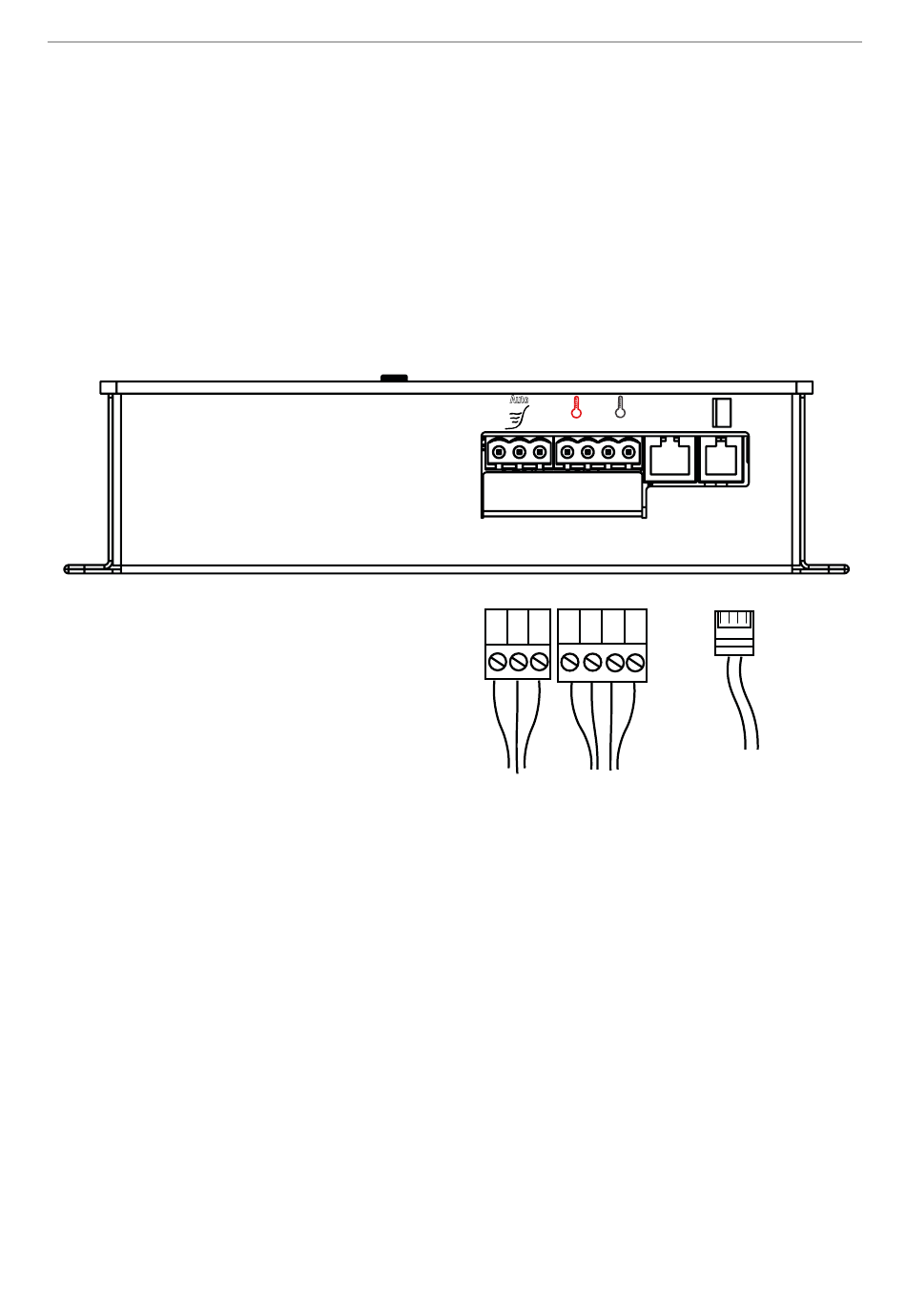

Fig. 6: Connection area for sensor/control unit
Seat sensor (optional)
1
Foil temperature sensor (FF)
2
Safety temperature limiter (STB)
Infrabox control unit
3
Auto
STB
FF
rd wt bk
1 2
rd = red = rot
wt = white = weiß
bk = black = schwarz
p. 14/44
