6.1. Operating mode

DIP-Bank 1
Function selection switch 1 and 2
In the operating mode the following
settings are possible:
Function selec-
tion switch
Normal
Timer I/0
Timer I/0/I
Seat (optional)
Normal: Dimmable light / fan. Switchable or dimmable infrared heater/infra-
red plate.
Activating the dimming function of the infrared heater/infrared plate is done via
the infra-controller, see 6.2. Operating type (infrared heater/infrared plate) on
page 21.
Timer I/0 (On/Off): In the operating mode, On/Off switches the controls off after
the set On-time has elapsed and is not activated again.
Dimmable light / fan. Switchable infrared heater / infrared plate.
For additional settings, see 6.6. On-time (I/0 and I/0/I) on page 26 and Fig. 18:
Timer I/0 operating mode on page 30.
Timer I/0/1 (On/Off/On): In the operating mode, On/Off/On switches the infrared
controller off after the elapsed On-time and, after the set Off-time, is activated
again for the duration of the On-time.
Dimmable light / fan. Switchable infrared heater / infrared plate.
For additional settings, see 6.6. On-time (I/0 and I/0/I) on page 26, 6.7. Out-
time (I/0/I) on page 28 and Fig. 18: Timer I/0 operating mode on page 30,
Fig. 19: Timer I/0/I operating mode on page 30.
1 2
OFF OFF
ON OFF
OFF ON
ON ON

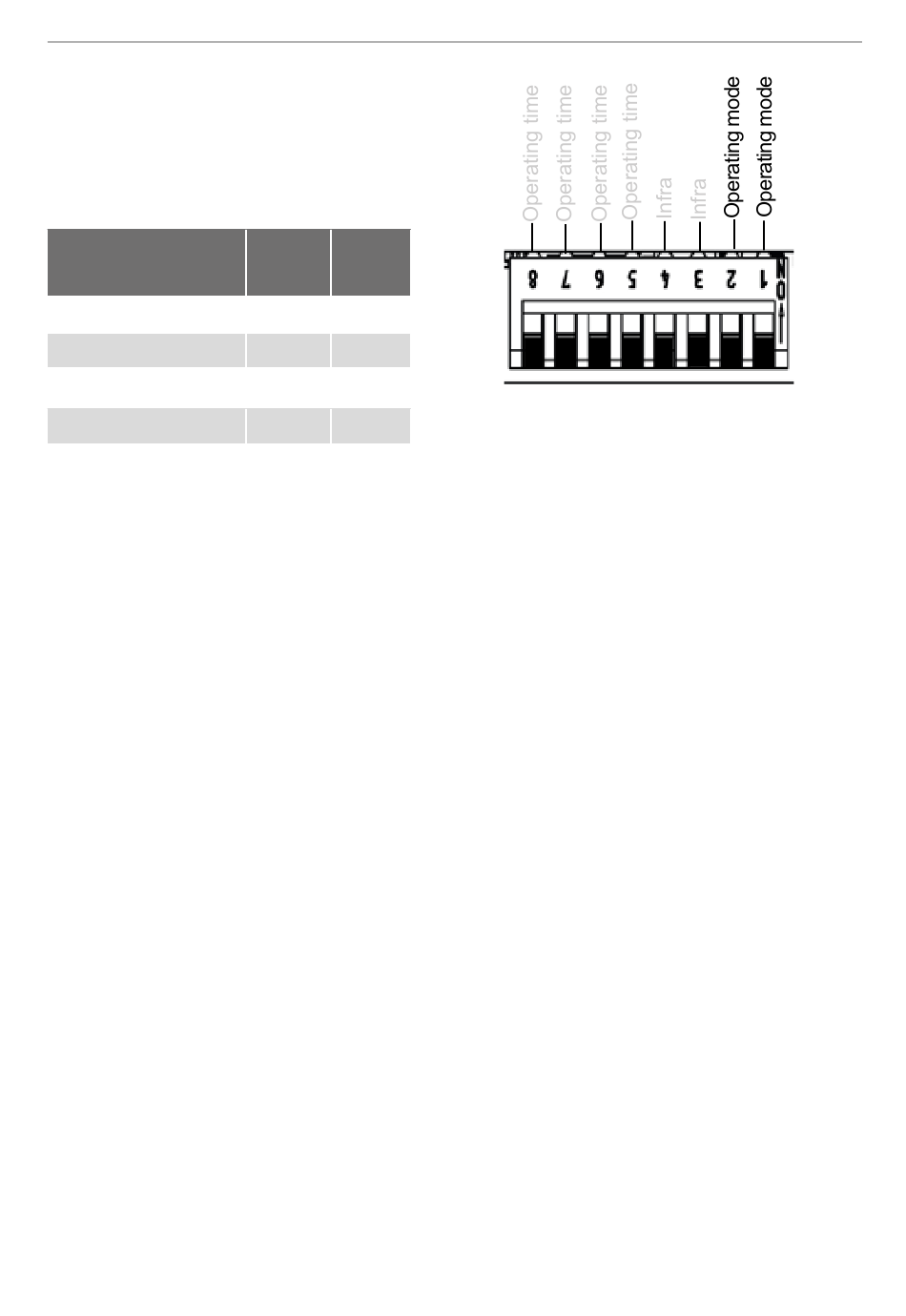

Fig. 9: Operating mode
p. 20/44
ON
OFF
