1. For your safety

This documentation contains important information
regarding the mounting and the safe operation of the door
system.
Please read these instructions carefully before using the
ED 200 .
It is important for your personal safety to abide by all
enclosed instructions.
An incorrectly performed installation might cause serious
injuries.
Using control elements, making adjustments or performing
procedures that are not described in this documentation
might cause electric shocks, danger caused by electric
voltage/current and/or danger due to mechanical incidents.
Please keep these documents for further reference and hand
them over to the person in charge in case the system is
transferred to another party.
Explanation of symbols
NOTE This symbol underlines important
information that may facilitate your
work.
REMARK This symbol warns you of possible
system damage and explains how to
avoid this damage.
WARNING This symbol indicates dangers that
might cause personal or material
damage or even kill people.
Intended application
As electromechanical/electrohydraulic operator, the
is only designed to open and close interior swing doors with
an admissible door-leaf weight up to 250 kg. It can also be
installed in emergency exits and escape routes and is
suitable for fire and smoke doors.
The maximum cable length for external components must
not exceed 30 m.
The system is connected to the door leaf via: slide channel
or standard arm.
Limitation of liability
The ED 200 may only be used according to its specified
intended application. Eigenmächtige The
Co. KG will not accept any liability for damage resulting
from unauthorised modifications of the
Furthermore components/accessories that have not been
approved by DORMA are exempted from liability.
Safety instructions
Work on electrical equipment may only be performed
by properly qualified staff (electricians).
•
Do not allow children to play with the
adjustment and control devices.
•
Keep remote controls out of reach of children.
•
Never stick metal objects into the openings of the
200; otherwise you might sustain an electric shock.
•
If the ED 200 is mounted onto a metal door leaf, you
have to earth (ground) the door leaf properly.
•
Glass door leaves have to be made of safety glass.
Important technical data
•
Weight of ED 200
•
Power supply
•
Power consumption
•
Operating noise
ED 200
194 605-01-6-50
ED 200
DORMA GmnH +
ED 200 .
ED 200 or its
ED
18 kg
230V DC + - 10%
150W
< 70 dB(A)
Standards, laws, codes and regulations
•
The latest versions of the common and country-
specific standards, laws, codes and regulations have to
be observed.
Information/provisions regarding the application of the
ED 200 at fire and smoke doors:
•
Please consider the technical bulletin for the
application of hold-open devices.
•
Richtlinien für Feststellanlagen des Instituts für
Bautechnik, Berlin benutzen.
DIN 18650 (German Industrial Standard)
During the planning of the door system, the manufacturer
(the person installing the system) and the
commissioner/facility operator have to perform an individual
risk assessment (together).
Please refer to our homepage www.dorma.com
the provided "risk assessment form" under
further assistance when performing your individual risk
assessment.

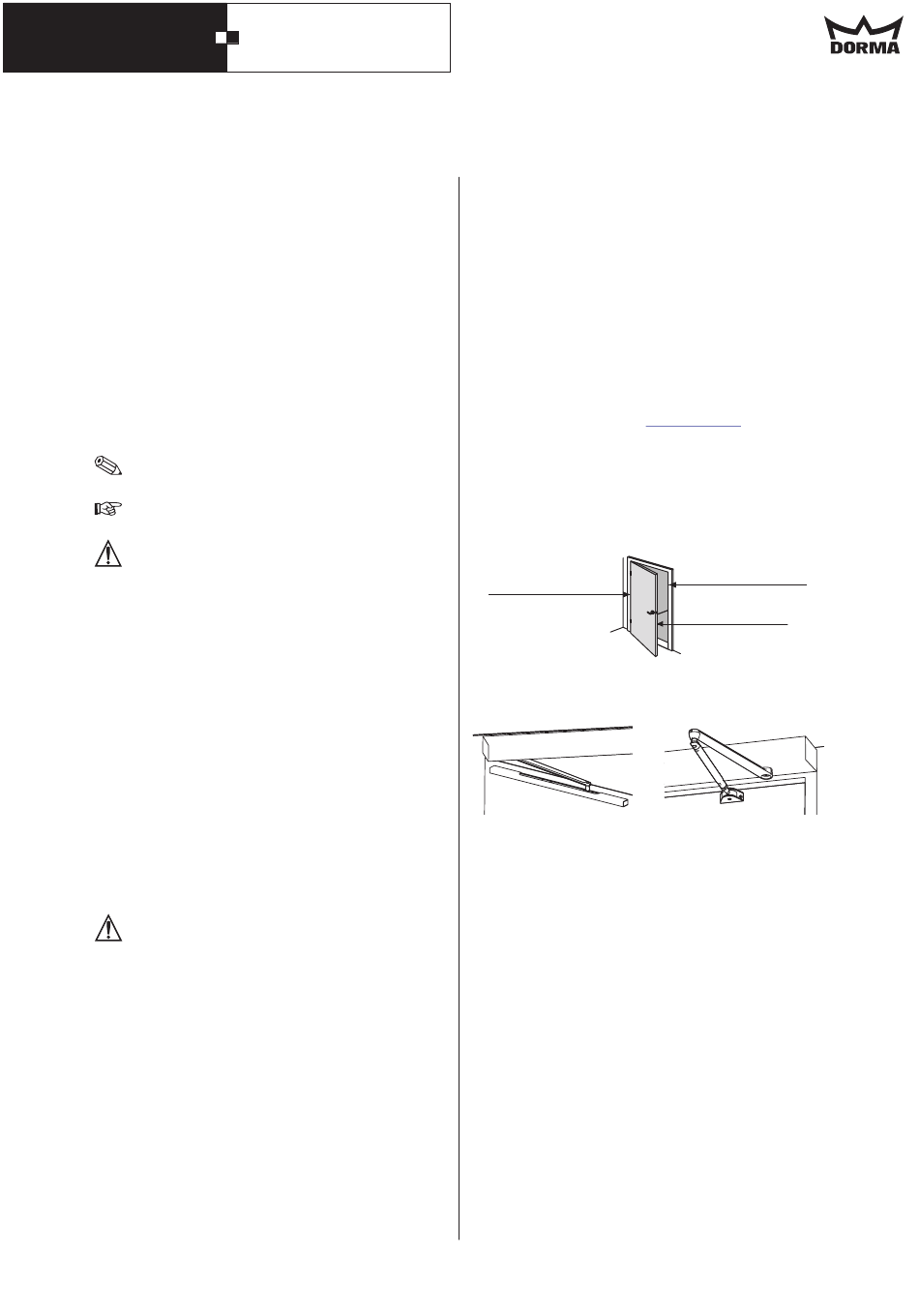

Dangers at closing edges
Automatic doors might cause hazards by crushing,
shearing, hitting and drawing-in at the different
closing edges.
Secondary closing edge
Dangers caused by slide channel and arm
The slide channel and the arm might cause hazards by
crushing and shearing.
Residual risk
Depending on the structural conditions, the prevailing door
version and the available safety equipment, residual risks
such as crushing and hitting (with a limited force) cannot be
excluded.
All people using a door are generally aware of the danger
spot at the secondary closing edge of every swing door (also
at manually operated doors).
This danger spot cannot be influenced by the manufacturer
of the operator and a protection of this closing edge often
cannot be realised due to its construction and technical
function.
A suitable clamping protection (like a rubber or textile
cover) is available in the specialised trade and not part of
the scope of delivery.
and consider
PRODUCT for
Opposing closing edge
Main closing edge
5
