Installation instructions, only for experts

4.6. Electrical connection

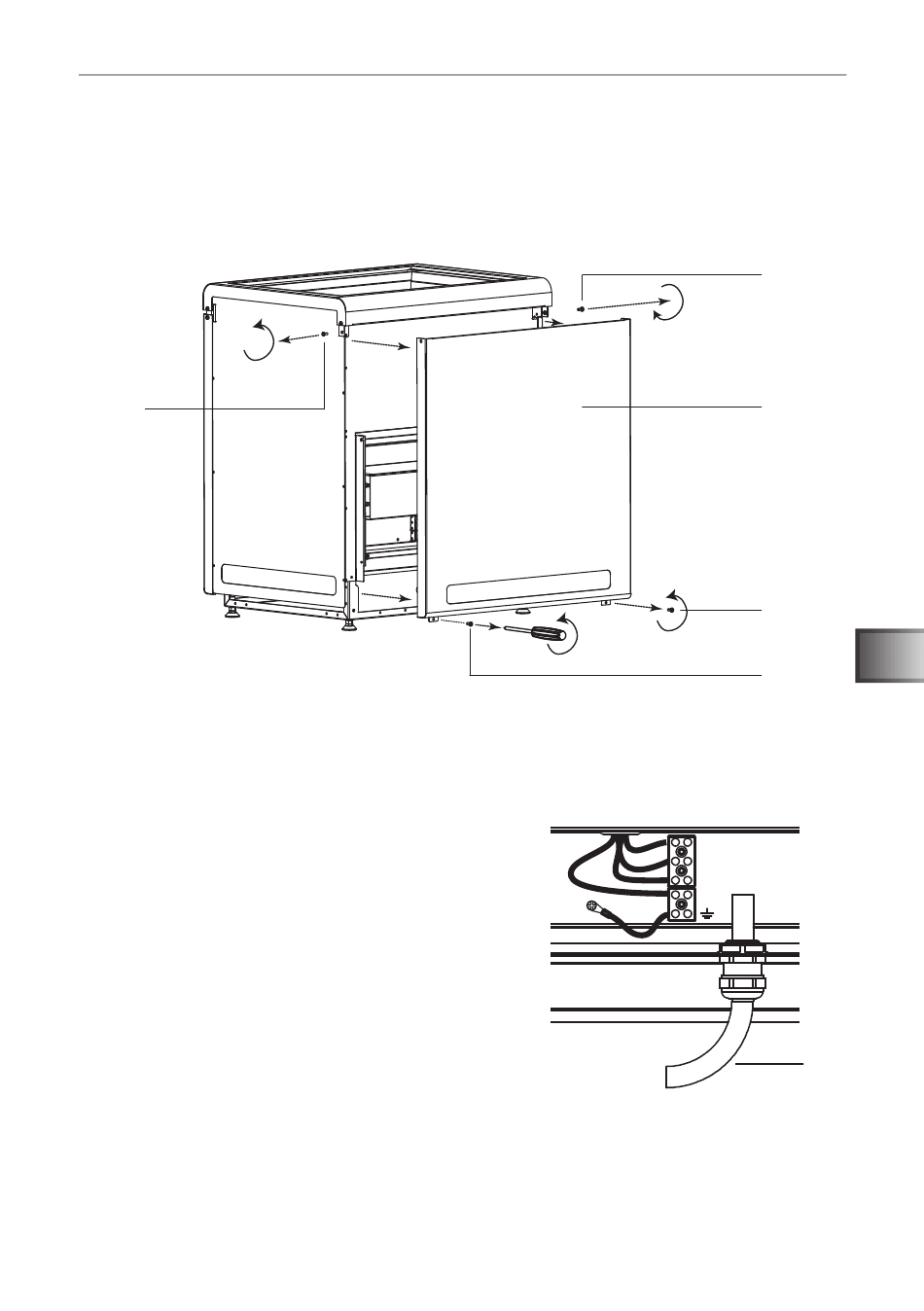

1. Unscrew the screws 3 and 4 with a screwdriver.
2. Unscrew the screws 1 and 5 with a screwdriver.
3. Remove the cover panel 2.
5
Connection of Concept R 9 kW and 10.5 kW
(CP-R-090 / CP-R-105 / CP-RB-090 / CP-RB-105)
1. Guide the connection cable through the
feed-through 6.
2. Connect the connectors of the connection
cable to the U – V – W – N – PE terminals
of the sauna heater and to the applicable
control device terminals. Observe the in-
stallation instructions for the control device
when doing so.
3. Reattach the cover panel 2 to the heater.
