2.4.0 MOUNTING OF THE LIGHTING

When installing the lighting it must be ensured that these are installed as far as possible from the
sauna heater (preferably in the opposite corner).
The sauna light must conform to the 'splashproof' protection class.
The sauna light must be designed for an ambient temperature of 140° C.
You can connect the cabin light to the power unit of the Wave.com4 sauna control
unit.

2.5.0 MOUNTING OF THE OPERATING UNIT

Use a commercially available Ø 70 mm hole cutter
to mount the operating unit.
The internal display is affixed on the cabin wall at the end
of the cable duct.
The cabin wall may only be drilled
as far as the insulation material.
The RJ10 4/4 may only run to the
power unit between the external and
internal wood panelling.
The Wave.com4 operating unit is appropriate for installation inside or outside of the
cabin (it must conform to the ambient parameters in accordance with the technical
data in these operating instructions)!
Never remove the plastic protective cover on the reverse of the operating unit!
WE DO IT FIRST.
Interior view

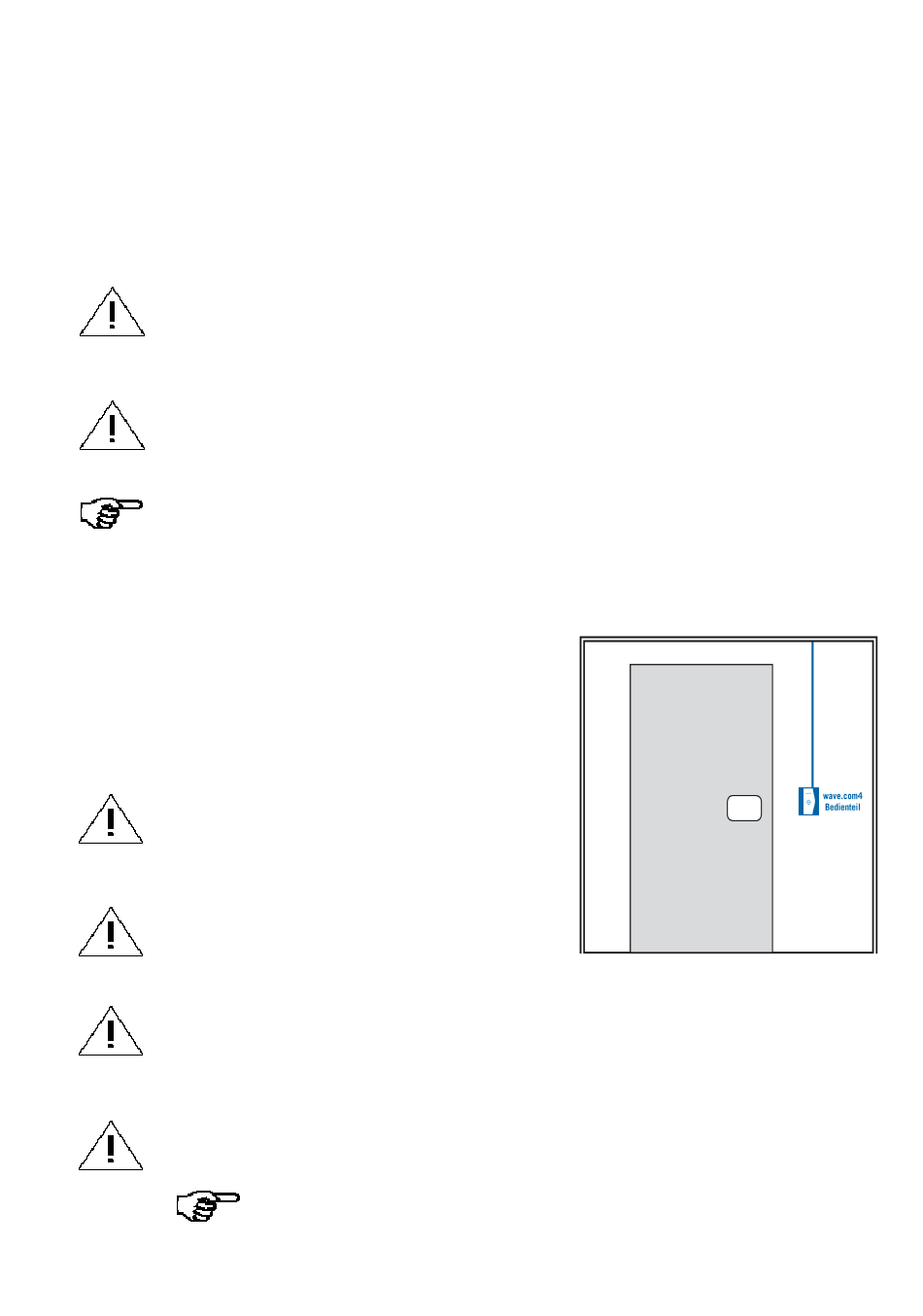

Figure 29: mounting of the operating unit
