2.3.1 Mounting of the heater sensor

The heater sensor (4-wire) consists of a
temperature sensor and a thermal fuse
(safety fuse). The wooden sensor casing
(optionally available in aspen) is mounted on
the cabin ceiling above the sauna heater.
The distances to be complied with can be
found in Figures 9 and 10, whereby it must be
heeded that the distance to the cabin wall
must be 19 cm for sauna cabins of up to 2
x 2 m, for larger cabins it must be 35 cm,
unless another position is explicitly specified
in the cabin description.
Drill through the cabin ceiling with the aid of
an 8 mm drill in accordance with Figure 9.
Install the sensor cables through the shaft
which has just been drilled.
Ensure that no cable is damaged
when feeding in the sensor cables
(silicone cables can be damaged very
easily).
You can recognise the respective
circuit (temperature sensor circuit or
temperature limiter circuit) from the
marking on the sensor cables.
WE DO IT FIRST.

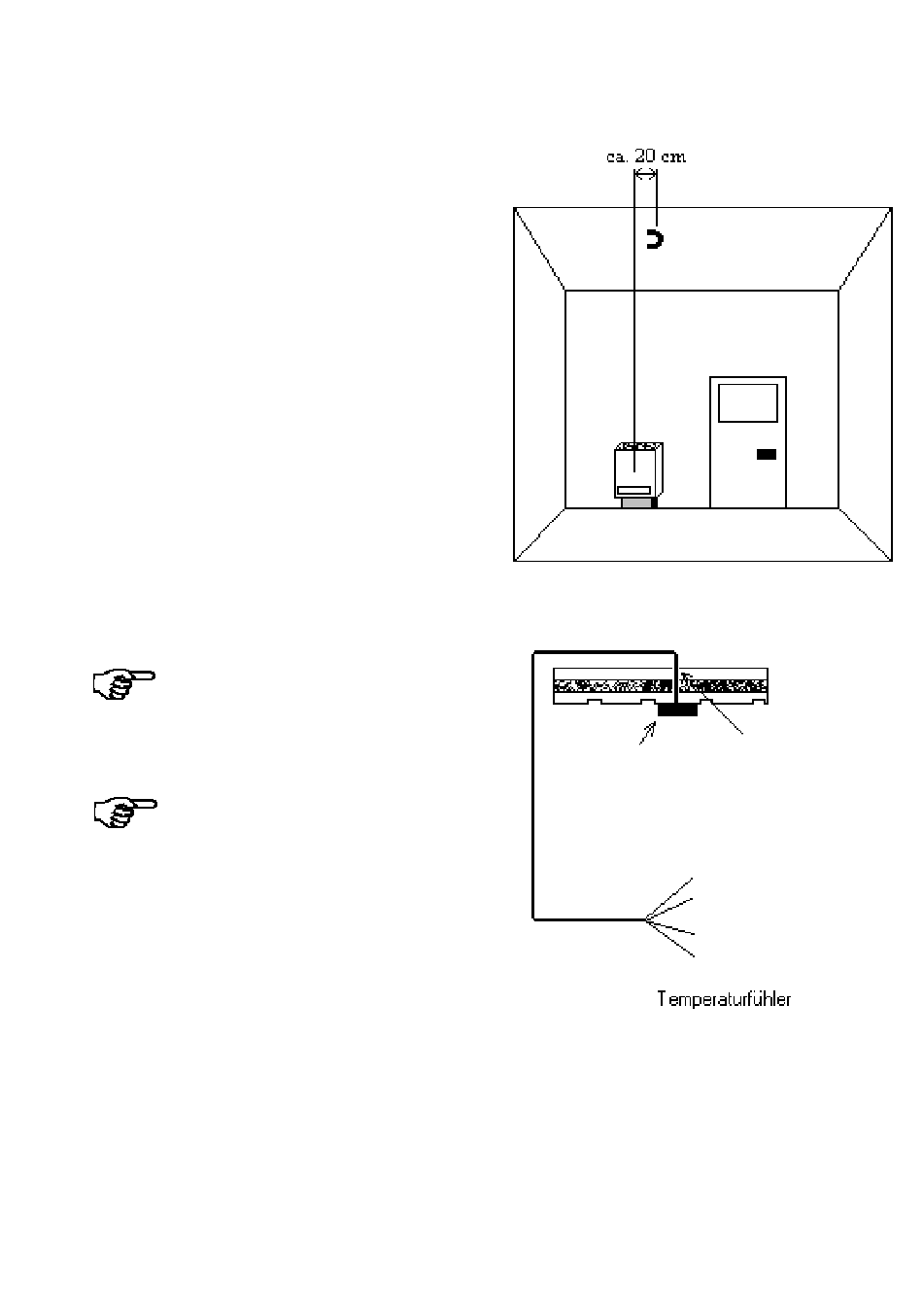

Figure 25: mounting heater-sensor
Body F1
Figure 26: setting of the heater sensor
Saunas ceiling, pierced in the
middle of a profiled board
Thermal protector for your
security
Clamp
Clamp
Clamp
Clamp
