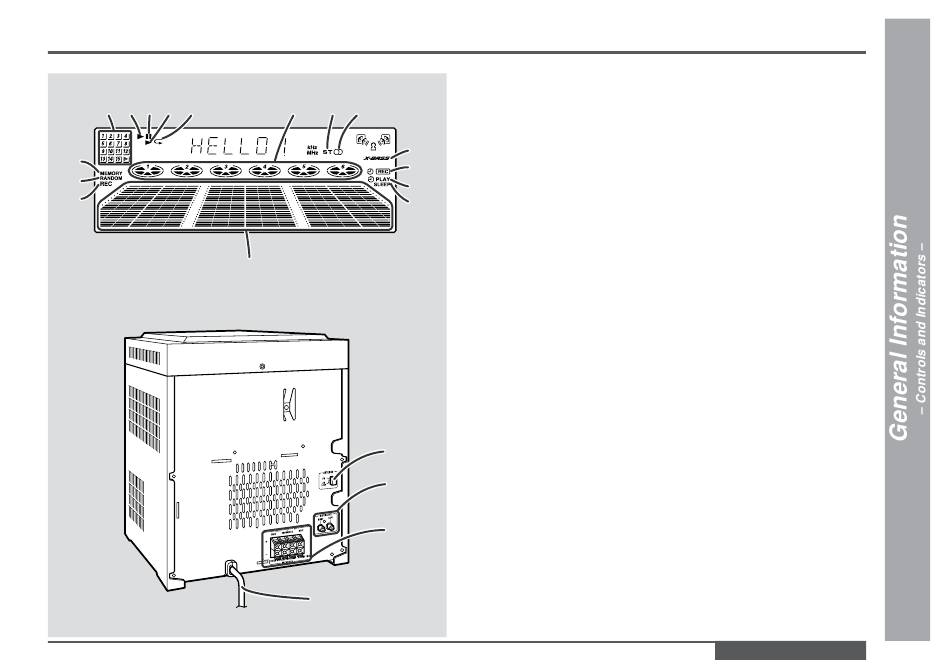

■ Display
1.
CD Music Schedule Indicators
2.
CD Play Indicator
3.
CD Pause Indicator
4.
Tape Play Indicator
5.
CD Repeat Indicator
6.
CD Indicators
7.
FM Stereo Mode Indicator
8.
FM Stereo Receiving Indicator
9.
Memory Indicator
10.
CD Random Play Indicator
11.
Tape 2 Record Indicator
12.
Extra Bass Indicator
13.
Timer Recording Indicator
14.
Timer Play Indicator
15.
Sleep Indicator
16.
Spectrum Analyzer/Volume Level Indicator

■ Rear panel

1.
FM/AM Loop Aerial Socket ........................................................... 7, 8
2.
Video/Auxiliary (Audio Signal) Input Sockets .............................. 25
3.
Speaker Terminals ......................................................................... 7, 8
4.
AC Power Lead .............................................................................. 7, 8
