Installation of indoor unit

SELECTION OF INSTALLATION LOCATION.
Such a place where cool air can be distributed
●
throughout the room.
Such a place where condensation water is easily
●
drained out.
Such a place that can handle the weight of indoor unit.
●
Such a place which has easy access for maintenance.
●
●
The appliance shall not be installed in the laundry.
THERE ARE 2 STYLES OF INSTALLATION.
●
CEILING TYPE
FLOOR TYPE
●
Each type is similar to the other as follows;
Indoor unit
The indoor unit should be sited in a place where:
1) the restrictions on installation specified in the indoor
unit installation drawings are met.
2) both air intake and exhaust have clear paths met.
3) the unit is not in the path of direct sunlight.
4) the unit is away from the source of heat or steam.
5) there is no source of machine oil vapour (this may
shorten indoor unit life).
6) cool(warm) air is circulated throughout the room.
7) the unit is away from electronic ignition type fluorwscent lamps
(inverter or rapid stert type) as they may shorten the remote
controller range.
8) the unit is at least 1 metre away from any television or radio
set(unit may cause interference with the picture or sound).
CAUTIONS FOR INSTALLATION WHERE
A IR CONDITIONER TROUBLEIS LIABLE
TOOCCUR.
Where there is too much of oil area.
●
Where it is acid base area.
●
Where there is irregular electrical supply.
●

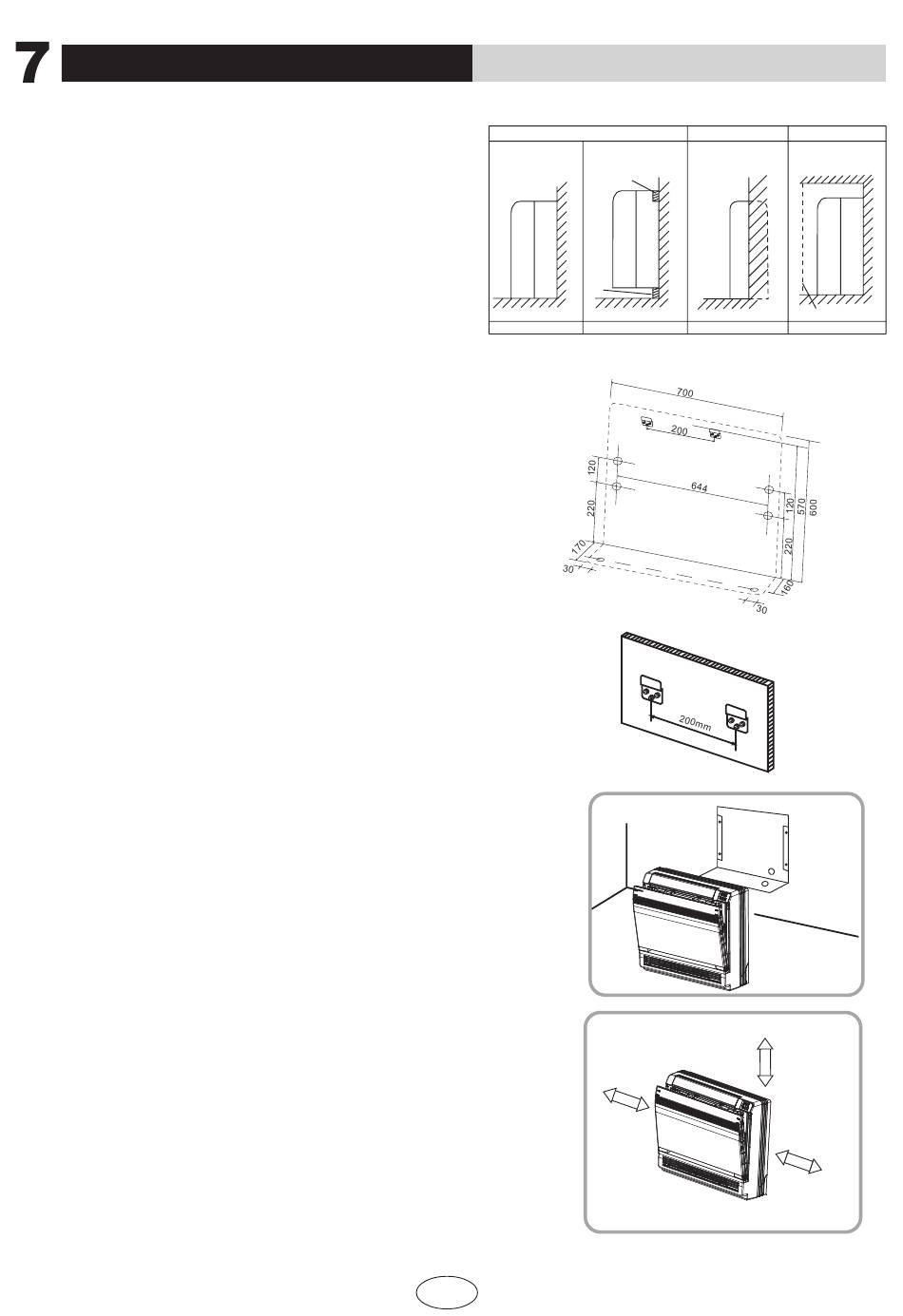

Indoor Unit Installatio n Drawings
The indoor unit may be mounted in any of the three styles shown here.
Console unit shall be installed on the ground or the position where is 0.3m from the floor.
Exposed
Mounting plate
Molding
Floor lnstallation
Location for securing the installation panel.
Schematic drawing of hooks:
20

INSTALLATION INSTRUCTIONS

Half conceated
Wall Installation
INSTALLATION
PAPER PLANK
70mm
or more
50mm
or more
Concealed
Grid(field supply)
50mm
or more
