System description

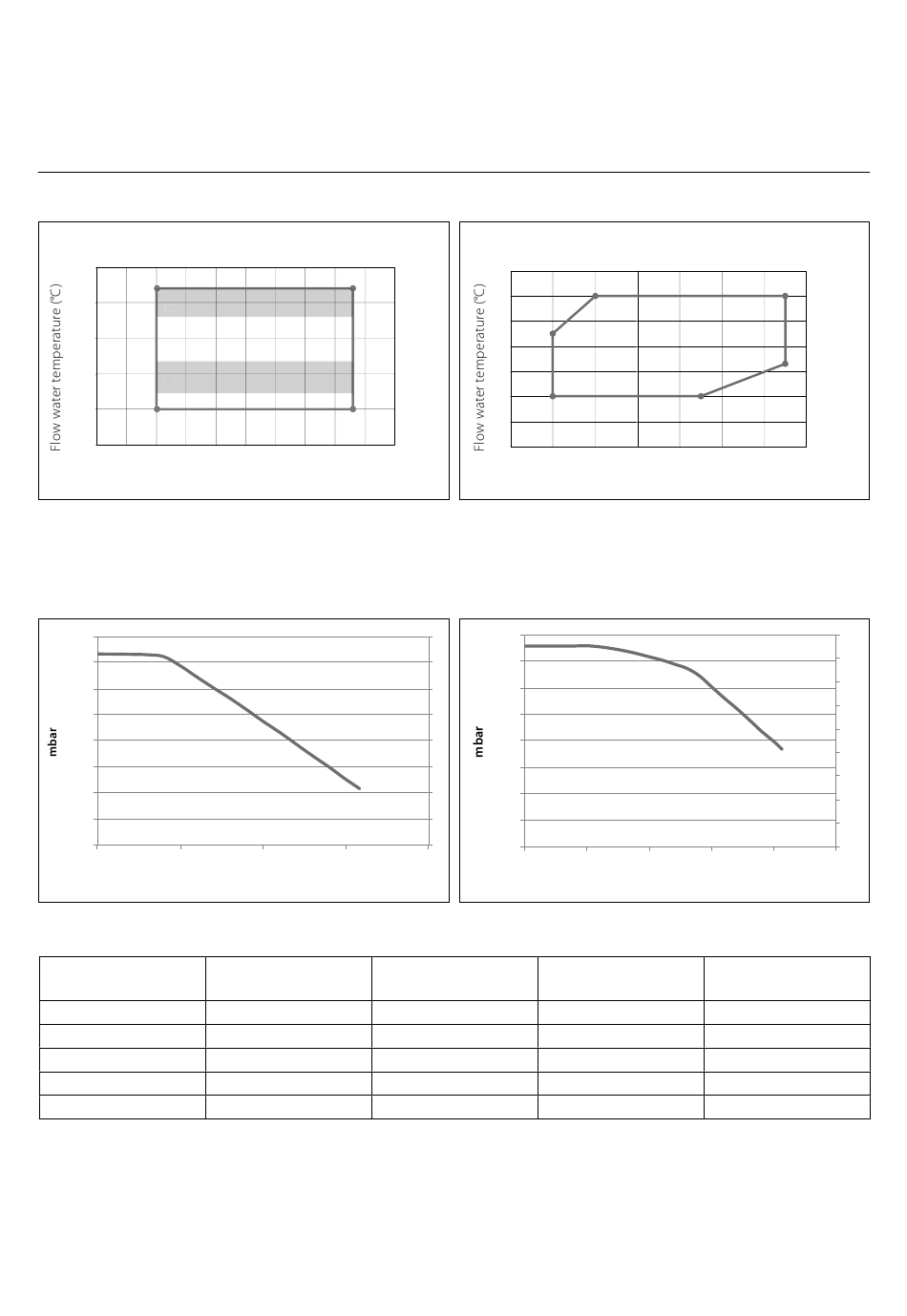

Thermodynamic performance of External unit in heating/cooling mode

Restrictions of cooling operation
A
25
(10 ; 23)
20
UF UF
15
10
FC FC
5
(10 ; 5)
0
0 5 10 15
External air temperature (°C)
AVAILABLE PRESSURE
Pressure available for distribution on the installation.
800
700
600
500
400
300
200
100
0
0 500
Available pressure for sizes: 04M-RX - 05M-RX - 07M-RX - 07M-R
System Size
04X
05X
07X - 07
09
11
Available pressure
The curves indicated above show the available pressure of internal units.
In order to have a correct sizing of the system, the pressure drop curve of the entire circuit (in function of the nominal fl ow rate)
must stay below the available pressure curve everywhere. Pressure drop values depend on the specifi c installation.
You can install a supplementary circulation pump if the module's own unit is not powerful enough. For the electrical hookup,
refer to «Electrical circuit».
Warning: in case of installation of thermostatic valves on all terminals or zone valves, install a bypass to ensure the minimum
operating fl ow rate.
62 / GB
