KESO KEK Genie Knob
2.5.2 Inserting new batteries
Steps A -E

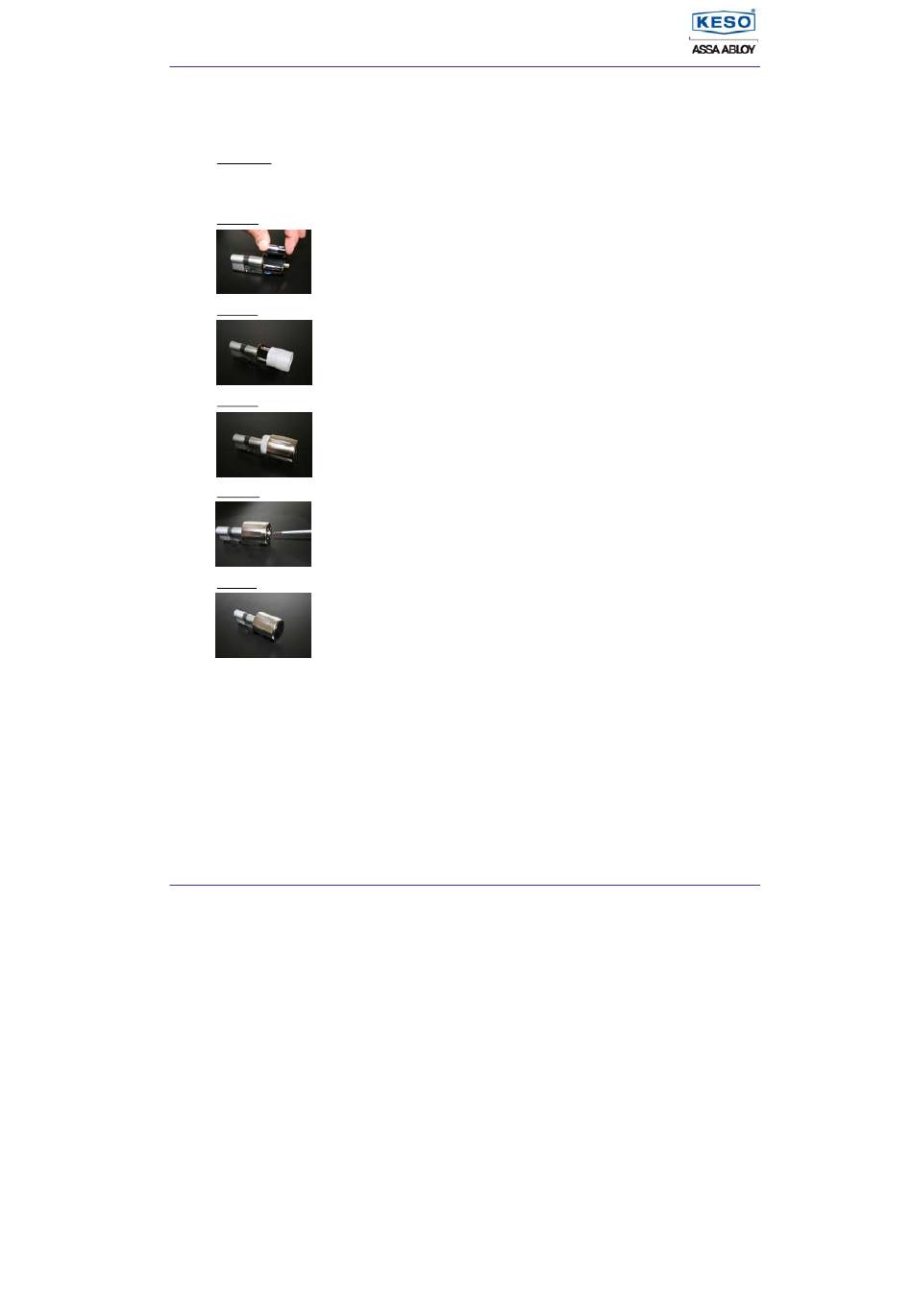

Insert the new batteries as described in the individual steps below. Each step is shown in the
photos on the left-hand side. Insert the battery step by step as indicated in the instructions.
Steps A
Insert the three batteries as indicated by the battery symbols. Make sure you
have the positive and negative poles in the right position. If batteries are
inserted incorrectly, you may damage the knob electronics.
WARNING: Do not use rechargeable batteries!
Steps B
Now carefully slide the white plastic casing over the battery and electronics.
Make sure you don't trap or damage the actuator wire (blue).
Steps C
Then slide the metal knob casing completely over the white plastic casing.
Ensure the KESO KEK Genie Knob hexagonal pin (knob pivot spindle) is fully
inserted into the knob casing.
Steps D
Tighten the securing screws using a TX20 key.
Make sure you don't forget the washer. Do not over tighten the screws.
Steps E
Finally, fit the knob cover over the metal knob casing.
