the truck.
Movement
Lift locking device (28.2)
the battery level indicator.
MAINTENANCE (20.6+X39)
Note. Disconnect the master switch before carrying out any maintenance operation.

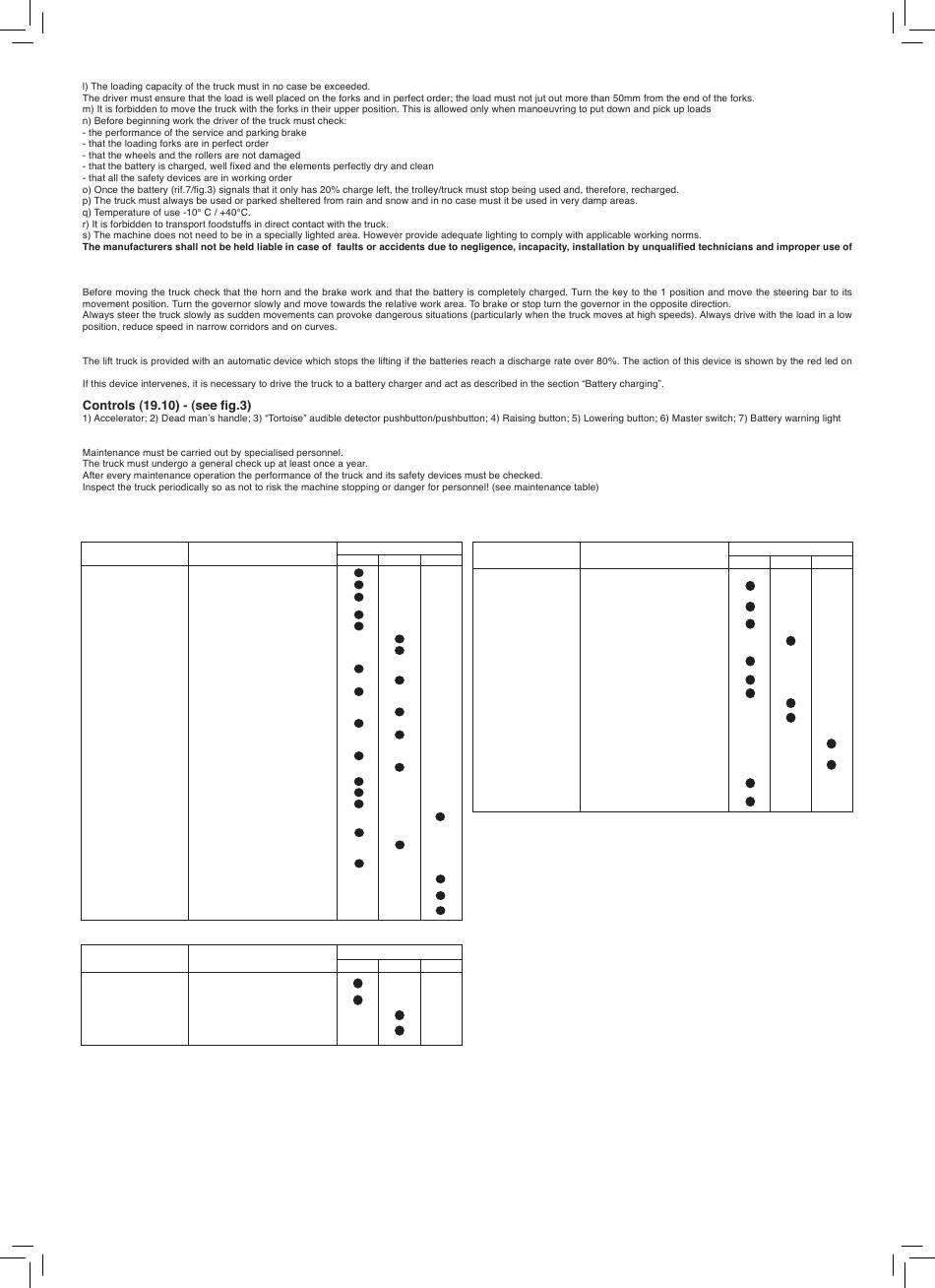

Maintenance table
ELEMENT CHECKS
STRUCTURE Check load bearing elements
AND FORKS
Check nuts and bolts are tightened
Check for backstops and play
Check performance
BRAKES
Check lining for wear
Check braking power
Check play (about 0,4 mm)
WHEELS Check wear
Check bearing play
Check anchorage
STEERING BAR Check playu
Check sideways movement
Check return to vertical position
ELECTRICAL SYSTEM Check wear of remote control switch
Check connections, cable trouble
Check master switch
Check horn
Check dead man's button
Check fuse values
HYDRAULIC SYSTEM Check performance
Check oil level
Check for leaks and wear
of connections
Change oil/filter
Check performance of pressure
limiting valve
Check flow limiting valve
Lubrication table
LUBRICATION KIND OF
POINTS LUBRICATOR
WHEELS AND ROLLERS Lithium grease NLGI-2
LIFTING CHAIR Lithium grease NLGI-2
MAST GUIDES Lithium grease NLGI-2
HYDRAULIC UNIT Oil viscosity 40ϒ C cSt32
EVERY
ELEMENT
3 Months 6 Months 12 Months
CYLINDER
ELECTRIC MOTORS
BATTERY
INSPECTIONS
CLEANING THE TRUCK: Clean the parts of the truck, except electrical and
electronic elements, with a damp cloth. Do not use direct jets of water, steam
or inflammable liquids. Clean electrical and electronic components with
dehumidified compressed air at low pressure (max. 5 bar) or with a non
metallic brush.
Use hydraulic oil apart from motor and brake oil. Note: When eliminating
EVERY
used oil please respect the environment. The oil should be stored in a
3 Months 6 Months 12 Months
drum that should be later consigned to the nearest petrol station. Do
not dump the oil in the ground or in unsuitable places.
11
CHECKS
3 Months
Check performance leaks and
wear of gaskets
Check pulleys
Check wear of brushes
Check starting motor relay
Check electrolyte density and level
(not necessary for gel batteries)
Check voltage of elements
Check anchorage and hold of terminals
Check cables
Grease terminals with Vaseline
Check connection to electrical
circuit earth
Check ascent and descent
speed of lifting forks
Check safety devices
Test raising and lowering with
nominal load
EVERY
6 Months 12 Months
