COMPOUND MITER CUTS

This is a combination of bevel crosscutting and mitering.
Refer to Figure 19 and follow the instructions for both bevel
crosscutting and mitering. Remember to use the right miter
slot on the right side of the blade for all bevel cuts.

LARGE PANEL CUTS

Place workpiece supports at the same height as the saw table
behind saw to support the cut workpiece, and alongside (s) of
saw, as needed. Depending on shape of panel, use rip fence or
miter gauge to control workpiece. If a workpiece is too large to
use either a rip fence or a miter gauge, it is too large for this
saw.

NON-THROUGH CUTS

The use of a non-through cut is essential to cutting grooves,
and rabbets. Non-through cuts can be made using a standard
blade having a diameter of 10 inches. Non-through cuts are
the only type of cuts that should be made without the blade
guard assembly installed. Make sure the blade guard assembly
is reinstalled upon completion of this type of cut.
• When making non-through cuts, follow all applicable
warnings and instructions listed below in addition to those
listed above for the relevant through cut.
• When making a non-through cut, blade is covered by
workpiece during most of cut. Be alert to exposed blade at
start and finish of every cut.
• Never feed wood with hands when making any non-
through cuts such as rabbets or grooves. Always use miter
gauge, push blocks or push sticks, and featherboards
where appropriate.
• In addition to this section, read the appropriate section
which describes the type of through or cut. For example,
if your non-through cut is a straight cross cut, read and
understand the section on straight cross cuts before
proceeding.

MAKING A NON-THROUGH CUT

• Once all non-through cuts are completed, unplug saw and
reinstall riving knife in raised position. Install anti-kickback
pawls and blade guard.
1.
Unplug saw.
2.
Unlock bevel lock.
3.
Adjust bevel angle to 0°.
4.
Lock bevel lock.
5.
Remove blade guard and anti-kickback pawls.
6.
Place riving knife in "lowered" position. See RIVING
KNIFE POSITION AND ALIGNMENT Section on page 33.
7.
Set blade to correct depth for workpiece.
8.
Depending on shape and size of wood, use either rip
fence or miter gauge.
9.
Plug saw into power source and turn saw on.
MAKING CUTS
90º
• Once all non-through cuts are completed, unplug saw and
return riving knife to through cut position. Install anti-
kickback pawls and blade guard.
• Carefully follow the instructions accompanying any
specialized blades for proper installation, set up and
operation.
10.
Let blade build up to full speed before moving
workpiece into blade.
11.
Always use push blocks, push sticks, and/or
featherboards when making non-through cuts to reduce
the risk of serious injury.
12.
When cut is made, turn saw off. Wait for blade to come
to a complete stop before removing workpiece.
13.
When cut is complete re-adjust riving knife to position
as detailed on page 33.
23

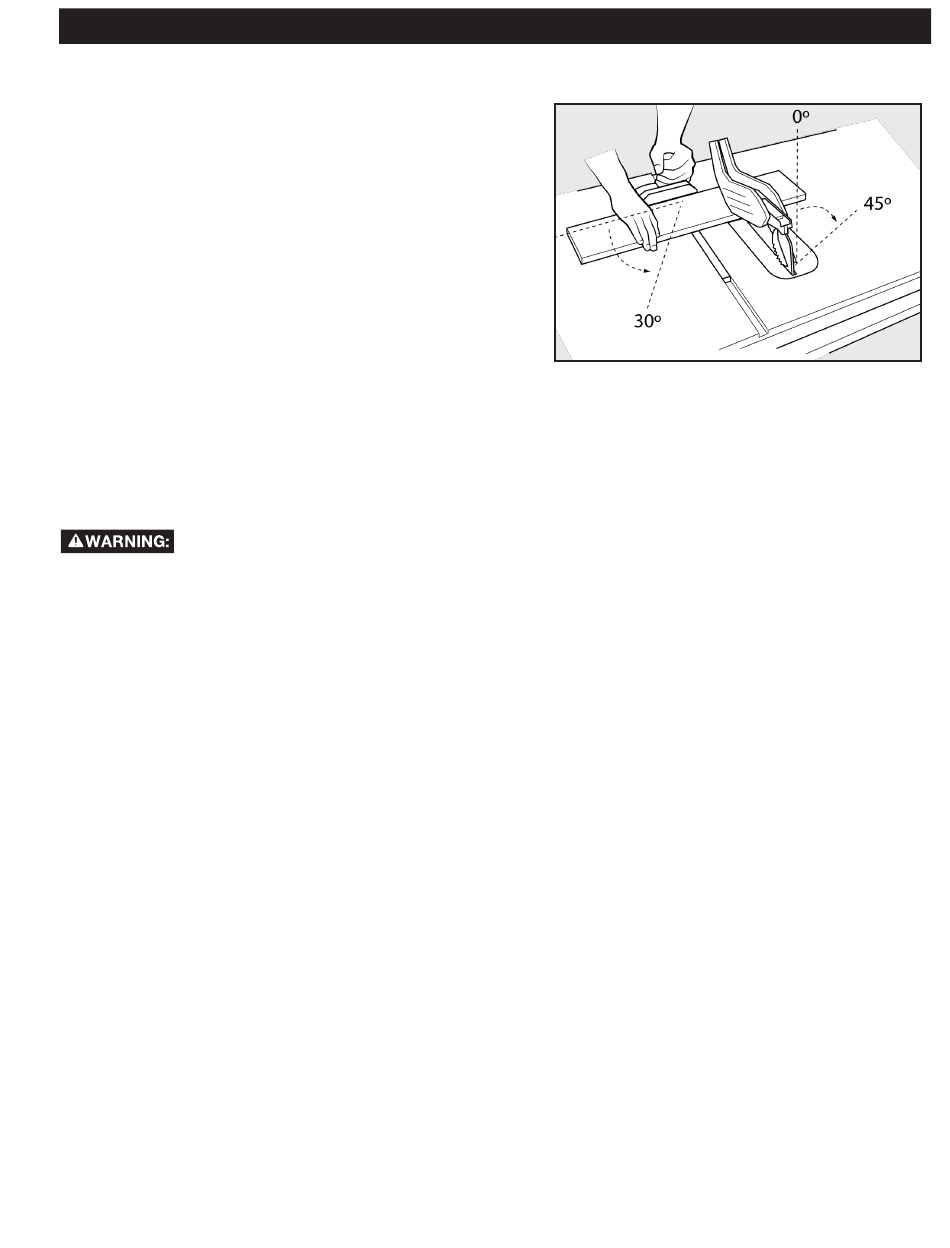

FIGURE 19
