Programming and consulting the schedule timer

Programming the schedule timer is flexible (you can add, remove or
alter programmed actions whenever required) and straightforward
(programming steps are limited to a minimum). However, before
programming the schedule timer, remind:
Familiarize yourself with the icons and the buttons. You will need
them when programming. Refer to "Remote controller buttons
and icons" on page 3.
Fill out the form at the very end of this manual. This form can
help you define the required actions for each day. Keep in mind
that:
- In the space heating program, depending on remote
controller model 4 or 5 actions can be programmed per
weekday. The same actions are repeated on a weekly basis.
- In the domestic water heating and quiet mode program,
depending on remote controller model 4 or 5 actions can be
programmed per mode. The same actions are repeated on a
daily basis.
NOTE Remote controller model: 4 actions
Remote controller model: 5 actions
Take your time to enter all data accurately.
Try to program the actions in a chronological way: start with
action 1 for the first action and end with the highest number for
the last action. This is not a requirement but will simplify the
interpretation of the program later.
If 2 or more actions are programmed for the same day and at the
same time, only the action with the highest action number will be
executed.
Example:
Programmed actions
Time Temperature
(hour) (°C)
1 16:00 — 22
2 18:00 — OFF
3 08:00 — 23
4 06:00 — 21
5 18:00 — 26
You can always alter, add or remove the programmed actions
later.
Operation manual
12
Executed actions
Time Temperature
(hour) (°C)
1 06:00 — 21
2 08:00 — 23
3 16:00 — 22
4 18:00 — OFF

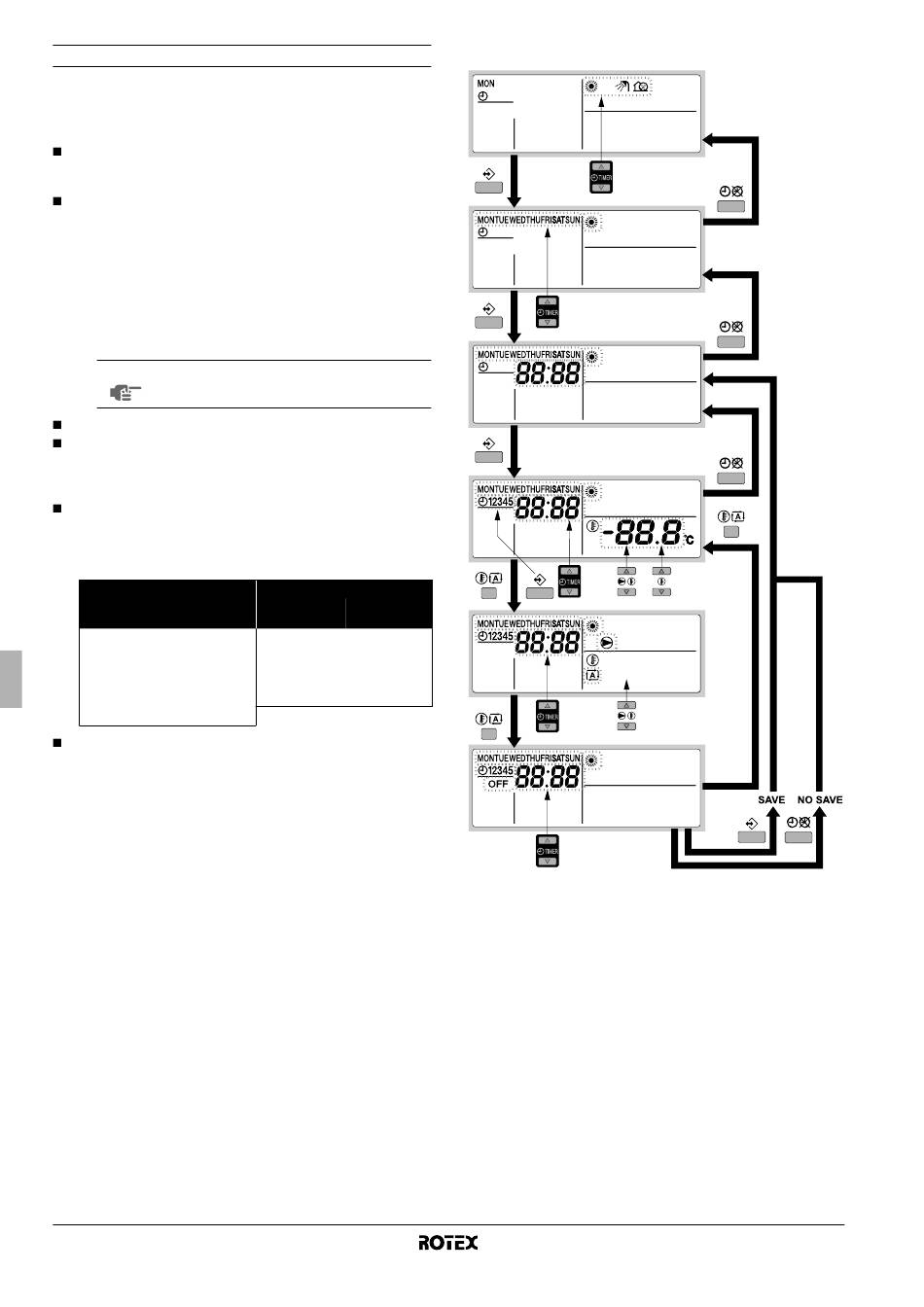

Programming space heating

5 sec
