A. Right-angled valve
B. In-line valve
A. Eckventil
B. Gerade durchgehendes Ventil
A. Vanne à angle droit
B. Vanne à écoulement rectiligne
© Edwards Limited 2007. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.

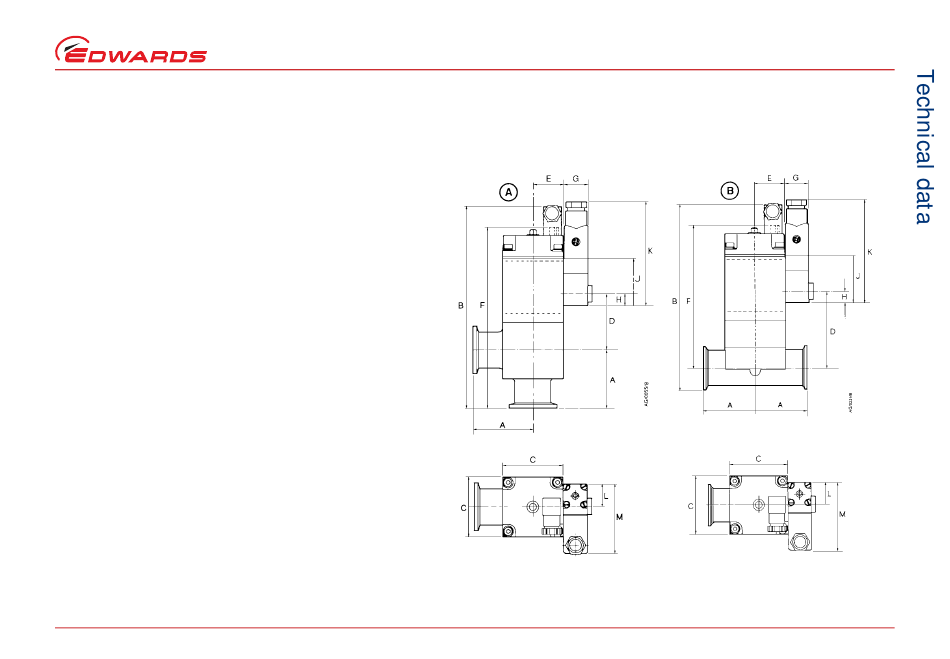

Figure 4 – Dimensions of PVPK valve with optional control valve
Abbildung 4 – Abmessungen des PVPK-Ventils mit optionalem Steuerventil
Figure 4 – Dimensions d'une vanne PVPK équipée en option d'une électro-vanne de commande
C411-11-885 Issue H/Ausgabe H/Version H
Page/Seite/Page 13
